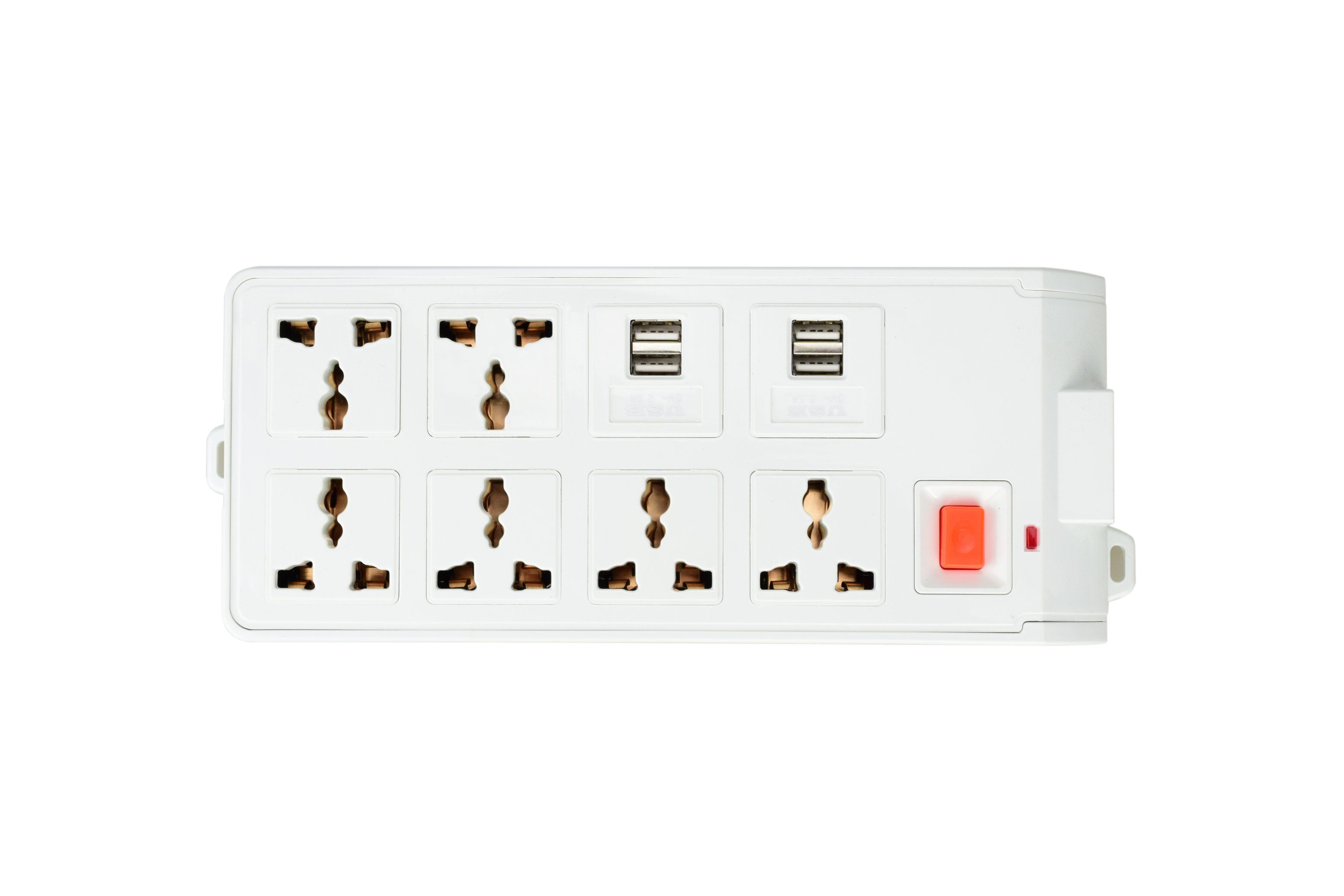

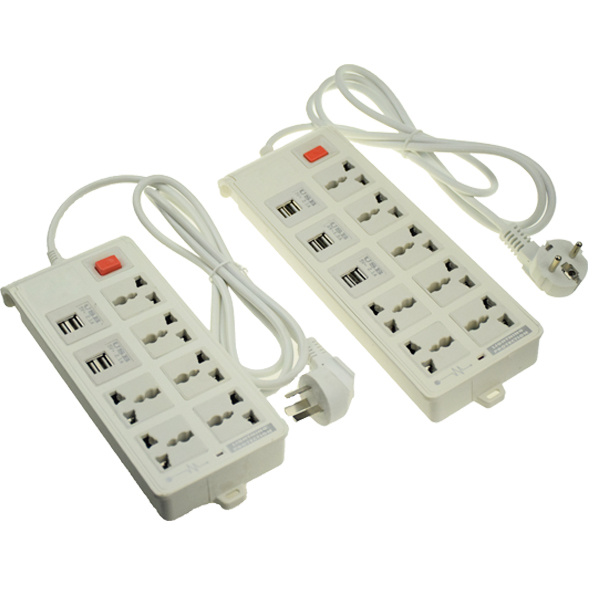

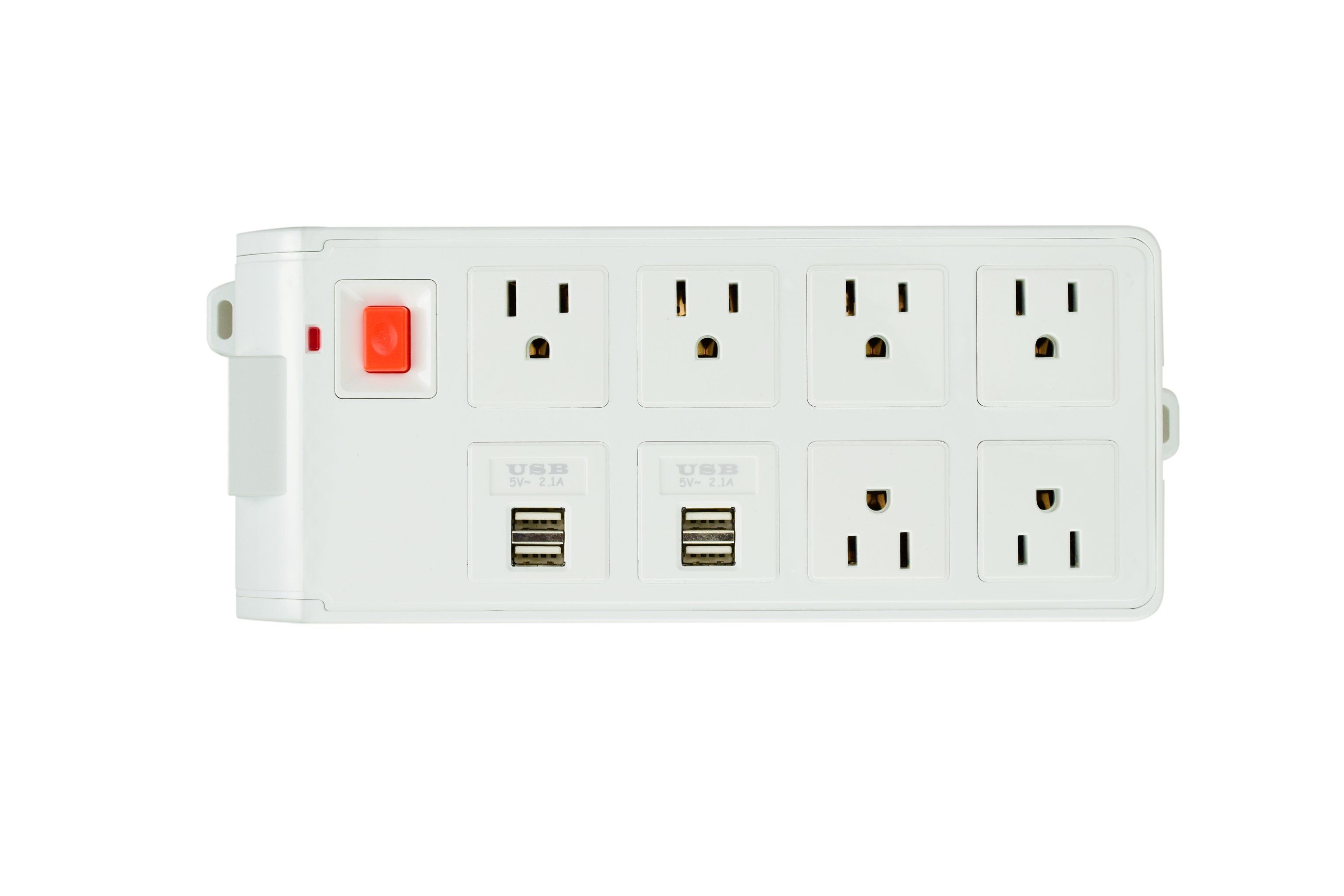

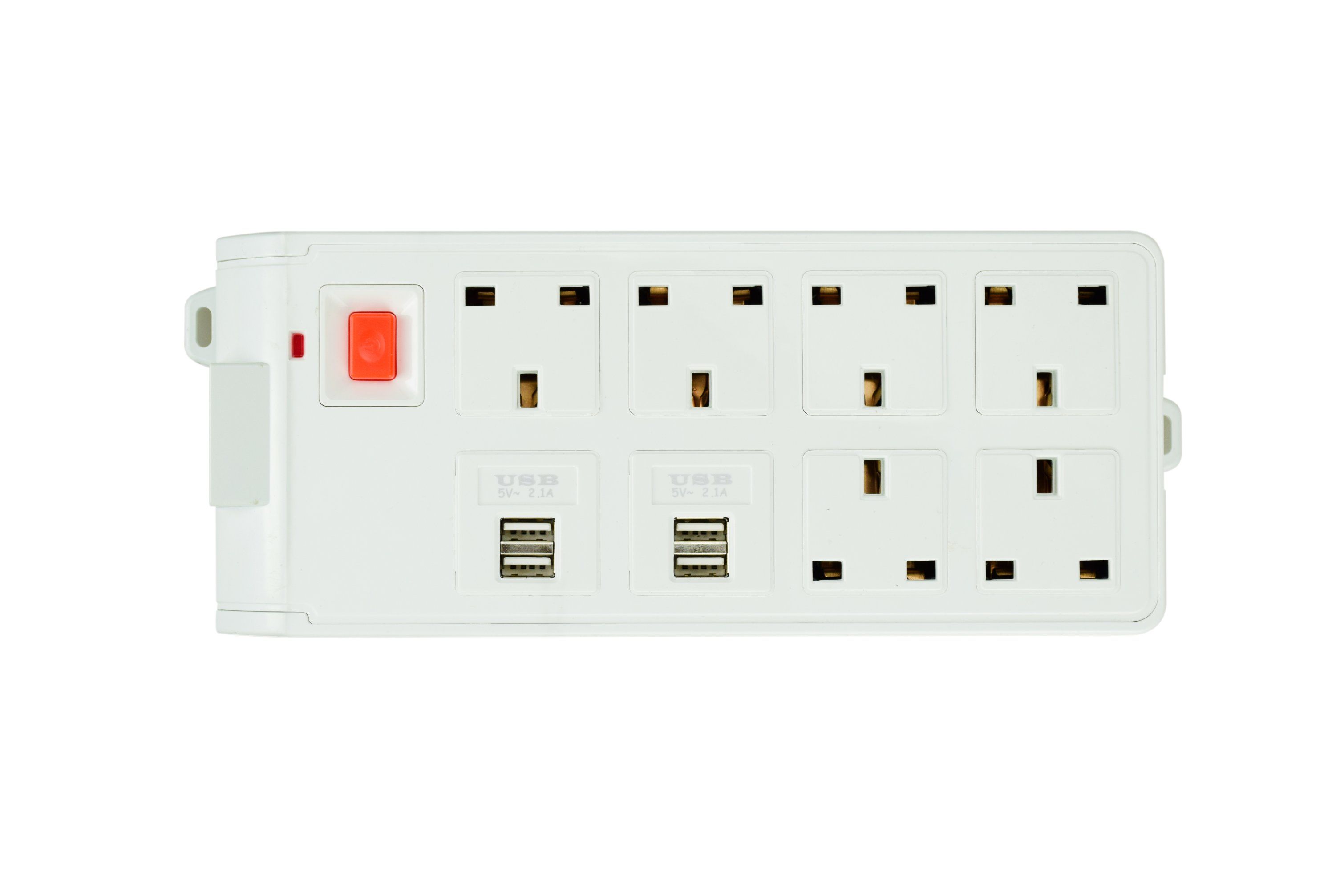

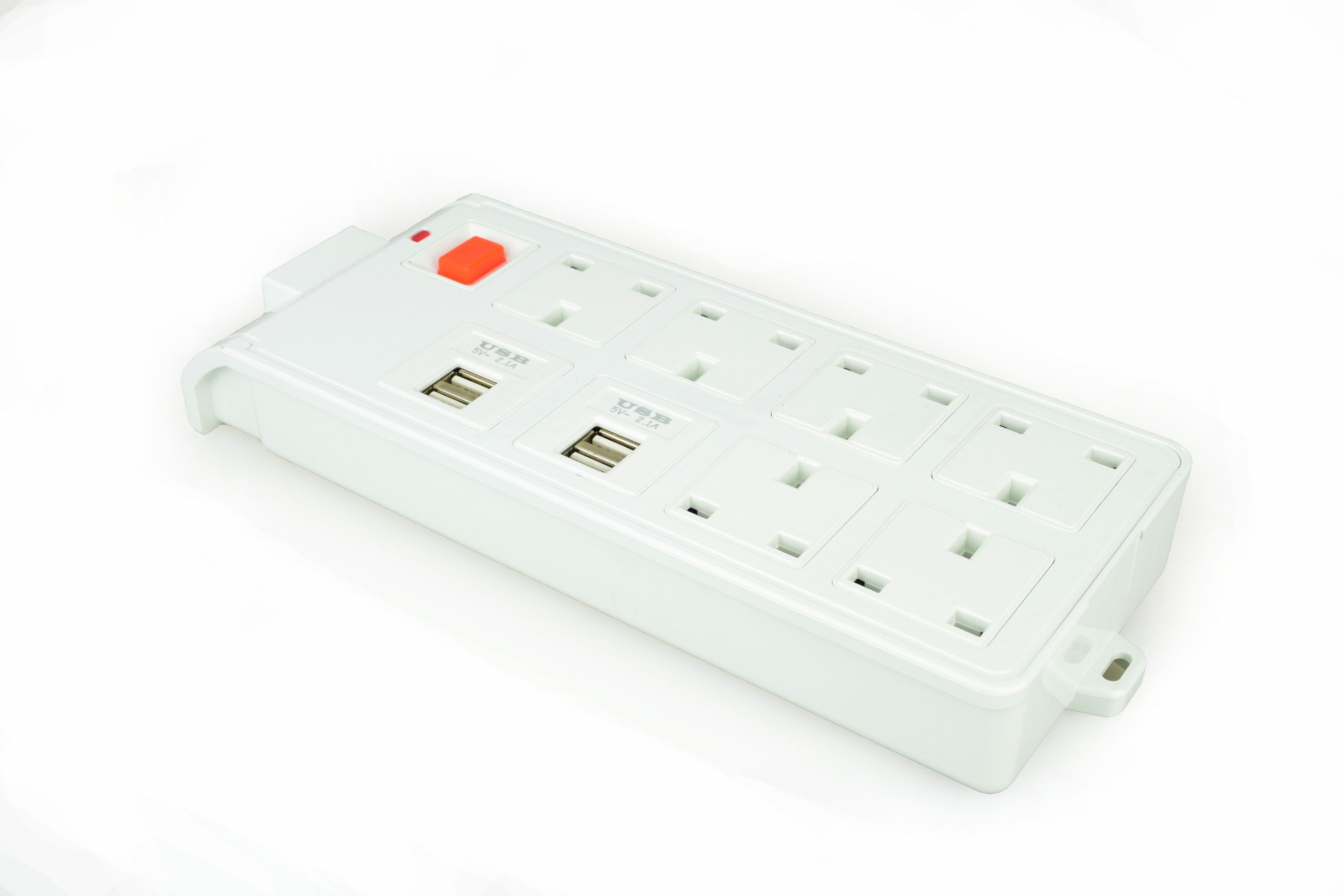

Power strip portable extention socket 6 USB and 4 AC port charger
Product Description
Electric Plug Socket | |
Model no. | YDSUPS6UN-521-4UB |
Product | UK plug socket with switch and LED lamp | |
Working voltage | 110-250V | |
Current | 10-15A | |
Power | 2500W | |
Outlet quantity | 6 outlets +4 USB (1.2A or 2.1A) charging ports (Or can choose different outlets and USB charging ports as you want ) |
Color | White, black(or according to the customer requested) | |
Material | ABS body, fireproof PA66, copper conductor | |
Cable | 3*0.75mm2 , 3*1mm2 and 3*1.5mm2 3m, 1-10m as requested | |
Plug and socket | DIN 49441 R2, DIN 49406 R, IEC 60884-1 | |
Certificate | CE, PCT&ROHS | |
Dimension | 266x96x33mm | |
Inner package | Blister card packing/OPP Bag, or as your requested | |
Outer package | 5 layer Carton | |
Regular Packing | 1PCS/Blister card packing/OPP bag | |
Surge protection | 15-amp circuit breaker |
Function | Overloading protector ,lightning protect , USB ,this function can be choice as your prefer | |
Features | 1. Internal connections with high-quality copper, good conductive properties, effectively preventing arc generated, not loose in normal use. | |
2. inner core is fireproof PA66, doesn't burn in 750° C high temperature. | |
3. Connections using high standard copper wire, well conducted, less heat, more secure in using | |
4. L&N double break switch with silver alloy contacts and LED indicator. | |
5. Unheated under 24 hours/day full load operation | |
6. Optimized copper structure ensure excellent insertion and Extraction performance. | |
Warning | 1.The total power connected to the electrical appliance can't be higher than the rated power. 2. Forbid to bind the wire together strictly when using so as to avoid abnormally overheat. 3. Please insert the plug into the jack absolutely. 4 .Please place it on where the children can't reach. 5. Please don't use it in damp environment. 6. Non-electrician should not dismantle the product by themselves. 7. Always have earth connections for safety reason. 8. Please plug into socket completely. 9. For your safety, please don't plug by wet hands. | |
Key Features:
1). LG PC Flame Retardant Material, Fire Protection Rating.
2). Over 40,000 Times Plug And Unplug Testing, 12 Years no any looseness..
3). Lightning strike, Over-Voltage And Over Current Protection.
Product Features:
1). Passed CE,RoHS,certificates.
2). LG Brand Flame Retardant PC Plastic, UL94V0 Fire Protection Rating.
3). Metal shrapnel adopt Phosphor Bronze ( Thickness :0.6-0.7mm,Wildth 6.3mm).Over 40,000 Times Plug And Unplug Testing, 12 Years no any looseness..
4). Based on Surge design, Lightning strike, Over-Voltage And Over Current Protection.
5). Built-In high Proformance intelligent IC charging module ,which has Over
Current / Voltage and short circuit Protection. Two USB Ports can auto identify the Loading . So as to
ensure the charging quality & Extend the Battery life.
6). Over 8 Hrs Burning Testing And USB Passed 3000V Safety Testing to Ensure the product quality.
Application
Installation Procedure and Attention:
Step 1, Cut off AC power, open the USB socket outlet faceplate, take down 2 screws with screw driver.
Step 2, According the connection diagram to wiring well: Plug the Red, Blue and Green wires into L,N, E
holes separately and then lock it tightly with screw driver.
Step 3, Flat place onto 86 type base socket, and screw tight two screws with screw driver, Close the
faceplate of USB socket.
Step 4, AC power on, to check the function of USB ports, connect mobile phone via USB cable into USB
port, the phone will detect the USB connection.
Step 5, Connect USB charger to smart products, the indicated LED onto smart products will be
illuminated, the battery show charging logo is normal, if no charging logo show out, please
double check the connection or change another USB cable to try. After battery is charged fully,
the indicated LED will be off.
Company Profile:
henzhen Yidashun Technology Co.,Ltd, founded in 2007, with our own brand "YDS", is a professional manufacturer of USB wall socket ,Power strip , metal Car charger , power supply for laptop/tablet/cctv/led/TV/poe/pos/modem/ etc.
With more than 300 workers, 12 automatic production lines, over 5000 square meters development and production base, our monthly output is 400,000~500,000 pieces.
Our company has a R&D team with 10 engineers, who can provide the whole solution of power adapters and power supplies for clients. Also, we have professional tests from material to finished products for each one to control the quality seriously.
Shipping
1. By express ,FedEx/DHL/UPS/TNT for samples,
Door-to-Door;
2. By Air or by Sea for batch goods, for FCL;
Airport/ Port receiving;
3. Customers specifying freight forwarders or
negotiable shipping methods;
4. Delivery Time: 3-5 days for samples; 5-20 days
for batch goods.
Payment Terms
T/T, Western Union, MoneyGram,PayPal;
30% deposits; 70% balance before delivery.
FAQ
1Q: Are you manufacturer, trading company or agent?
A:
We are professional manufacturer with 9 years experience in electronic industry since 2007 in Shenzhen, China.
2Q: Do you accept small quantity orders ?
A:
Yes, we accept small quantity sample orders for testing, but not for free, and customers should pay for samples and freight. However we can return back the costs once large quantity orders are set.
3Q: How about the quality of your products?
A:
Quality is the core. All of our products have OVP, OCP, OLP, OTP, SCP protection. CE CB ROHS FCC ERP are all approved by authoritative labs.
4Q: Do you accept OEM&ODM?
A:
OEM, ODM & Customized order are highly welcome. Customized Packing is also accepted.
5Q: How about the shipment and payment?
A:
Delivery time: usually 1 day for sample orders, within 3 days for small quantity orders, 5 to 7 days for large quantity orders.
Shippment: small quantity by express (DHL, UPS, FEDEX, TNT, EMS); bulk order by sea, urgent order via air to airport.
Payment: T/T(30% deposit in advance), L/C, Western Union, Money Gram and paypal.
6Q: How about your after-sales service?
A:
We accept replacement or refund within 30 days after you received the products for the original quality matters or other problems caused by us according to the sales contract.
