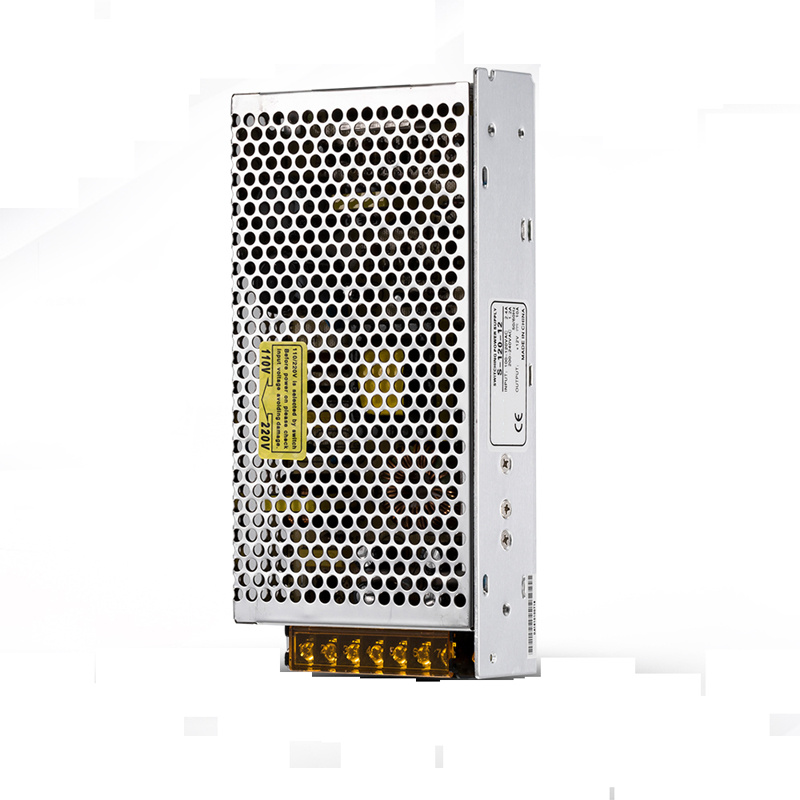

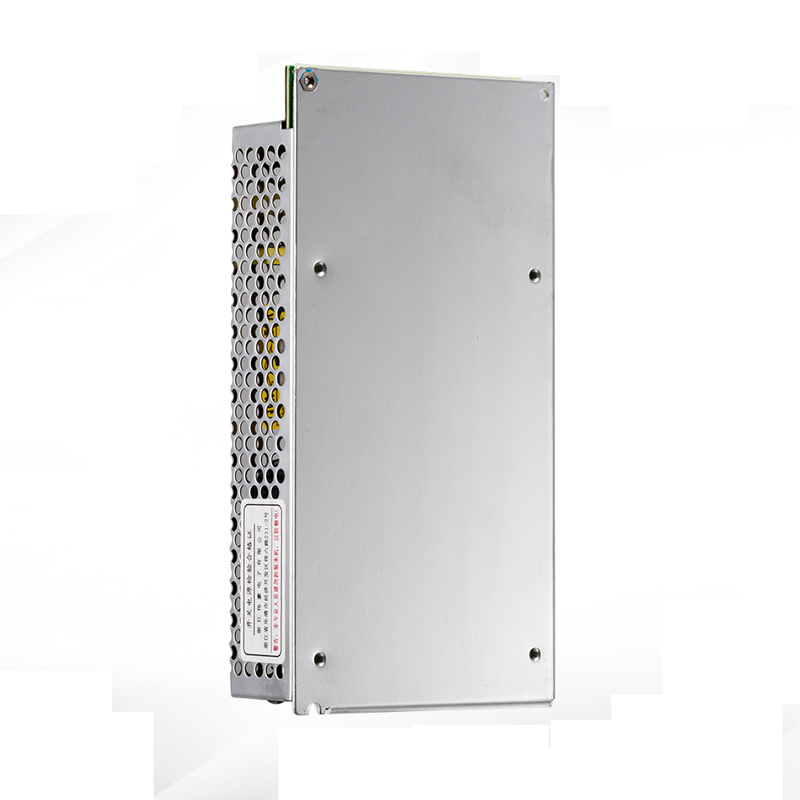

Power Supply 120W 12V 10A AC to DC Power Supply for LED Display Screen

Name: Power Supply 120W 12V 10A AC to DC Power Supply for LED Display Screen
Brand: all-electronics-online.com
SKU: 821041775
Availability: InStock
Rating: 5 (123 reviews)

Price:	Negotiable/Piece
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

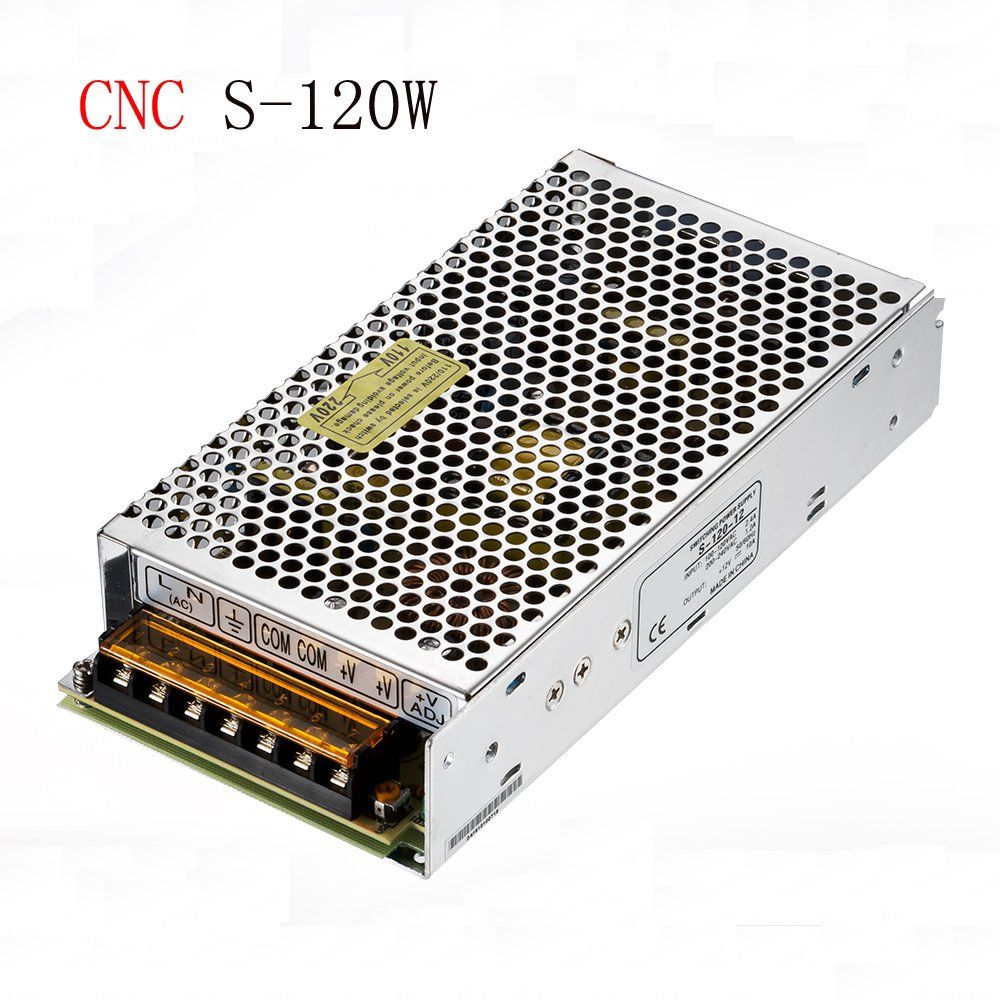

Prod Model:	S-120W
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CCC
Power Supplying System:	Power
Brand:	CNC

Product Description

Power Supply 120w 12v 10a ac to dc power supply for LED display screen

1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

Model	S-120-5	S-120-12	S-120-15	S-120-24
DC output voltage	5V	12V	15V	24V
Output voltage tolerance	±2%	±1%	±1%	±1%
Rated output current	24A	10A	8A	5A
Output current range	0-24A	0-10A	0-8A	0-5A
Ripple and noise	50mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.3%	±0.2%
Load stability	±1%	±0.5%	±0.3%	±0.2%
DC output power	120W	120W	120W	120W
Efficiency	79%	84%	85%	85%
Output voltage adjustment range	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~265VAC/47~63VAC,120~370VDC
Input current	0.6A/115V 0.35A/230V
AC impulse current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.75mA/240VAC
Overload protection	105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery
Over-voltage protection	115%~135% rated output power
Temperature coefficient	±0.03%°C(0~50°C)
Setup rise hold up time	800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C,20~90%RH
Store temperature and humidity	-20°C~+85°C,10~95%RH
Overall dimension	1999838mm / 30pcs per carton
Weight	0.6Kgs

WHY US?
1. We Are Suppler of Three Gorges Project,China National Petroleum,Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.

CNC Electric Group Co.,Ltd.
Add:CNC High-tech industrial zone, north Baixiang,Wenzhou, Zhejiang province, China.325603

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
