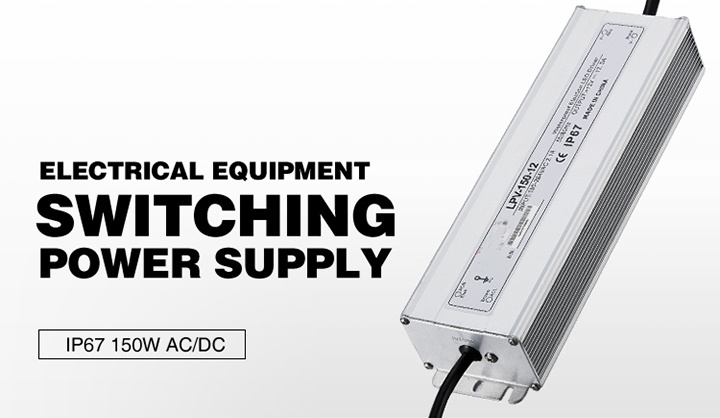

Power Supply 150W 12V 12.5A Waterproof LED Driver, IP67

Name: Power Supply 150W 12V 12.5A Waterproof LED Driver, IP67
Brand: all-electronics-online.com
SKU: 840169585
Availability: InStock
Rating: 5 (34 reviews)

Price:	US $ 19-21/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-150
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

150W waterproof Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty

Specifications:

power supply 150w 12v 12.5a waterproof LED driver

Model	LPV-150-12	LPV-150-15	LPV-150-24	LPV-150-48
Dc output voltage	12V	15V	24V	48V
Rated output current	12.5A	10A	6.5A	3.3A
Output current rage	0-12.5A	0-10A	0-6.5A	0-3.3A
Rated Power	150W	150W	156W	158.4W
Wave and noise	150mVp-p	240mVp-p	240mVp-p	240mVp-p
Efficiency	81.0%	83.0%	83.0%	84.0%
AC input voltage range	AC180~264V 47~63Hz;254~373VDC
Input current	2.1A/230V
AC INnrush current	Cold-start 30A/230V
Overload proctection	105%~150% Potection type: Hiccp mode, recobers automatically after condition recoverd
	Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time	1000ms,30ms/230VAC at full lod
Withstand voltage	I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG: 0.5KVAC
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature	-10°C~+50°C
Overall dimension	2456943mm
EMC standards	Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Weight	1.4Kgs

Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.

Our product range specified as following:

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.

Low voltage electrical products range including: Circuit Breaker, Contactors, Fuses, Relays, Push Button& Indicator Lamps, Switches, Power Supply, Distribution Box, Industrial Sockets& Plug, Terminals, Warning light, Electrical Accessories, Electric Power Fitting, Hardware & Tools, Construction Electrical, Lamps & Lighting, Meters & Instruments.

Quality is our life, all our products produce according to the international standard like IEC60898, IEC947-2. Most of our products have got ISO9001, CCC, CE certificates and some of our products have also passed CB, GS, KEMA, UL, VDE certificates. We have won high reputation for its good quality, accurate shipments and reasonable price.

We sincerely welcome customers to cooperate with us on basis of quality and mutual benefit. If you are interested in our 'products, please don't hesitate to contact with us, we will supply quick & satisfied reply.
