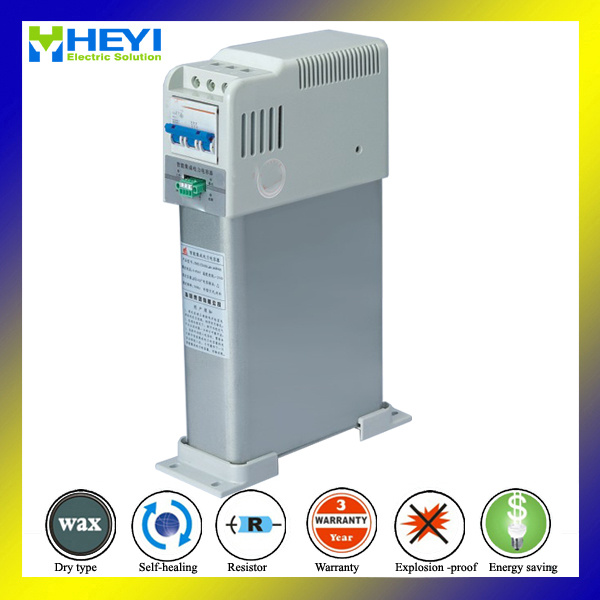

Power Supply Capacitor Intelligent Type Three Phase Power Compensate

Prod Model:	ZMZ-BDS/450V-20KVAR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Anti Rust Metal Sheet
Terminal Connection:	Anti Fire Bakelite
Power Supply Capacitor Function:	Reduce Reactive
Medium:	Wax Type Power Supply Capacitor
Release Electricity Time:	30 Second
Anti Explosion:	Explosion Device Inside
Power Supply Capacitor Type:	Self Healing Low Voltage
IEC Standard:	IEC60831
Phase:	Split Phase Power Supply Capacitor
Handle Sample Time:	5 Days
Type:	Polypropylene Capacitor
Application:	Power
Capacitance:	50-100uf
Package Type:	Surface Mount

Product Description

Power Supply Capacitor Intelligent Type Three Phase Power Compensate
*modular construction
*embedded switch module
*advanced control technology
*Protection switching oscillation technique
*human interface, convenient for operating

Power Supply Capacitor Intelligent Type Three Phase Power Compensate specification

	Series	power capacitor intelligent type reactive power compensate
(1)Environment condition	Ambient temperature:	-35~65°C (-25~45°C )
	Relative humidity:	0°C ,20-90%
	Atmospheric pressure:	79.5~106.0Kpa
(2) Protection deviation	Voltage:	≤0.5%
	Current:	≤1.0%
	Time:	±0.01s
(3) Power condition	Rated voltage:	200V or ~690V
	Allowable tolerance:	±20%
	Voltage waveform:	The sine wave,the total rate is not more than 5%
	Frequency:	48.5~51.5Hz
(4) parameters	Deviation:	The minimum capacity of 75%
	Time of capacitor switch:	10s
	Capacity:	one ≤(20+20)kvar
	Power dissipation:	<0.5w(cut off capacitor)   <1w(input capacitor)
(5) Safety requirements	Standard	DL/T842-2003 low voltage Shunt capacitor device
	rate:	≤0.1%/10000
(6)Reliability parameters	Control accuracy:	Allowed number of switch:1million times Capacitor run time decay
	Fault rate annual:	0.1%
(7)Measurement deviation	Voltage:	≤0.5%(during 80%~120% of rated voltage)
	Current:	≤1.0%(during5%~20% of rated current)  ≤0.5%(during20%~120% of rated current)
	Power factor:	±0.01


Power Supply Capacitor Intelligent Type Three Phase Power Compensate data sheet

Name	Structure	Capacitance (KVAR)	Type	Dimension(mm)L*W*H
Intelligent power capacitor	Three phase (triangle)	10*1	ZMZ-CS /450-15-1	395*78*215mm
		20*1	ZMZ-CS /450-20-1	395*78*260
		30*1	ZMZ-CS /450-30-1	395*78*300
		40*1	ZMZ-CS /450-40-1	395*78*300
		5*2	ZMZ-CS /450-5*2	415*80*225
		10*2	ZMZ-CS /450-10*2	415*80*225
		15*2	ZMZ-CS /450-15*2	415*80*280
		20*2	ZMZ-CS /450-20*2	415*80*280
Intelligent power capacitor	Single phase Y	5	ZMZ-DF/250-5	415*80*225
		10	ZMZ-DF/250-10	415*80*225
		15	ZMZ-DF/250-15	415*80*280
		20	ZMZ-DF/250-20	415*80*280
Special requirement can be made at the request of customers.

Power Supply Capacitor Intelligent Type Three Phase Power Compensate advantage
1.The use of industrial type high voltage power capacitor, oil free design, high safety;
2.The use of no inrush current switch, advanced technology, stable and reliable performance;
3.Using closed loop circuit, circuit is not saturated, no energy consumption, no electromagnetic radiation;
4.Using the technology and special technology, can suppress the harmonic and inrush current effectively, 5 ~ 9 harmonic suppression effect is obvious;
6.The modular structure, flexible combination, convenient expansion, simple installation, convenient maintenance;
Intelligent network, R S485 communication interface, can access the computer background, for distribution management;
7.The decentralized control mode, the 200000 non fault switching, high reliability,200000 non fault switching;
Humanized human-computer interface, simple operation, convenient maintenance, suitable for field troubleshooting;
8.SH in the explosion-proof device and temperature control device, improve the reliability of operation of serious harmonic under the place;
9.Significant energysaving effect, effectively improve the power factor, reduce electric energy consumption, improve the quality of electric energy.

Power Supply Capacitor Intelligent Type Three Phase Power Compensate function
1.The filter function
Capacitor switching state, the over and under repair state, over and under voltage protection action signal: the state type, fault self diagnosis type signal. To restrain harmonic and inrush current effectively, form a low impedance path on the harmonic. With the absorption of discharge effect on harmonic, can eliminate the influence of harmonic to capacitor, and capacitor overload protection circuitto prevent overheating, capacitor, dielectric aging insulation, self-healing performance degradation, reduction of service life.
2.No surge switching function
With the special capacitor switch with, no switching surge current.
3.Protection function
The loop current speed cutting, over-current protection: capacitor over voltage,under voltage protection; capacitor over temperature, phase failure, three-phase unbalance protection, when the capacitor temperature exceeds 65 degrees, theexit running capacitor protection, improve service life, ensure the safe operation of the system.
4.The signal function
Capacitor switching state, the over and under repair state, over and under voltage protection action signal: the state type, fault self diagnosis type signal.

capacitor markings for self heal shunt power capacitor intelligent type reactive power compensate  Payment terms
1. 30% T/T advance , the balance against to the copy B/L or LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.

Power Supply Capacitor Intelligent Type Three Phase Power Compensate Packing information
1. Inside foam package ,outside strong paper package
2. 3pcs/per CTN
3. G/N.W: 20/19kg
4. We can packing as your required,good looking design

Why choose Power Supply Capacitor Intelligent Type Three Phase Power Compensate
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 50000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
