Name: Power Supply Choke Coil Inductor
Brand: all-electronics-online.com
SKU: 727683012
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 0.07-4.04/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	1 to 500 W
Type:	Fixed Inductor
Structure:	Inductive Choke
Brand:	Tce

Product Description

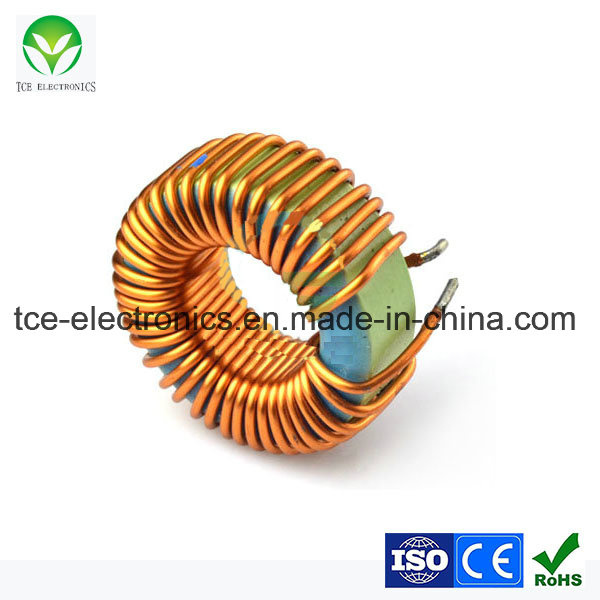

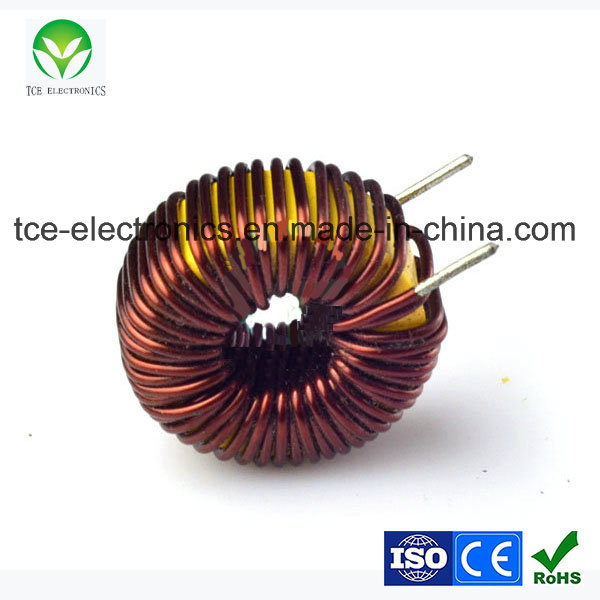

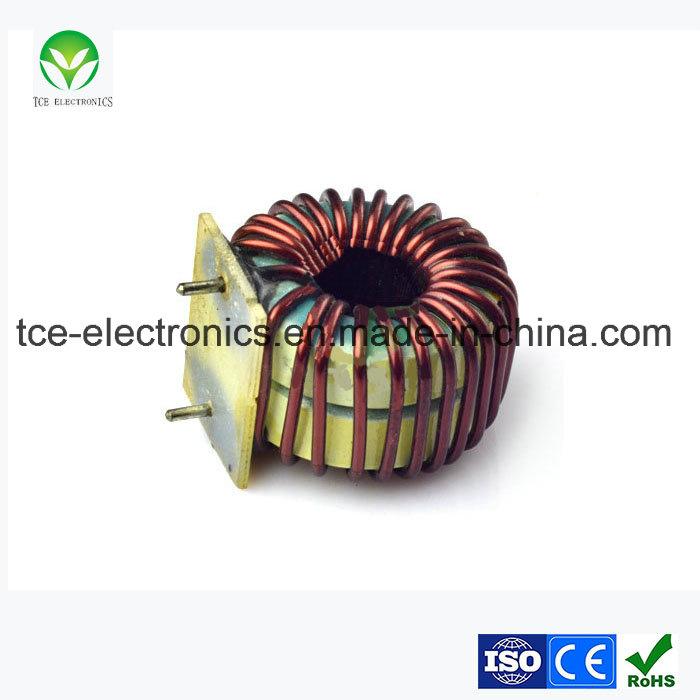

Iron core magnetic ring coil appearance.

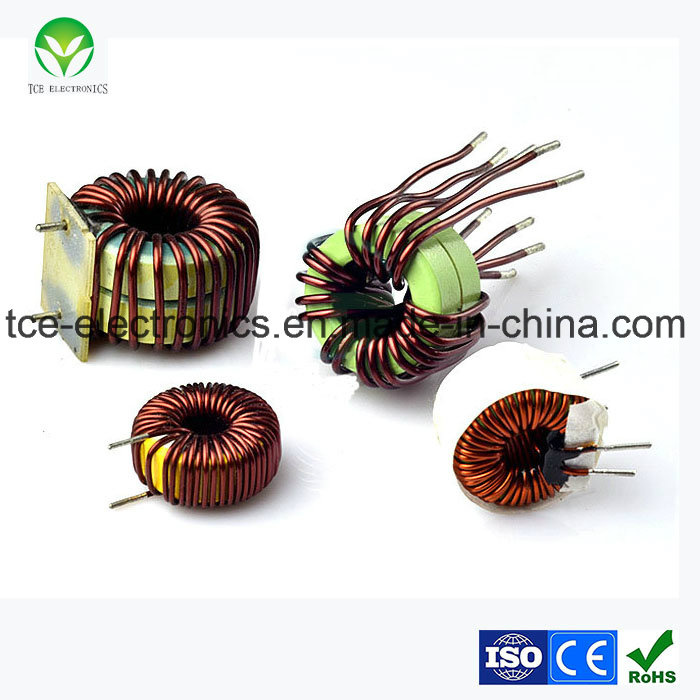

Above are our company's common products' styles drawing, and other special styles are not included. More models and types are available. Welcome your spec and sample to make custom-manufacturing.
Size: external diameter from 30 to 400D (Note: OD 7.8mm to 102mm).
Material: -2 material (red / transparent), -8 material (yellow / red), -18 (green / red), -26 (yellow / white), -28 (grey / green), -33 (grey / yellow), -38 material (gray / Black), -40 (green / material yellow), -45 (black), -52 (green / blue).
Iron core coil
1. Working frequency:50Hz-5MHz
2. Output power:1 to 500 W
3.workind temperature:-40ºC to +200ºC
4.storage temperature:-25ºC to +50ºC
5.storage humidity:30 to 95%

Application of iron core magnetic ring coil
Mainly used in high frequency release converter, power conversion output in converter, EMI noise filter, pulse transformer, DC output / input filter, dimming up converter, power factor correction (PFC), continuous state inductor fly back inductor etc.

Characteristics of iron core magnetic ring coil
It is composed of 100% iron powder added with organic or inorganic binder, and its bias performance is the highest in all powder magnetic core materials. The market is often referred to as Iron Powder or iron core magnetic ring
Iron core is characterized in that: the production process is simple compared with the other raw materials, the cheapest, and has good magnetic properties, is the four series of soft magnetic metal powder core used in the largest and most extensive one. From the E10 -2 material, iron core to E75, -26, -52 and other materials of iron powder core, applicable to a variety of different occasions. There are ferrite doped composite iron core amount to do, has high permeability, on some occasions can make up for the defects of iron cores and low permeability

We are a professional manufacturer specializing in custom-designed transformers and inductors. Our products category are such as high frequency transformer, power transformer, power transformer, common mode inductor, inductor, magnetic ring inductor, linear filters, magnetic inductors, magnetic ring transformer, I-shaped inductor, magnetic inductors, air core coil, coil, vibration oscillation coil, winding inductance coils, etc

Core category are as below. Cron core, iron silicon aluminum, ferrite, amorphous strip, sendust cores, ferrosilicon powder core, high flux magnetic powder core, iron nickel iron nickel molybdenum powder core, high permeability ferrite, zinc, nickel, manganese zinc soft magnetic, permanent magnet and soft magnetic metal and so on

Magnetic bar P/N: 3*12, 3*15, 3*20, 4*15, 4*16, 4*20, 5*15, 5*20, 5*25, 6*20, 6*25, 6*30, 8*30, 15*150, etc

I-shaped inductor P/N: 0406 0507 0608 0810 0912 1010 1012 1016 1313 1618 1517, etc.

Ring: Ring size(outer diameter, inner diameter, thickness) Common mode magnetic coil and magnetic ring filter. Common mode inductor loop(ring): 6*3*3, 9*5*3, 10*6*5, 12*6*4, 13*8*7, 14*8*7, 18*10*8, 22*14*8, 25*15*13, 31*19*13, etc

Magnetic ring, inductor coil, inductor, magnetic ring: 3026, 3052, 4426, 4452, 5026, 5026B, 6026, 6826, 6826A, 6026D, 6052D, 6052, 8026, 8026B, 9026, 9426, 10626, 13026, 15026, 15726, 18426, etc.

Linear filters: UU9.8/UF9.8 UU10.5/UF10.5 UU16/UF16; UT20/ET20 UT24/ET24 UT28/ET28 ET35.

High frequency transformer P/N: EE8.3, EE10/EI10, EE13/EI13, EE16/EI16 EE19/EI19 EE20/UU21 EE21 EE22/EI22/EE25/EI25/EE28/EI28/EI30/EE30/EI33/EE33/EE35/EI35/EE40/EI40/EE55/EE65/EE85/EE110

EE Series: EEL16/EEL19/EEL22/EEL25

ER Seris: ER24/ER25/ER28/ER35/ER39/ER40/ER42/ER45/ER49

EF Series: EF12.6/EF15/EF16/EF20/EF25/EF35

EFD\EFT Series: EFD15/EFD20/EFD25/EFD30/EFT43/EFT45/EFT46

EP. EPC POT Series: EP07/EP10/EP13/EP17/EPC13/EPC19/EPC27/EPC46/POT14/POT30/POT33

ETD Series: ETD29/ETD34/ETD44/ETD49/ETD54/ETD59

PQ Series: PQ20/PQ2016/PQ2020/PQ2620/PQ2625/PQ3220/PQ3230/PQ3235/PQ3535/PQ4040/PQ50/PQ5050

RM Series: RM04/RM06/RM05/RM08/RM10/RM12/RM14

Application: Switching mode power supply, LED driving power supply, Power module, Industrial equipment, Liquid crystal display, Charger, digital camera, Portable computer, communication network, etc electronics equipment.

Product model are complete with quick delivery time and High quality and low price. We can design and produce products according to our customers' requirement.
