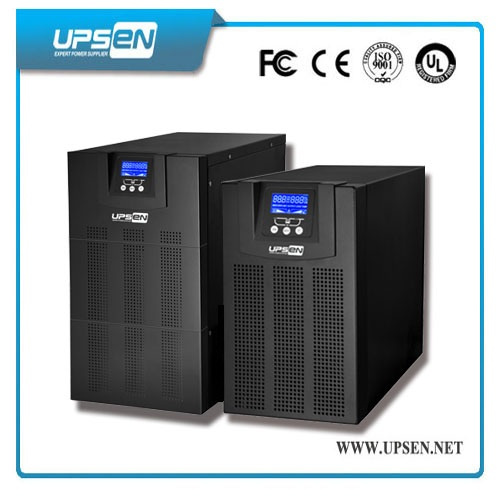

Power Supply Double Conversion High Frequency Online UPS

Power Supply Double Conversion High Frequency Online UPS
Price: US $ 1-200/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Queen Star Series
Advantages: IGBT, Isolation Transformer
Interface: Smart RS-232
Battery: Inside/External
Temperature: 0c~40oc
Phase: Single Phase
Type: On-line
Protection: Overvoltage
Brand: Upsen

Product Description

Power Supply Double Conversion High Frequency Online UPS
Model: High Frequency Online UPS Queen Star Series 6-20 Kva (1ph in/1ph out)

Key Features:
1:Input Power Factor Correction
2:Optional Emergency Power Off (EPO)
3:Built-in AVR (Automatic Voltage Regulator)
4:Complete protection for UPS and battery
5:Optional Extended Battery Banks & Chargers
6:DSP Double-Conversion On-line Sinewave Design
7:Easy to Install & Easy to Operate & Easy to Solve
8:Superior Brownout, Surge & Transient Protection
9:Smart RS232 communication with monitoring software
10:Low initial investment and flexible for future expansion
11:LCD Display with Advanced Monitoring for Easy UPS Management
12:Online double conversion • IGBT inverter and output isolation transformer

Technical Specification
Queen Star Series Q6K-20Kva
ModelQ6KQ6KLQ10KQ10KL31Q10KL31Q15KL31Q20KL
Capacity6KVA/4800W10KVA/8000W15KVA/12KW20KVA/16KW
InputNominal Voltage220/230/240Vac380/400/415Vac
Voltage Range176~276Vac (1P2W+G)304~478Vac (3P4W+G)
Current 31A (max)50A (max)50A (max)75A (max)100A (max)
Frequency46~54Hz/56~64Hz
Power Factor≥0.99
OutputVoltage220/230/240± 2%Vac  (1P2W+G)
Frequency50/60Hz(adjustable)                                                                                      50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode)
Current 27.3A45A68A91A
Power Factor0.8lag
WaveformPure Sine Wave
Waveform DistortionLine load <2%Line load <3%
Back-up TimeFull Load≥7′Depends on external batteries bank's Capacity≥5′Depends on external batteries bank's Capacity
Half Load≥20′≥13′
Battery Nominal Voltage192/240Vdc
Transfer Time0ms
Overload Capacity >105% 1min, >120% 30s transfer to bypass, shut down in 1min
CommunicationSNMP,RS-232,USB+Intelligent Slot
Operating EnvironmentTemperature0C~40ºC
Humidity15%~90%
DimensionWidth (mm)260260260260260
Depth (mm)560533560533560
Height (mm)717501717501717
Net Weight(Kg)68187020283030
*Specification are subject to change without prior notice
