| Prod Model: |
RV24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mechanical Point Of View: |
300c+/-5c |
| Electrical Angle: |
280c+/-10c |
| Outer Diameter: |
20mm |
| Rated Power: |
2W |
| Life: |
100000 Times |
| Haft Diameter: |
6mm |
| Resistance: |
Variable Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
SMD Resistor |
| Material: |
Metal Film Resistor |
| Package Type: |
Throught Hole |
| Type: |
Rotary Potentiometer |
| Shape: |
Round |
| Brand: |
L&G |
Product Description

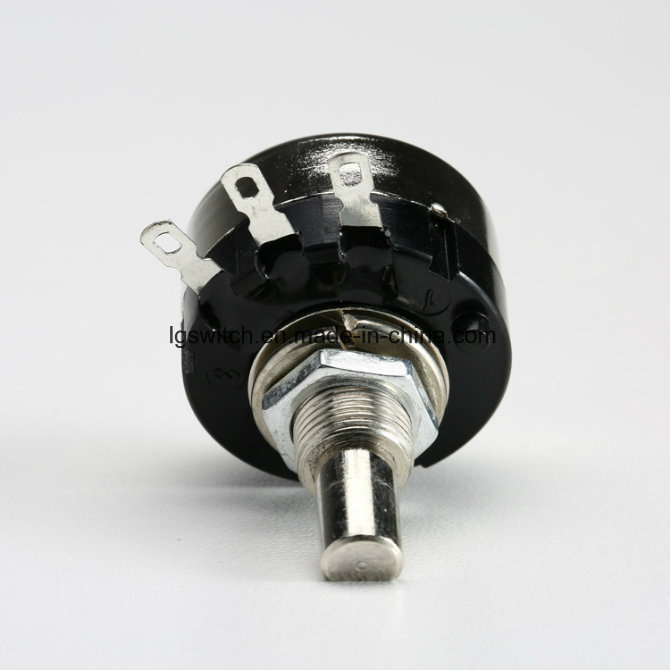

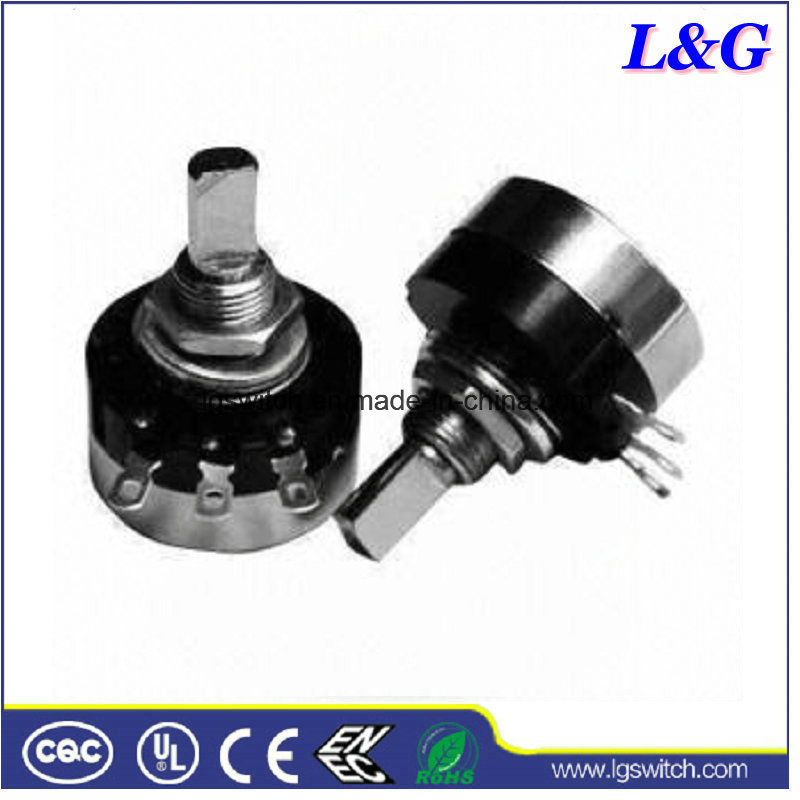

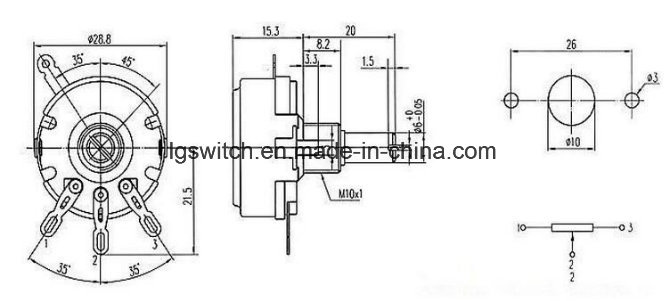

Axial length 20mm Shaft diameter 6mm Outer diameter 20mm 2W power Rotary Potentiometer
B taper at 0.25W, A and C taper at 0.125W±10% Tolerance50 to 2M ohms availableRotational angle: 280° ± 10°Mechanical travel: 300° ± 5°Rotational life: 15,000 cyclesTemperature range: -10 to +85Fasten bushing: M9 x 0.75Solder lug terminal typeDimension: 24.6mm x 13.5mmRoHS-compliant version availableAny quality problems within one year, shifting, long shelf life so you do not have to worry about!
Spot resistance of 100 Euro, 200 Euro, 500 Euro, 1K, 2K, 5K, 10K, 20K, 50K, 100K, 250K, 500K, 1M.
| Total resistance | 5KΩ (there 500Ω - 1MΩ) |
| Resistance deviation | ± 10% |
| Power | 2W |
angle | 280 ° electrical angle ± 10 ° |
| Mechanical angle | 300 ° ± 5 ° |
| Lifetime | 100 000 times |
| Outer diameter | 24mm |
| Shaft length | 20mm |
| Shaft diameter | 6mm |
Product Description Promotion Rotary Potentiometer - 10k Ohm B103
1.) Mechanical specifications:
a.) total rotational angle: 300±10°
b.) rotational torque: 20~200gf.cm
c.) click position is available
d.) rotation stop strength: 8kgf.cm Max
e.) residual resistance: Max 10 ohm
2.) Electrical specifications:
a.) total resistance range: 500 ohm <= R <= 1M ohm ± 10%
500 ohm >= R >= 1M ohm ± 30%
b.) resistance taper: A, B, C, D
c.) power rating: 0.2 w
d.) Max. operating voltage: AC 500 V
e.) rotational noise: less than 47 m
f.) insulation resistance: 50M ohm or more
g.) withstanding voltage: 500V AC for 1min
h.) rotation life: 15,000 Cycles Min
Any quality problems within one year, shifting, long shelf life so you do not have to worry about!
Spot resistance of 100 Euro, 200 Euro, 500 Euro, 1K, 2K, 5K, 10K, 20K, 50K, 100K, 250K, 500K, 1M.
Total resistance ............................................... 5KΩ (there 500Ω - 1MΩ)
Resistance deviation .............................................. ± 10%
Power ................................................. ..... 2W
.............................................. 280 ° electrical angle ± 10 °
Mechanical angle ............................................... 300 ° ± 5 °
Lifetime ................................................. ....... 100 000 times
Outer diameter ................................................ .......... 24mm
Shaft length ................................................ ............ 20mm
Shaft diameter ................................................ ......... 6mm
Product characteristic :
Knob it is an edge with one or a series of label of the common circular protrusion, disc or dial,
can be rotated or push pull, to start and to manipulate or control something. (such as radio or television).
It has plastic knob, baklite knob, aluminium knob,metal knob etc.
Sample:
1. Free charge sample: Could provide(less than 5 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
|
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.
Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.
After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
