Power Tools Solar Powered Systems Sealed Lead Acid Battery

Prod Model:	4v4.5ah(2FM4.5)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black or Orange
Terminal:	F1/F2
Capacity:	4.5ah@20hr-Rate to 1.75V Per Cell@25oc
Weight:	0.48kg/1.058lbs
Size:	L47.5*W47.5*H101(Th106)mm
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	4V
Discharge Rate:	Low Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable

Product Description

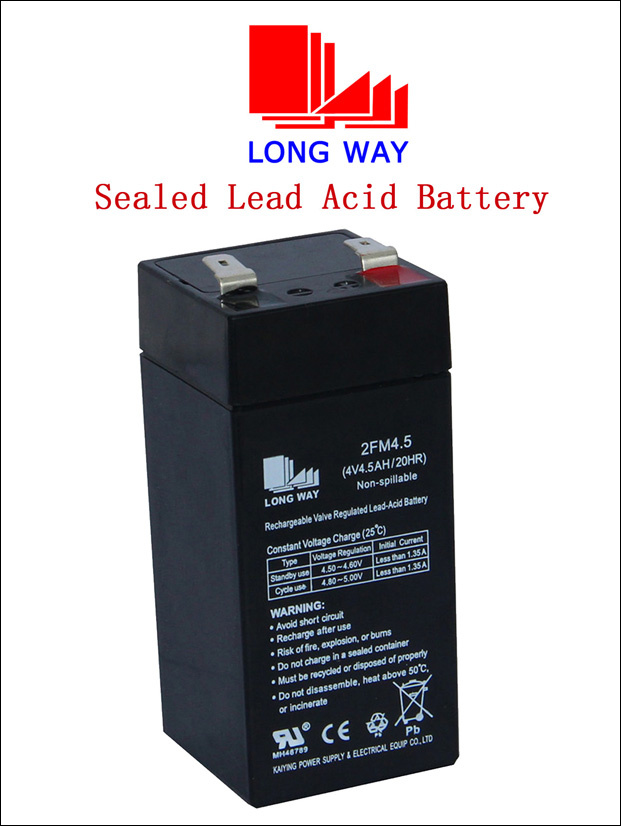

LONGWAY 4V4.5 rechargeable sealed lead acid battery

LONGWAY® Standard battery is design for a general purpose by KaiYing Power.
    2FM4.5 is a general purpose battery up to 5 years in float service ormore than 260
Cycles at 100% discharge in cycle service.As with all LONGWAY® Batteries, all are
rechargeable highly efficient, leak proof And maintenance free.

Specifications:

Cells per Unit	2
Normal Voltage	4V
Capacity	4.5Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx. (0.48±3%)kg(1.058lbs)
Maximum Discharge Current	45A(5sec)
Internal Resistance	Approx. 22mΩ full charged @25ºC
Operating  Temperature  Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating  Temperature Range	25ºC±3ºC(77ºF±5ºF)
Float Charging Voltage	4.5~4.6VDC/unit Average @25ºC
Maximum Charging Current	1.35A
Equalization and Cycle Service	4.8V~5.0VDC/unit Average @ 25ºC(
Self Discharge	Self-discharge ratio less than 3%per month at 25ºC.
Terminal	F1(0.187)/F2(0.250)
Container Material	ABS(UL94-HB)  *Flammability resistance of (UL94-V0) can be available upon request

Applications:
² Alarm systems, Cable television, communications equipment, control equipment,
² Computers, electronic cash registers, electric test equipment,
² Electric powered bicycle and wheel chair,
² Emergency lighting systems, fire&security, geophysical equipment,
² Marine equipment, medical equipment,
² Micro processor based office machines, portable cine&video lights,
² Power tools, solar powered systems,
² Telecommunications systems, television&video recorders, toys,
² Uninterruptible power supplies, vending machines;

General Features
Ø Stable quality&high reliability               Ø Sealed construction
Ø Environmentally friendly                        Ø Maintenance-free operation
Ø Low pressure venting system             Ø Heavy duty grid
Ø Low self discharge                                Ø UL component recognition(MH46789)

For more information, please contact us and welcome you! !
