Power Transformer, Distribution Transformer & Power Transformer, 30kVA~150mva

Name: Power Transformer, Distribution Transformer & Power Transformer, 30kVA~150mva
Brand: all-electronics-online.com
SKU: 820038625
Availability: InStock
Rating: 4.5 (56 reviews)

Price:	US $ 1000-25000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Application:	Electronic
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Certification:	SGS
Brand:	Shenhong

Product Description

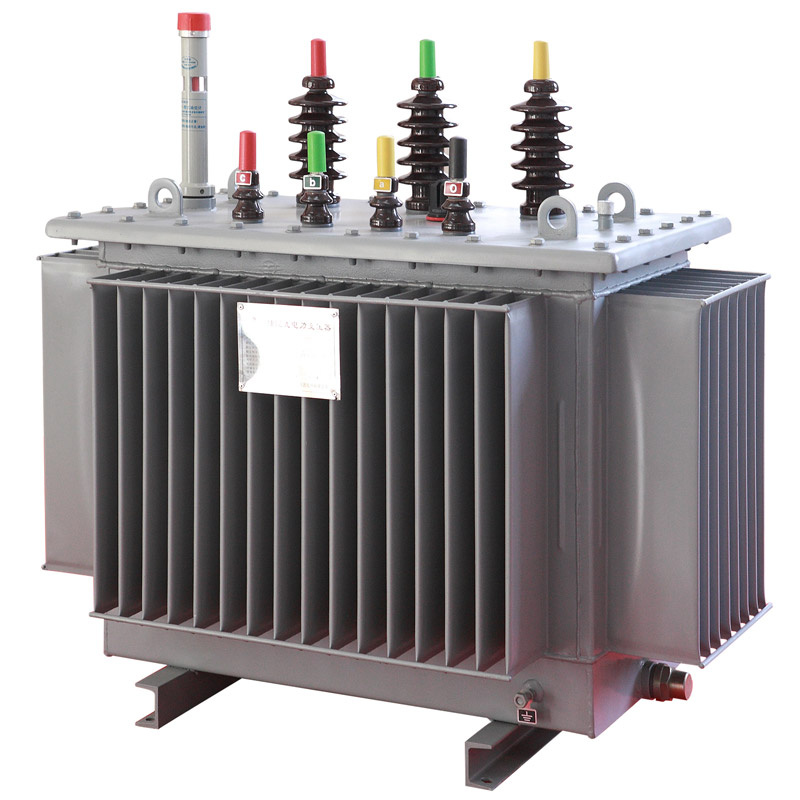

S11/S13 series of oil immersed transformers with obvious energy saving effect, can be widely used in industry and agriculture of urban and rural power grid.

The core can be laminated or rolled by high technology, Improving no-load performance and reducing noise.

The iron core is made of high quality cold-rolled silicon steel sheet to reduce iron loss, while the varnished wire is made of high purity oxygen free copper to reduce the copper loss.

Parameter(S13-30~1600/10 Oil-immersed transformer)
Rating (kVA)	HV (kV)	LV (kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses (120ºC)	short-circuit impedance(%)	Track Distance	Body weight (kg)	Oil (kg)
Rating (kVA)	HV (kV)	LV (kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses (120ºC)	short-circuit impedance(%)	Track Distance	Body weight (kg)	Oil (kg)
30	6 6.3 10 10.5 11 ±5% or ±2×2.5%	0.4	Dyn11 Yyn0 Yzn11	1.4	80	630/600	4	400.0	140	55
50				1.3	100	910/870			210	75
63				1.2	110	1090/1040			260	75
80				1.1	130	1310/1250			290	80
100				1.1	150	1580/1500			330	90
125				1.0	170	1890/1800			350	95
160				0.9	200	2310/2200		550.0	450	110
200				0.8	240	2730/2600			530	130
250				0.8	290	3200/3050			620	150
315				0.7	340	3830/3650			680	160
400				0.7	410	4520/4300			850	190
500				0.6	480	5410/5150			1000	210
630			Dyn11 Yyn0	0.6	570	6200	4.5	660	1150	280
800				0.5	700	7500		660	1440	320
1000				0.5	830	10300		820	1480	360
1250				0.4	970	12000			1780	400
1600				0.4	1170	14500			2220	440

Founded in 1992, Anhui Shenhong Transformer Co., Ltd. Has been the strategic partner of SGCC (State Grid Corporation of China ) for 15 years.

We are also a qualified supplier of China Southern Power Grid Corporation. There is a long-term partnership between Shenhong and many provincial power companies of Anhui, Henan, Hebei, northern Hebei, Shandong, Jiangxi, Jiangsu, Hubei etc.

We have passed through ISO9001: 2008 quality management system, ISO14001: 2004 environmental Management System.

Company registered capital is 80 million RMB.

Factory area covers 60 acres, possessing 200 sets of advanced production equipment.

We have 200 staff and workers, having the capacity of designing, development, and production.

Annual production capacity is 3 million kVA,

Main products:

10KV oil immersed transformers: S11, S13-30 ~ 1600/10 series stacked core, three-dimensional triangular wound core distribution transformers;

10KV dry type transformers: SG10, SG11, SCB10, SCB11-30 ~ 2500/10 dry-type transformers; KS11 mining transformers and various special variants;

10KV amorphous alloy core transformer: SH15-30 ~ 2500/10 of amorphous alloy transformer;

SH17-30-2500 / 10 shell-type amorphous alloy transformer;

Box-type transformer substation: ZGS11-Z (H) -50 ~ 1600/10 series (American type); YB (W) -12 / 0.4-50 ~ 1600/10 seires (European type);

35kV off-circuit tap changing distribution transformer: S11, S9 -50-2500kVA/35 series;

35kV on-load tap changing power transformers: SZ11, SZ9-/00 ~ 20000kVA/35 series;

Other transformers: Traction transformers and other special transformers.
