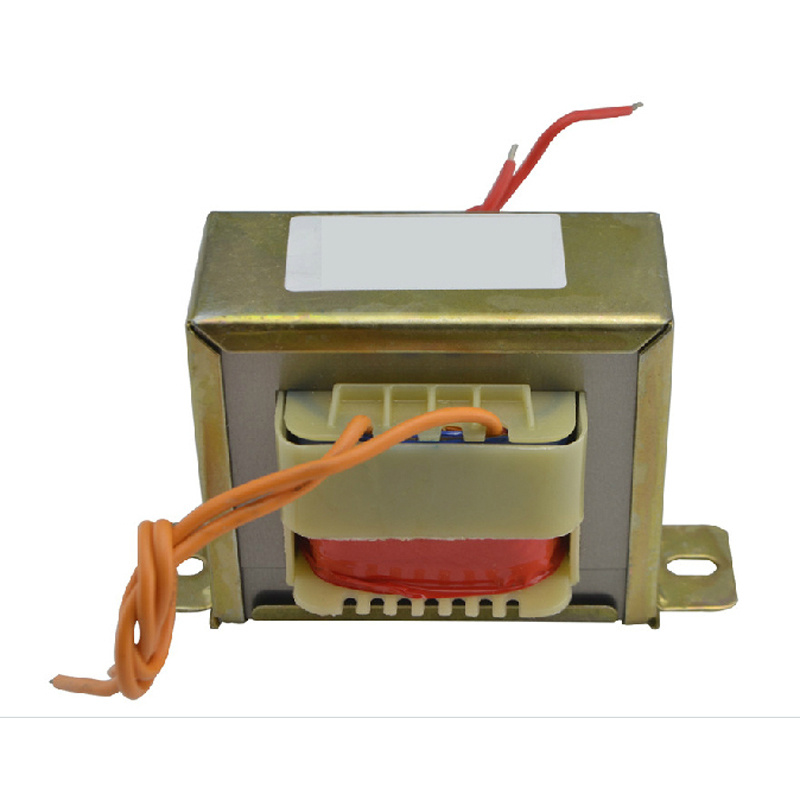

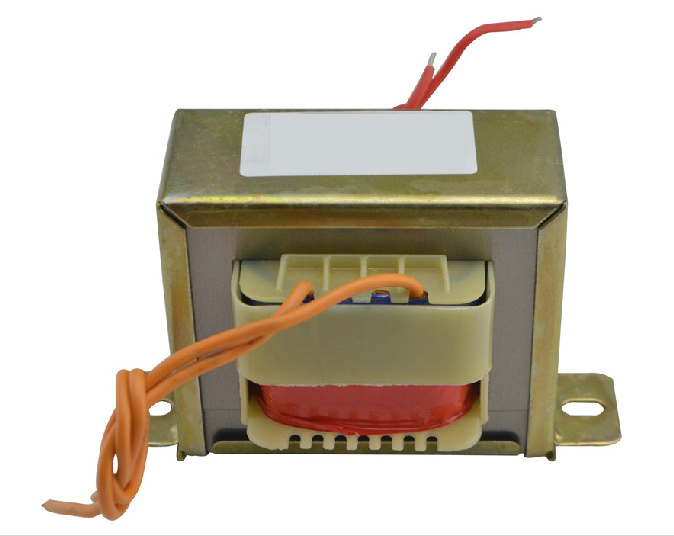

Power Transformer Ei /UL, CE

Prod Model:	EI TRANSFORMER
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electronic
Type:	Voltage Transformer
Phase:	Single

Product Description

Power Transformer

POWER:1W-50W
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. Capacity up to 12.0VA
2. Non short-circuit-proof at temperature class ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Certified item quality tested

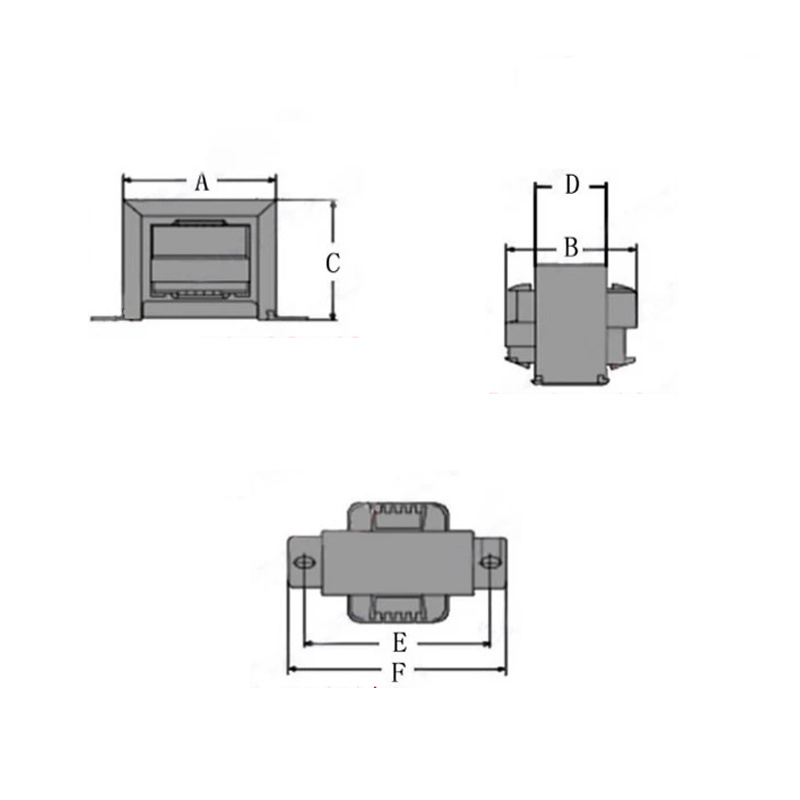

EI POWER TRANSFORMER DATA DETAILS
POWER	FERRITE CORE	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	WEIGHT(kg)
1W	EI 28*14	30	25	27	15	42	52	0.06
2W	EI 35*15	37	33	32	17	47	58	0.12
3W	EI 41*15	43	36	36	17	54	64	0.18
5W	EI 41*20	43	41	36	22	56	67	0.22
8W	EI 48*20	50	40	44	22	61	75	0.3
10W	EI 48*24	50	45	44	26	61	74	0.36
13W	EI 48*28	50	50	44	30	61	74	0.4
15W	EI 57*25	60	51	51	27	72	85	0.52
20W	EI 57*30	60	56	51	32	72	88	0.62
25W	EI 57*35	60	61	51	37	72	90	0.82
30W	EI 66*28	69	54	57	30	80	94	0.81
40W	EI 22*38	70	63	57	40	82	95	1
50W	EI 66*44	70	74	57	46	83	98	1.16
