Luoyang Da Yuan Cable Factory Co., Ltd. >> Power Transmission Line Electrical Power Cable AAC Cable

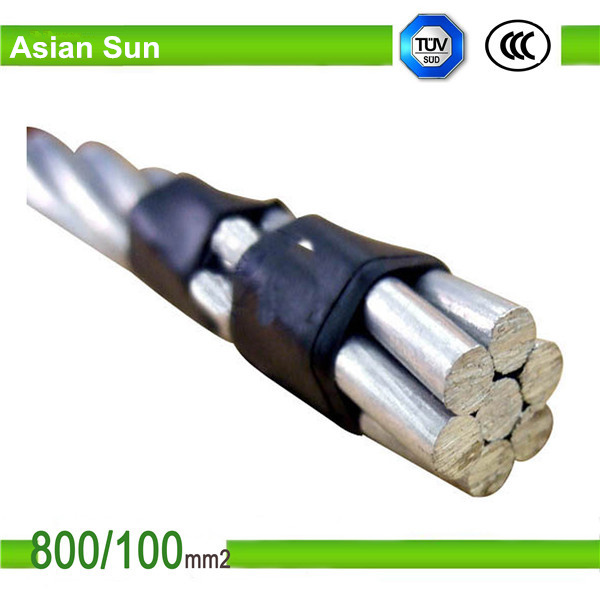

Power Transmission Line Electrical Power Cable AAC Cable

Power Transmission Line Electrical Power Cable AAC Cable
Price: US $ 0.45-45/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: AAC-Dayuan-4
Name: Power Transmission Line Electrical Power Cable AAC
Type: Bare
Conductor Type: Stranded
Application: Overhead
Conductor Material: Aluminum
Certification: CCC
Sheath Material: Bare
Insulation Material: Bare1
Range Of Application: Overhead
Brand: Dayuan

Product Description

Power Transmission Line Electrical Power Cable AAC Cable

Standards:

Enterprise Standards, IEC,BS 215-1,AS 1531 ,JIS,ASTM,DIN,AS/NZS,GOST 839-80 and etc. upon request.

Constructions:

Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Outer layer is right hand lay and reversed in successive layers.

Applications:

AAC conductor is also known as aluminium stranded conductor, This product is suitable for electric transmission line overhead.

Specifications:

Australian Standard BS 215 AAC 1350

Nominal Cross-sectional Area(mm2)
Code NameNumber Of WireWire Diameter (mm)Appro.overall Diameter(mm)Appro.Weight (Kg/km)Rated Strength(KN)Max.D.C.resistance Of Conductor At 20ºC(Ω/km)
22MIDGE72.066.18643.991.227
50ANT73.109.301458.280.5419
60FLY73.4010.201749.900.4505
100WASP74.3913.7129016.000.2702
150HORNET193.2516.2543425.700.1825
200CHAFER193.7818.9058732.400.1349
250COCKROACH194.2221.1073140.400.1083
300BUTTERFLY194.6523.2588848.750.08916
400CENTIPEDE373.7826.46114563.100.06944

Company Information:

Luoyang Da Yuan Cable Factory Co., Ltd.is a professional leading manufacturer in the field of wires and cables, was established in 2006 of China. We have been specialized in producing wires and cables for several years which can be applied in many areas, our main products are power cable, solar cable, and overhead line cable like ACSR, AAC, ABC cable, control cable, transformer, and aluminum wire rod. We have advanced automatic production lines. Besides, we can provide the raw material of aluminum cable as well, thus our price is very competitive and reasonable.

Contact us:

Max Shang (Sales Manager)
Luoyang Da Yuan Cable Factory Co., Ltd.
Tel: +86-0379-69991591
Mobile: +86-13803889574




Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.

Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
