Power Wire Cable with PVC Sheath Cover Jacket, Electric Wire Cable with Conduct Electricity Function

Name: Power Wire Cable with PVC Sheath Cover Jacket, Electric Wire Cable with Conduct Electricity Function
Brand: all-electronics-online.com
SKU: 810633095
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Application:	Construction
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	CE
Model:	BV
Brand:	Yongkuntai

Product Description

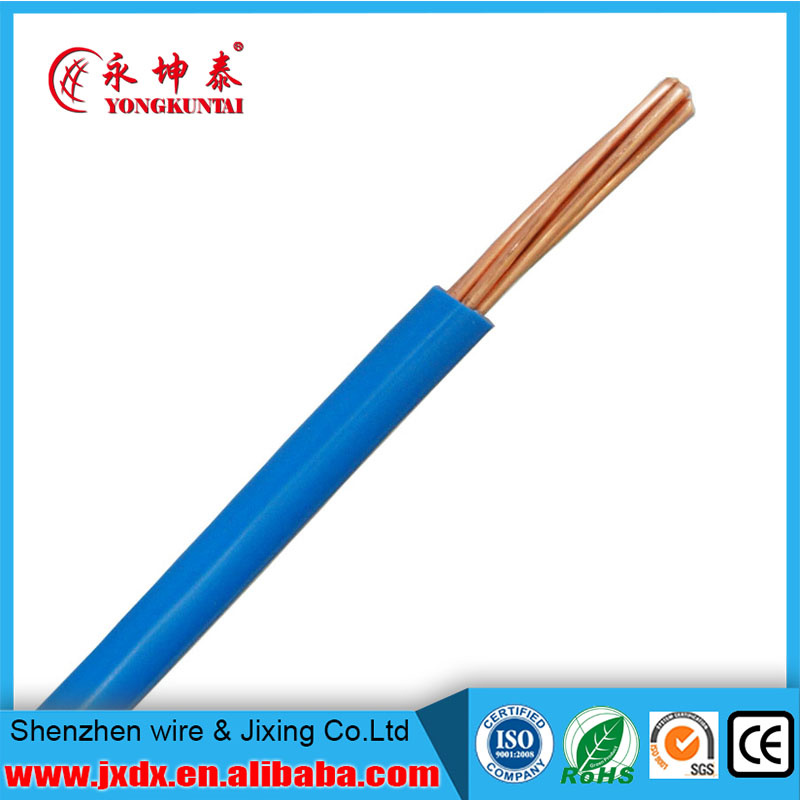

BV power wire cable with PVC sheath cover jacket , electric wire cable with conduct electricity function

Model	Rated Voltage	Normal area (mm)	Overall diameter (mm)	Weight (KG)	Conductor Resistance rate Not more than at 20 centigrade (Ω/km)	Wire core structure Cores/Diameters (mm)
BV	300/500V	0.5	2.4	8.5	36.0	1/0.80
BV	300/500V	0.75(A)	2.6	11.1	24.5	1/0.97
BV	300/500V	0.75(B)	2.8	12.0	24.5	7/0.37
BV	300/500V	1.0(A)	2.8	13.9	18.1	1/1.13
BV	300/500V	1.0(B)	3.0	15.0	18.1	7/0.43
BV	450/750V	1.5(A)	3.3	20.3	12.1	1/1.38
BV	450/750V	1.5(B)	3.5	21.6	12.1	7/0.52
BV	450/750V	2.5(A)	3.9	31.6	7.41	1/1.78
BV	450/750V	2.5(B)	4.2	34.8	7.41	7/0.68
BV	450/750V	4(A)	4.4	47.1	4.61	1/2.76
BV	450/750V	4(B)	4.8	50.3	4.61	7/1.04
BV	450/750V	6(A)	4.9	67.0	3.08	7/1.35
BV	450/750V	6(B)	5.4	71.2	3.08	7/1.70
BV	450/750V	10	7.0	119	1.83	7/2.14
BV	450/750V	16	8.0	179	1.15	7/2.52
BV	450/750V	25	10	281	0.727	19/7.18
BV	450/750V	35	11.5	381	0.524	19/2.14
BVR	450/750V	2.5	4.2	34.7	7.41	19/0.41
BVR	450/750V	4	4.8	51.4	4.61	19/0.52
BVR	450/750V	6	5.6	73.6	3.08	19/0.64
BVR	450/750V	10	7.6	129	1.83	49/0.52
BVR	450/750V	16	8.8	186	1.15	49/0.64
BVR	450/750V	25	11.0	306	0.727	98/0.58
BVR	450/750V	35	12.5	403	0.524	133/0.8
BVR	450/750V	50	14.5	553	0.387	133/0.68
BVR	450/750V	70	16.5	764	0.268	189/0.68

BVR Type 450/750V Copper Core PVC Insulation Electrical wire cable
Conductor norminal area (mm)	Conductor core	insulated norminal thickness (mm)	Conductor resistance Ω/km at 20 °C		Min. insulation resistance at 70°C MΩ.KM	Average outer diameter upper limit
Conductor norminal area (mm)	QTY/Single core norminal diameter (mm)	insulated norminal thickness (mm)	copper core	Tinned copper core	Min. insulation resistance at 70°C MΩ.KM	Average outer diameter upper limit
2.5	19/0.41	0.8	7.41	7.56	0.011	4.2
4	19/0.52	0.8	4.61	4.7	0.009	4.8
6	19/0.64	0.8	3.08	3.11	0.0084	5.6
10	49/0.52	1	1.83	1.84	0.0072	7.6
16	49/0.64	1	1.15	1.16	0.0062	8.8
25	98/0.58	1.2	0.727	0.734	0.0058	11
35	133/0.58	1.2	0.524	0.529	0.0052	12.5
50	133/0.68	1.4	0.387	0.391	0.0051	14.5
70	189/0.68	1.4	0.268	0.27	0.0045	16.5

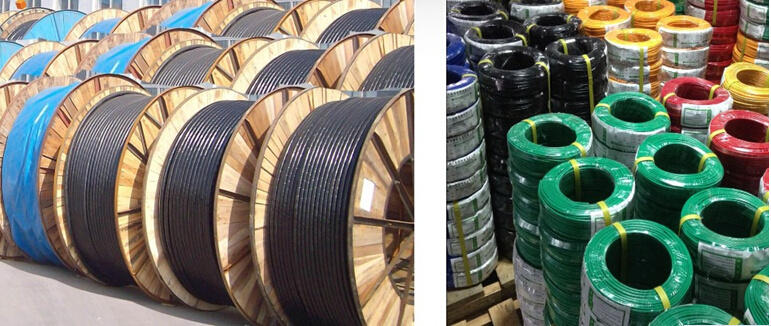

Our Packing:

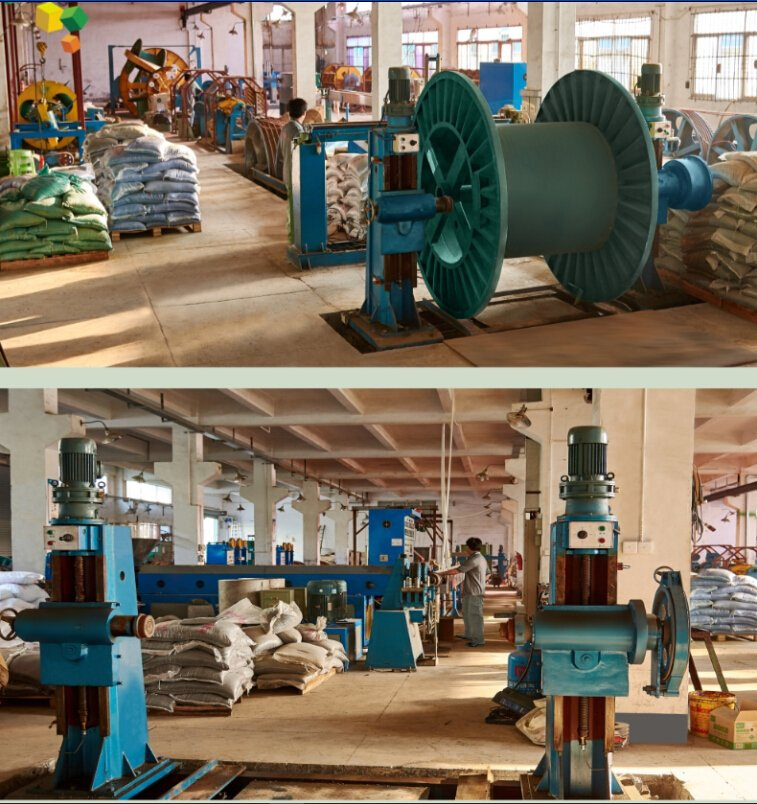

Our factory:

Our customers:

Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.

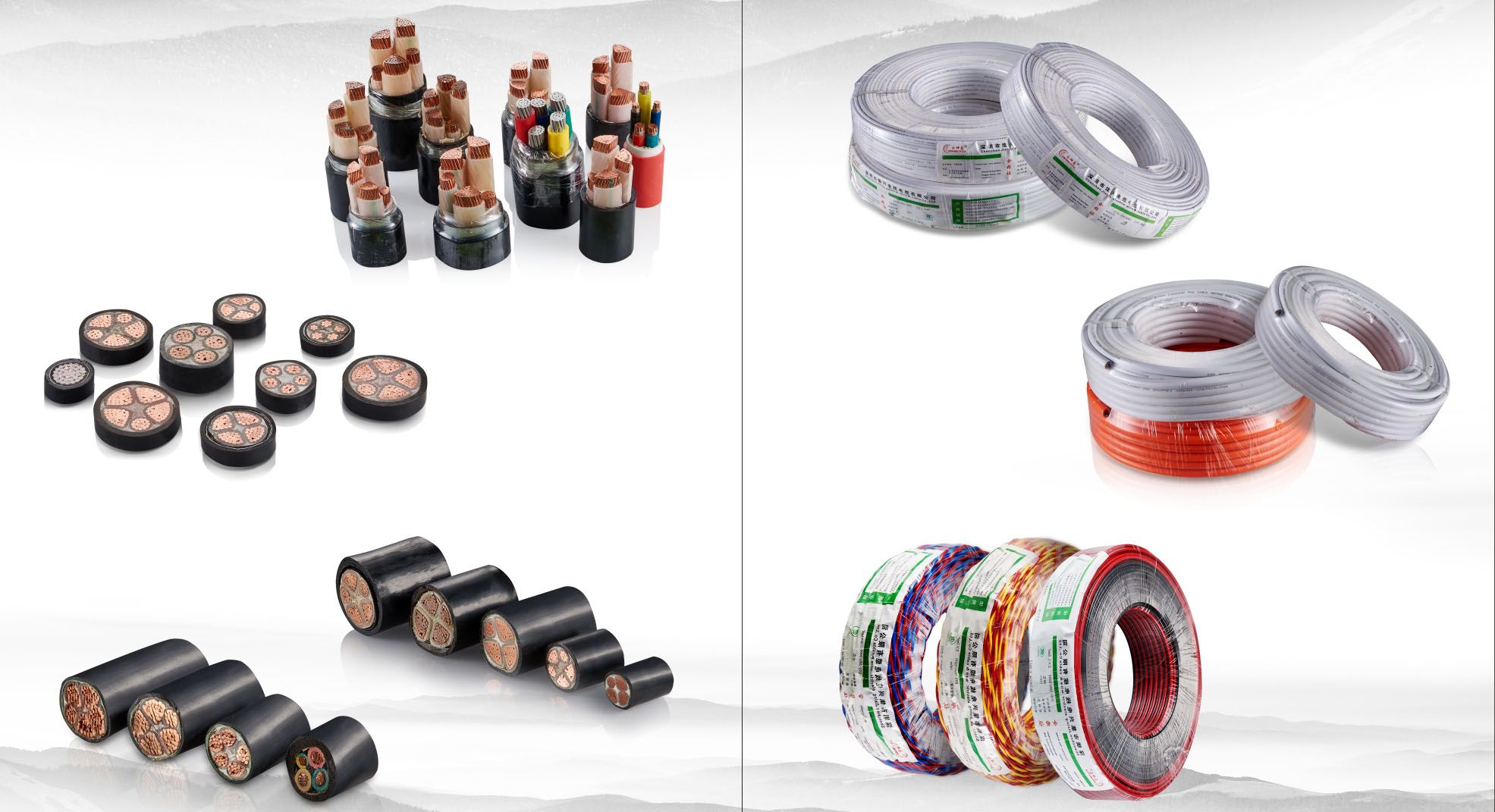

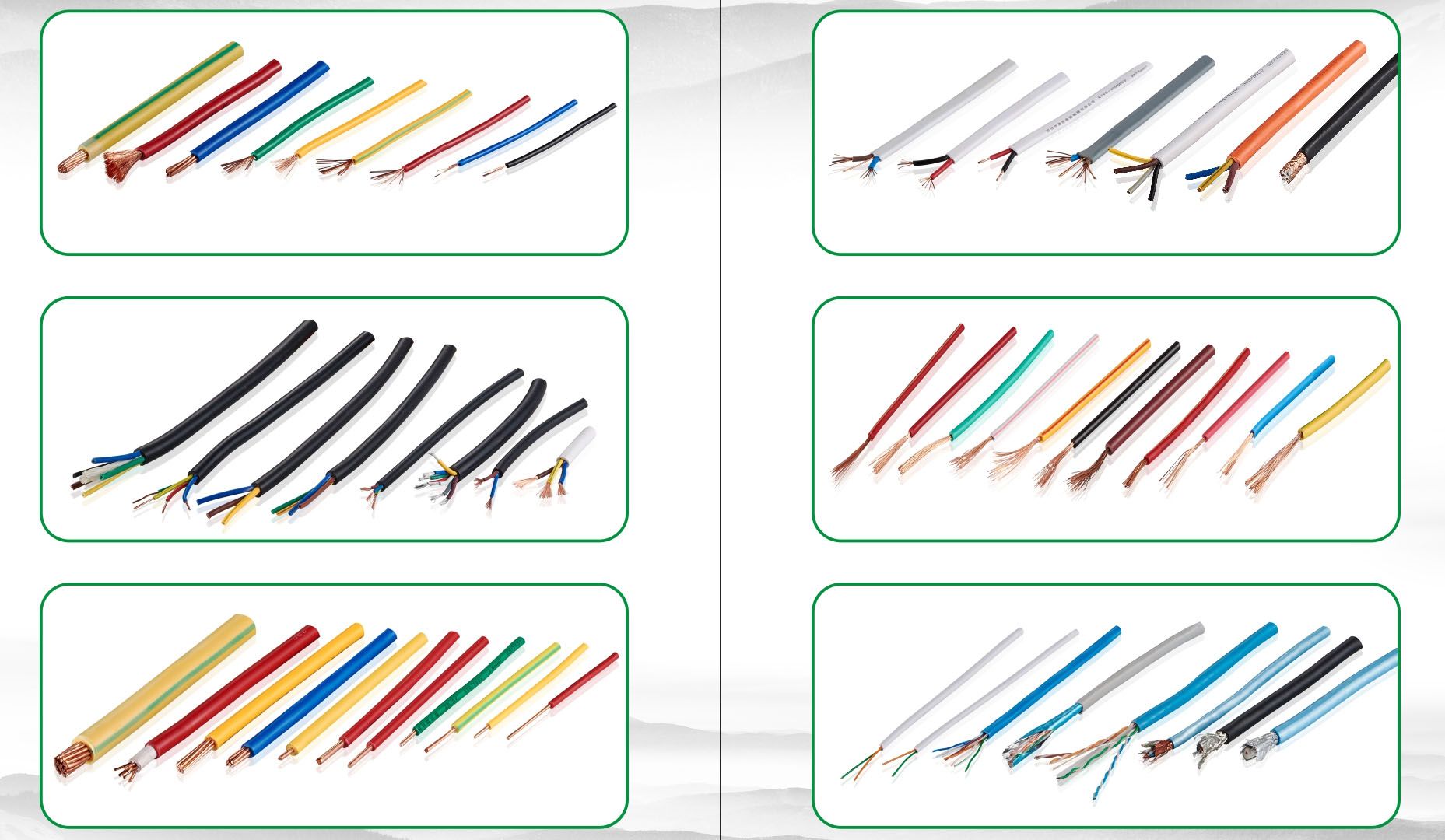

Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.

Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.

Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.

Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
