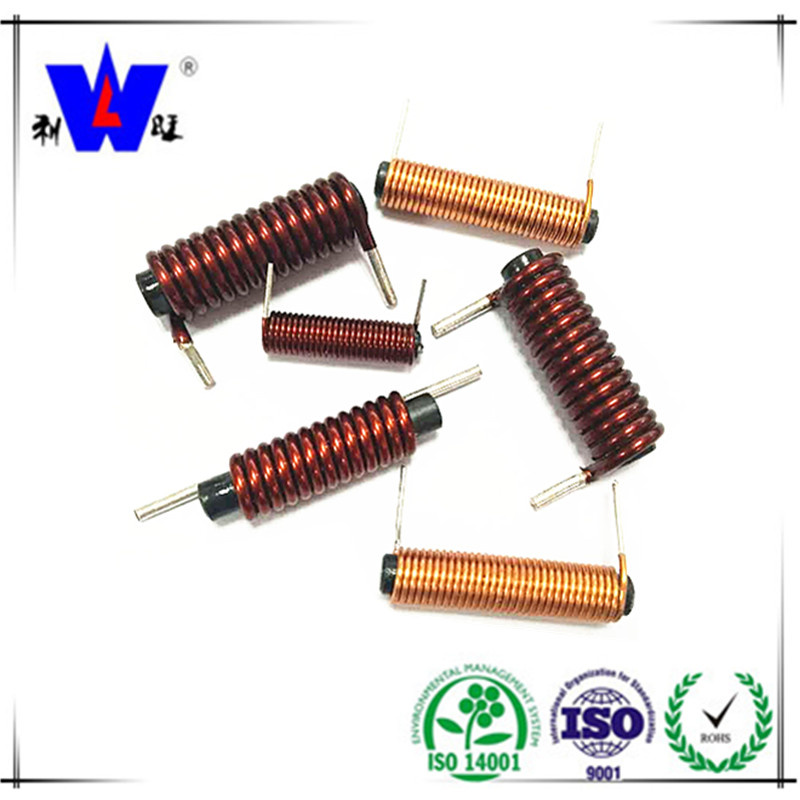

Power Wirewound Inductor Choke Inductor

Name: Power Wirewound Inductor Choke Inductor
Brand: all-electronics-online.com
SKU: 823992285
Availability: InStock
Rating: 4.7 (136 reviews)

Price:	US $ 0.1-5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LGA
Environmental Certifica:	ISO14001
Quality Certification:	ISO9001
Safety Certification:	CQC03003095~3097
Other Certification:	RoHS
Type:	Fixed Inductor
Structure:	Magnetic Bead
Brand:	Liwang

Product Description

Product	high frequency inductor coil with enameled wire
Installation Type	plug in type
Wire Running Method	one-Layer flat Winding
Magnitizer	Ferrite core
Certificate	ISO9001,CE,
Samples:	10-50pcs free samples for freight collect.
Payment Type	By T/T. 30% prior to order confirmation and samples approval, 70% upon receipt of B/L copy. • L/C
Delivery Time	30 days
Port	Qingdao or Beijing

Radial Rod Core power inductor:
RCH-110 A&B SERIES
features:
high saturation material
polyclefin shrink tubing
low DC resistance
high reliablity low cost

Option packing:
bulk packing is standard
bustom design available

Common application:
switching refulators
RFI suppression filters
SCR and triac controls
automotive systems

STANDARD SPECIFICATIONS:

PART NUMBER RCH-116A&B	L(u)	IDC(A)	RD-C(MAX)	A (MAX)	B (MAX)	C (0.015/0.38)	D(0.004/0.10)
RCH-110A-1ROL-25	1	25	0.002	0.60/15.2	0.68/17.3	0.42/10.7	0.068/1.73
RCH-110A-1ROL-10	1	10	0.002	0.5/12.7	0.75/19.1	0.42/10.7	0.054/1.37
RCH-110A-3R3L-10	3.3	10	0.005	0.5/12.7	1.0/25.4	0.42/10.7	0.054/1.37
RCH-110A-4R7L-03	4.7	3	0.021	0.51/13.0	0.75/19.1	0.42/10.7	0.035/0.89
RCH-110A-4R7L-05	4.7	5	0.012	0.5/12.7	0.75/19.1	0.42/10.7	0.042/1.07
RCH-110A-4R7L-10	4.7	10	0.012	0.5/12.7	1.0/25.4	0.42/10.7	0.054/1.37
RCH-110A-4R7L-20	4.7	20	0.004	0.53/12.7	1.2/30.5	0.42/10.7	0.068/1.73

Packaging & Delivery

Packaging Details:	1.Poly-Foam Multi-Layer Paperboard Carton 2.Package Customization Available for high frequency inductor coil with enameled wire
Delivery Detail:	Shipped in 15 days after payment

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
