Guangzhou Topshine Electronic Technology Co., Ltd. >> Powerful GPS Tracker Vt310 for Bus Management

Powerful GPS Tracker Vt310 for Bus Management

Powerful GPS Tracker Vt310 for Bus Management
Price: US $ 52-59/Set
Trade Terms: FOB,EXW
Min Order: 10/Set
Pay Type: T/T,Western Union,Paypal
Prod Model: VT310N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply: +9V~36V/1.5A
Backup Battery: 850 mAh
Dimension: 104*83*24mm
Frequency: GSM 850/900/1800/1900 MHz
GPS Chip: Ublox
Flash Memory: 4MB
Type: GPS Tracker
Use: Automotive
Operating Principle: GPS Tracker
Port Number: GPS Tracker
Model: GPS Tracker Vt310
Screen Size: No
Chip: Ublox
Brand: Topshine
Certification: CE/RoHS

Product Description

Powerful GPS Tracker Vt310 for Bus Management

Product Overview

 VT310 is an advanced GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security.
VT310 has good sensitivity and stable performance.
Especially, VT310 is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet.
It is a fully function tracker that supports fuel sensor and voice prompt functions and has strong expansibility and customization ability.

If you already develop your tracking center, we can offer protocol, you integrate your tracking center to be compatible with our GPS tracker, vehicle tracking devices.

Application

*Vehicle Real Time Tracking

*Car Security/Anti-Hijack

*Comprehensive fleet management


Functions & Features:

 * Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening (optional)
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Door open/close status detecting
* Door open/close control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* I/O: 5 Inputs, 5 Outputs, 2 Analog Inputs.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Accident alarm (need crash sensor support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, (optional)

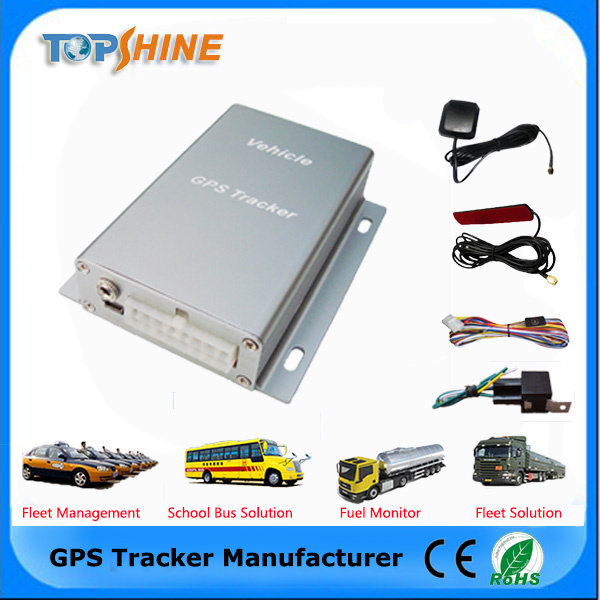

Package and accessories

VT310 unit  -- 1 piece
16-P wire   -- 1 piece
Relay -- 1 piece
GSM antenna  -- 1 piece
GPS antenna  -- 1 piece

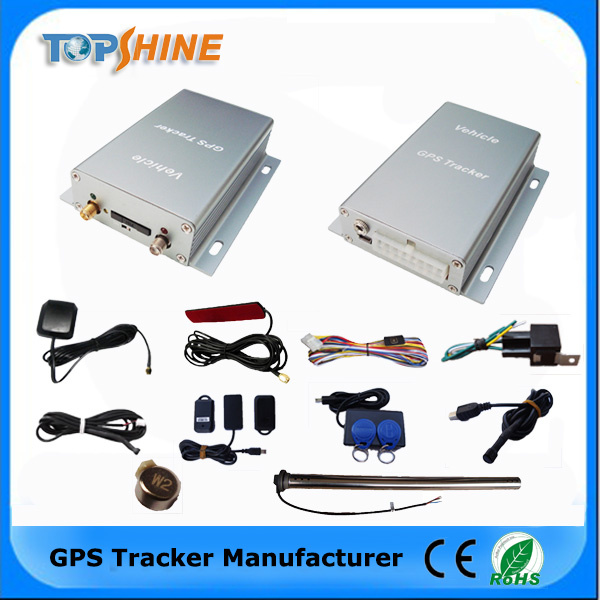

Optional Accessories:

USB cable
Fuel sensor
Microphone
Temperature sensor



Our Service

Our price comes with high quality products,lifetime technical support, lifetime customized support, OEM logo brand services, etc. Not just the devices.
With purchase of our GPS tracker, there is no additional or hidden cost to use our tracking platform. We can creat free user name and password for you to monitor various vehicles.




Why choose us

1.100% made of industrial grade components special GSM and GPS module, reject cheaper and unstable MTK solution hardware or second-hand component solution.

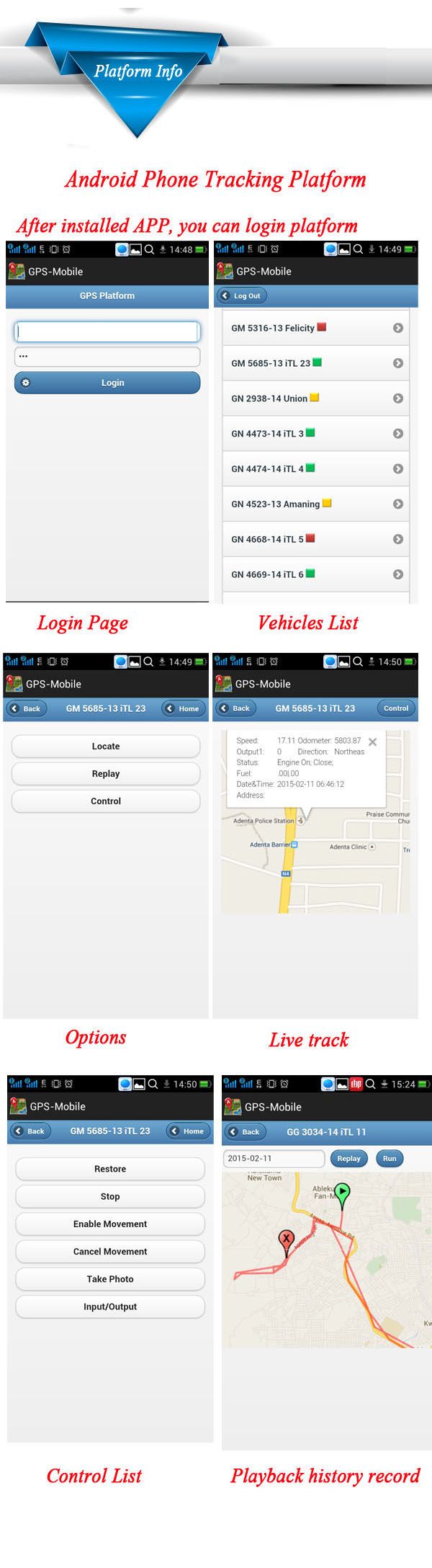

2.Provide two free tracking platform, one is for PC ,other is for moblie
phone. they won't ask for any charge forever. you can try to login with these two link via PC and mobile phone:
PC : www.global-track.net
Mobile : www.global-track.net/car.jsp
user name: hongkong
Password: 123
3. 100% origin,factory price, best technic and after-sale support,2 years warranty, free to help you to build your own tracking server.
4. We are good at customization job, if you have any good idea in gps tracker, we will try to achieve for you.

Contact Us

If you have any questions,Welcome to contact me:
Contact: Harley Wu



Inquiry Now!!

Technical Parameters:
Power Supply+9V - +35V / 1.5A
Backup Battery850mAh
Dimension104mm x 62mm x 24mm
Installation Dimension104mm x 83mm x 24mm
Weight150g
Operating temperature-20° to 65° C
Humidity5% to 95% Non-condensing
FrequencyGSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Modulelatest GPS SIRF-Star III chipset
GPS Sensitivity-158Db
GPS FrequencyL1, 1575.42 MHz
C/A Code1.023 MHz chip rate
Channels20 channel all-in-view tracking
Position Accuracy10 meters, 2D RMS
Velocity Accuracy0.1 m/s
Time Accuracy1 us synchronized to GPS time
Default datumWGS-84
Reacquisition0.1 sec., average
Hot start1 sec., average
Warm start38 sec., average
Cold start42 sec., average
Altitude Limit18,000 meters (60,000 feet) max.
Velocity Limit515 meters/second (1000 knots) max.
LED2 LED lights to show GPS/GSM working status.
Flash Memory4MB
Interface5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.




Packing Measures:
NeutralDimension (mm)Weight (KG)Capacity
Box225x160x550.651 set
Carton470x340x3101420 sets
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.

Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.

With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.

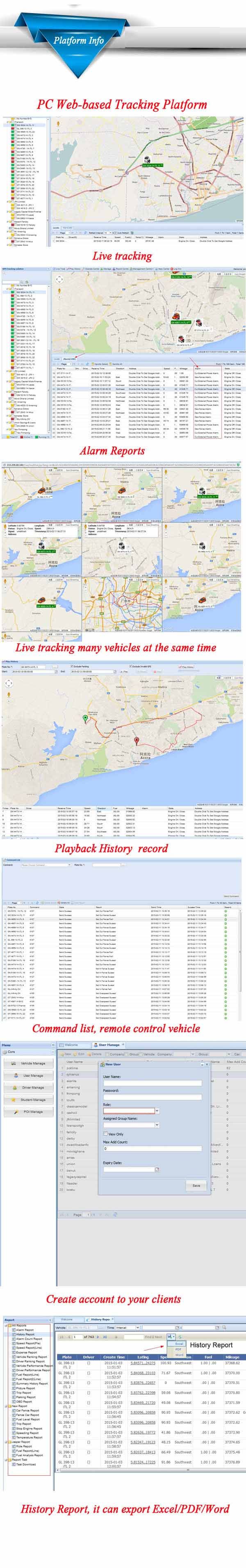

TOPSHINE provides a proprietary system to help clients manage their fleet and asset.

Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of

Vehicles to transport their goods or clients with valuable moveable assets, to monitor

Their assets thus minimizing the risks associated with their investments, increasing

Efficiency and productivity, and minimizing logistics and manpower costs. Real-time

Information can help with effective decision making, thus improving your company's

Performance and reducing overall costs.

We currently serve over 100 major customers and our clients come from various

Industries with unique demands or operational requirements. We can customise our

System to cater to our client's needs. In our ever-growing network of connected

Devices, our fleet can be monitored from anywhere with our mobile applications. Our

Services cover Hong Kong, China and cross border fleets.

Professional Consulting Services

With years of service experience, we have built up a good reputation and a strong

Professional team to provide strategic solutions and technical advice in fleet

Management. We work closely with all our clients to define their problems and

Expectations and tailor the best solution to solve their fleet management problems.

Our role is more than a technology provider who is assisting you to drive your

Business to be more profitable and competitive.

Customer Integration Services

Our team will support you as you work to integrate the GPRS01 system into your

Operations. We provide complete servicing from the installation to the maintenance of

Each tracking unit. A member of our customer support team will help coordinate the

Times and location for unit installation and demo/training times at your convenience,

While you, our client, can concentrate on managing your business.

On-Site Training Services

Once we have installed our units in your fleets, a training session will be arranged to

Familiarize all necessary parties with the software. We also provide a customer service

Help desk to assist you should you have any further questions. Our strong customer

Service team will ensure you understand the system and can put it to good use.

Customer Care Services

Customer satisfaction is a critical element for us. We care about our clients' needs,

Ideas and opinions. We make sure our products and services satisfy or exceed our

Client's expectations.
