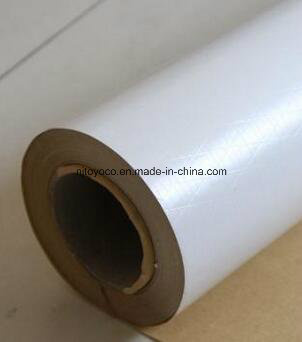

PP High Temperature Flat Diaphragm for Capacitor Use

Name: PP High Temperature Flat Diaphragm for Capacitor Use
Brand: all-electronics-online.com
SKU: 714105312
Availability: InStock
Rating: 4.8 (46 reviews)

Price:	Negotiable/Yard
Min Order:	1/Yard
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	6014-H(MP)
ID Of The Core:	50 or 76 mm
Product Type:	Film,Roll
Tensil Strength:	Different with Thickness
Hardness:	Soft
Smell:	No.
Sample Size:	A4 or Others
Application:	Motor
Type:	Insulation Film
Chemistry:	Organic Insulation
Thermal Rating:	A 105
Maximum Voltage:	<10KV
Material:	PP
Brand:	Toyo

Product Description

Packaging & Delivery

Packaging Details	Standard Package: Wooden Pallet, Wooden Case.
Delivery Detail	7-10 days

Specifications

After one side corona treatment, one layer or several layers metal can be coated on film, cacitor will have good self-healing; thickness tolerance is very good, and electrical insulation and mechanical properties are also very good.
Mainly used for big capacitor, and metalization film capacitor in high temperature condition.
After tested by SGS, conform to ROHS and REACH Regulation of EU, mainly used in insulation for motors, adhesive tape, and electronics, and etc.

Technical Data Sheet

Properties	Unit	Requirements					Test Method
		Nominal Thickness (micron)
		5D	7D		9D	12D
Density	g/cm³	0.905	0.905		0.905	0.905	GB/T12802,5.6
Melting Point	ºC	167	167		167	167	GB/T12802,5.7
Thickness Tolerance	Averag-e Indivi-dual	+/-2.0 +/-4.0	+/-1.5 +/-3.5		+/-1.2 +/-3.0	+/-1.2 +/-3.0	GB/T12802,5.3
Tensile Strength Linear Lateral	Mpa	155 290	160 290		160 300	160 300	GB/T12802,5.8
Elongation at Break Linear Lateral	%	160 55	160 55		160 55	160 55	GB/T12802,5.8
Shrinkage Linear Lateral	%	4.0 0.4	3.0 0.2		2.5 0.2	2.5 0.2	GB/T12802,5.9
Volume Resistivity(200±5ºC)	Ω.m	2.5*10¹⁷	2.5*10¹⁷		2.5*10¹⁷	2.5*10¹⁷	GB/T12802,5.11
Dielectric Loss Factor(50Hz,1kHz)	---	1.9*10^-4	1.9*10^-4		1.9*10^-4	1.9*10^-4	GB/T12802,5.12
Relative Permittivit-y (50Hz,1kHz)	---	2.2	2.2		2.2	2.2	GB/T12802,5.12
Surface Roughnes-s(Ra)	micron	0.8	0.1		0.1	0.1	GB/T12802,5.16
Power Frequency Electrical Strength 50 dot pole	V/ μm. DC	530 400	570 420		580 420	580 420	GB/T12802,5.10
Electrical Weakness	Pcs/sq-m	0.5		0.1	0.08	0.05	GB/T12802,5.13
Wetting Tension	MN/M	42		42	42	42	GB/T12802,5.18
A Standard NO. is GB/T 13542.3-2006

Store

Keeping in normal temperature, and keep away from combustion source, heat source, and do not receive direct sunlight, sheld life since manufacturing data is 12 months.
When slitting and using, crack at the edge, scratches on surface, greasy dirt and dust should be avoided.

Packaging & Shipping

Normally the out - packaging for the goods is wooden pallet or wooden case, we can deliver it by air or by ship.
Airport: Beijing, Tianjin, Qingdao, Nanjing, Shanghai, Guangzhou, Shenzhen
Sea Port: Tianjin,Qingdao, Shanghai, Ningbo, Guangzhou
Packing Type Photo is as the following:

We are major in insulation material of various classes, from B to F, and from F to H, TOYO'S products are widely used in Motors, Generators, Welders, Electrical Heaters, and etc. And provide assurances for their long time, stability work.

The test results of from SGS Shanghai branch indicate that the TOYO's products are in conformity with EU RoHS Directive 2002/95/EC and subsequent revision directives. And our product conforms to REACH regulation's requirements (the newest version) of European Union after tested, and also passed UL certification of American and Canada.

" TOYO" Team was composed of many senior electrical engineers, and insist on response to every client's enquiry 100%. Maintaining good cooperative relationship with main manufacturers in domestic for long term, and this provides " TOYO" With stable product quality; Reasonable prices; Timely supply.

We started to do the foreign trade since 2014, because of the good faith, now we have had so many customer from home and abroad. We are also planning to making the investment to enhance the relationship with our key suppliers, and meet our customer's requirements.

Welcome you to contact us and discuss business at any time.
