PP Terminal Blocks Terminal Strips

PP Terminal Blocks Terminal Strips
Price: US $ 0.02/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Piece
Pay Type: L/C,T/T
Prod Model: 2.5MM2, 4MM2, 6MM2, 10MM2, 16MM2, 25MM2
Markets: North America,Eastern Europe,Oceania,Western Europe
Samples: Free
Poles: Standard 12 Pole, 1,2,3-Pole and Special-Cut Poles
Working Temperature: 85ºC
Feature: Easy Cut
Material: Polypropylene
Screws: Galvanised Steel
Insert: Brass
Application: Battery
Environmental Protection: General
Connection Mode: In-Line Connector
Contact Termination Form: Screws Fixed
Shape: U, H Shapes
Type: Imq, VDE, UL, Ce, SGS, RoHS
Character: All European and Us Standards
Interface Type: Standard
Brand: Es

Product Description

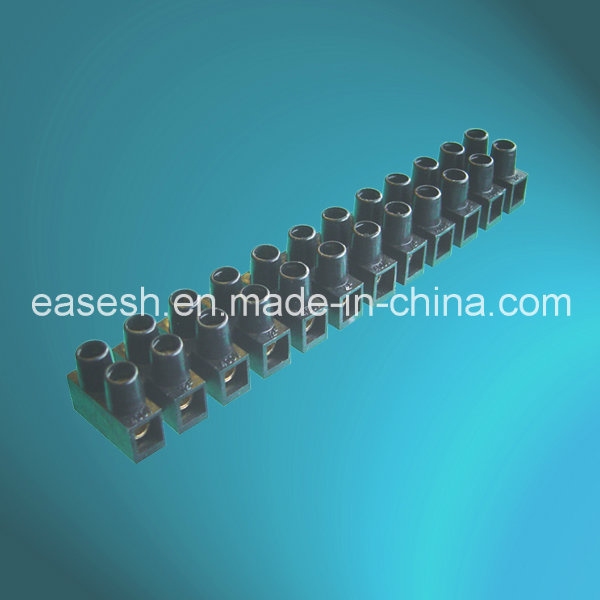

Polypropylene (PP) Terminal Blocks

Our terminal blocks are of the top consistent quality made with PE, PP, PA, PC, Porcelain and brass from China, with excellent design, function and performace on all types of electrical connections. We are ISO 9001 certified company which for many years, has been providing profssional, reliable and efficient services in all our operations including production, quality inspection and control, shipping, fast clearance and delivery services across the UK and Europe and also many other countries.

Inserts: Brass
Housing: Polypropylene (PP)
Temp.: 85ºC
Screws: Galvanised Steel
Standard: CE (BS EN 60998)
Color: Black or Natural
Feature: Semi-rigid, easy to be seperated by hands
               Flame Retardant
               All Screws are captive for easy wiring

We have a full range of terminal blocks and can provide standard, neutral packaging, or special customised packaging to meet with our customers very different requirements.

We are also specialised in making toolings according to customers' own drawings and samples with fast turnaround time and cost-effective solutions.

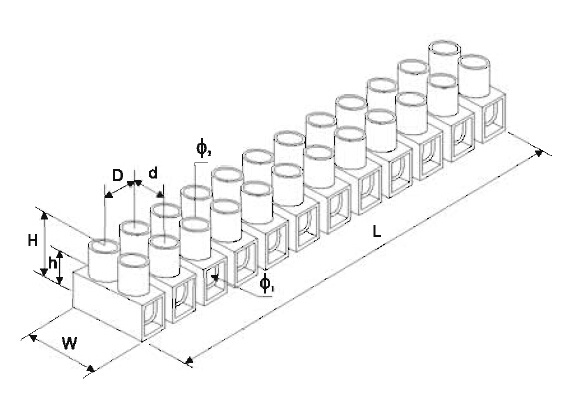

Technical Data:
EASE CODECROSS SECTIONRATED CURRENTRATED VOLTAGEDIMENSIONS (mm)
LWΦ1Φ2DdHh
CPP-3A    4 mm23 ~24A380V9316.82.82.37.8613.67.6
CPP-5A    6 mm25 ~ 32A380V11418.83.32.6108158.8
CPP-10A 10 mm210 ~ 57A400V12520.74.32.811916.29.6
CPP15A   12 mm215 ~ 61A400V13722.54.52.8121018.810.2
CPP-30A 16 mm230 ~ 76A400V16525.55.53.0141119.811.2
CPP-60A25 mm260 ~ 101A400V18731.26.53.816.51325.514.8
Cross Section:
rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2  is 4mm2
Φ1 wire entry hole diameter
Φ2 fixing hole diameter


EASE Advantages:
a. Quality is our culture. All proction is strictly according to UL/ VDE/ REACH/ IMQ/ CE regulateion and with100% tested before delivery.
b. Free samples will be provided for evaluation at any time.
c. Guarantee the prompt delivery. Special for customers in the UK and Europe: the same day delivery within UK and 5-day delivery in Europe.
d. OEM is available. And all your information will be confidential.
e. We are One-stop Shop for cable accessories.

If you are frustrated that your current supplier of electrical accessories doesn't seem to be giving the category their full attention, is frequently out of stock, or offers substandard products, give us a call. Let's discuss how EASE Ltd. can increase your sales and margins!

Your satisfaction is our ultimate goal!

Packing Information:
EASE, founded in 1996, the leading manufacture in Europe and China for Cable & Lighting Accessories. A totally positive business approach and delication to a policy of making outstanding quality from China is key to our continued Success. With Strong focus on products quality, heavy investment has been made in toolingdesign and mouldmaking for our group manufacturers. Strictly raw material control and evaluation guarantees the consistency of our mass production Quality.

All manufacturing is carried out under ISO 9001, with most of them complying with RoHS, REACH and certifiedby UL, VDE and IMQ making EASE products the envy of many competitors.

Predominately addressing the electrical OEM markets, our expertise and specialty fulfill the needs of those companies Who recognise the benefits of outsourcing products from hassle-free one-stop supplier' S service, leaving them to focus on their core business. With our comprehensive quality control systems, EASE ensures the consistency of all OEM Production from container to container shipments for many years.

The UK 85, 000 square feet warehouse is vital to the company' S efficiency and flexibility. The integrated logistic force Behind EASE combined with dedicated staff allowsthe Company to provide the fastest possible responses to the Customers ever changing needs in the UK and across Europe.

The Company' S ability to deliver on its motto, "European Quality, Chinese Price" has gained itself an excellent reputation in a broad spectrum of industries, and has become an approved supplier to many leading international companies in the UK, Europe and America. The company continues to move forward with an ever-increasingportfolio of high quality Electrical, lighting and LED product lines, with the aim to be an ultimate single source for our long-term business Partners and all new customers.
