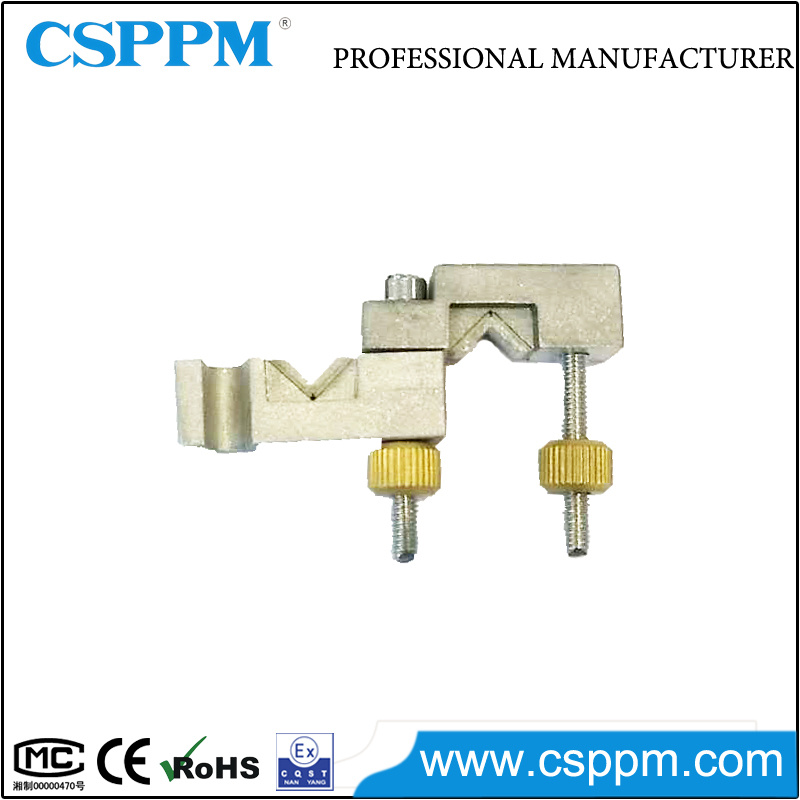

Ppm-8104 Dynamic Pressure Transducer with Clamp-on Lines

Name: Ppm-8104 Dynamic Pressure Transducer with Clamp-on Lines
Brand: all-electronics-online.com
SKU: 830557985
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ppm-8104
Type:	Piezoelectric Pressure Sensor
For:	Piezoelectric Pressure Sensor
Certification:	CMC

Product Description

Description

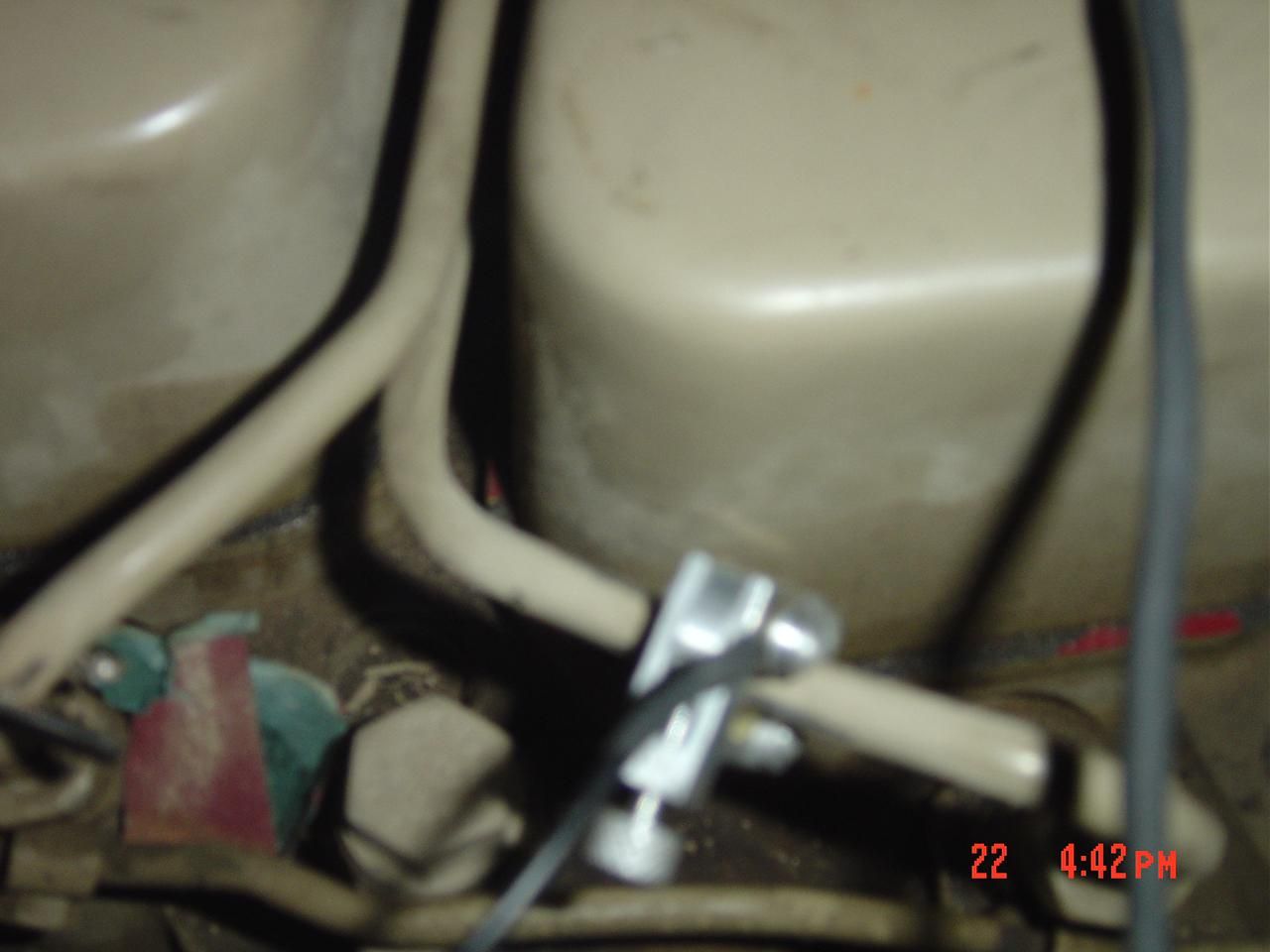

The model PPM-8104 Pressure Transducer was especially designed for engine injection pressure measurement. It adapts Piezoelectric thin-film detection technology. By using PPM-8104, there is no need to change the fuel injection system of engine, it is clamped on the fuel tube. Accurate dynamic pressure can be measured by the PPM-8104 Pressure Transducer together with the indicator.

Specifications

Pressure range	0~40MPa,0~100MPa,0~160MPa
Tube diameter	Φ4.74, Φ6, Φ6.4, Φ7, Φ15, Φ20, or other on request
Output sensitivity	250~400pC/N
Equivalent capacitance	390pF
Temperature range	-45ºC~85ºC
Insulation Resistance	≥100MΩ
Vibration	100 g
Weight	≤100 g

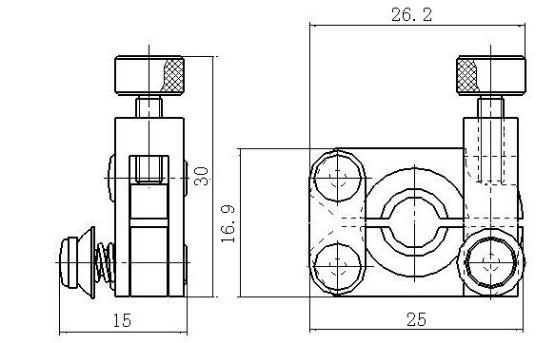

Dimensions in mm
