Ppm-Dr-3 Capacitive Oil Level Sensor

Name: Ppm-Dr-3 Capacitive Oil Level Sensor
Brand: all-electronics-online.com
SKU: 820701945
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-DR-3
Type:	Capacitive
Certification:	CMC

Product Description

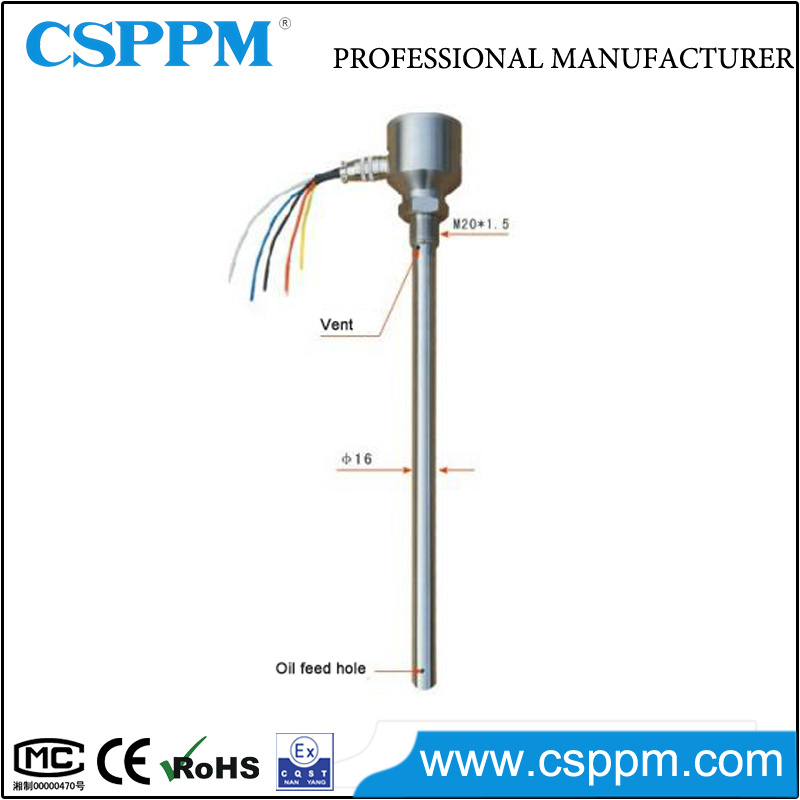

PPM-DR-3 Capacitive Oil Level Sensor

Description
PPM-DR-3 Capacitive Oil Level Sensor is designed for various kinds of oil such as gasoline, diesel, hydraulic oil. It has applied in fuel tank, oil depots, railway locomotive' tank. It features high accuracy, reliability, shock resistance, anti-interference. It can also measure other non-conductive liquid level.
PPM-DR-3 sensor adopts tomography technology and dynamic analysis technology, it can automatically refresh the reference value and make accurate compensation. PPM-DR-3 needn't re-calibrate when the media or environment is changed. It has a high accuracy up to 0.2%FS.
Features
1. Easy to install
2. Cost-efficient.
3. High reliability and accuracy
4. Various kinds of output signal: 4-20mA, Hart communication protocol, RS 485, CAN communication protocol.
Specification

Measuring range	0.05 -5m
Accuracy	0.2%FS, 0.5%FS
Pressure range	-0.1MPa-32MPa
Medium Temperature	-50 -250 ºC
Output signal	4-20mA, , Hart communication protocol, RS 485, CAN communication protocol.
Power supply	12-28VDC
Process connection	Thread M20 × 1.5 , M27 × 2 , M18 × 1.5 , M16 × 1 Flange DN25, Flange DN40, Flange DN50 ,or other on request
Probe diameter	Φ 12 ,Φ 16 ,Φ 25
Ingress protection	IP65

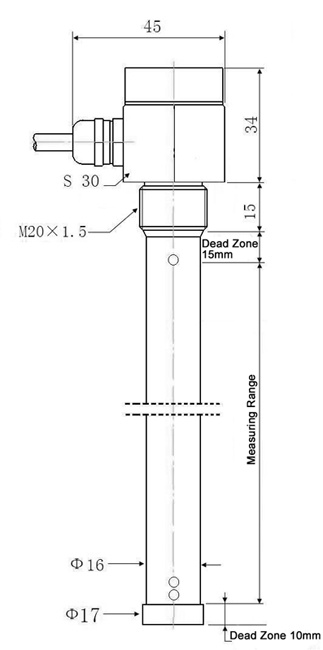

Dimensions

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
