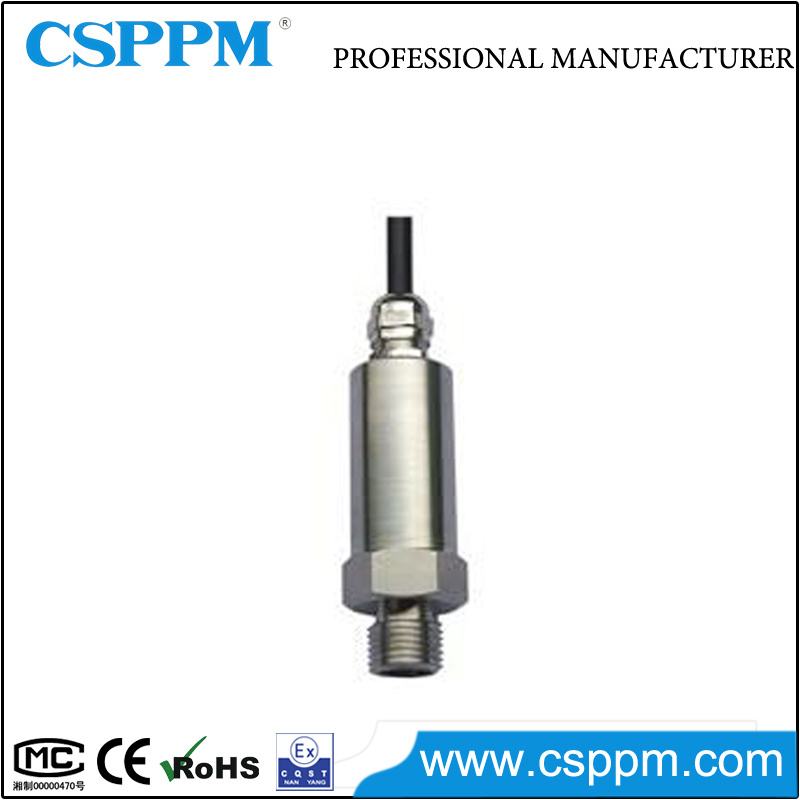

Ppm-S230A Strain Gauge Pressure Sensor for General Industrial Applications

Name: Ppm-S230A Strain Gauge Pressure Sensor for General Industrial Applications
Brand: all-electronics-online.com
SKU: 830070725
Availability: InStock
Rating: 4.8 (108 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-S230A
Certification:	CMC

Product Description

Description
The model PPM-S230A Strain Gauge Pressure Sensor is designed for most general industrial applications. It offers wide measuring range from 0...1MPa to 0...200MPa in all common engineering units. It features good long-term stability, high accuracy and nice repeatability.OEM accepted.

Features

Wide measuring range from 0...1MPa to 0...200MPa.
Wide temperature ranges.
Good Vibration resistance and Impact resistance.
Over-pressure up to 150%FS, Damage pressure up to 500%FS

Applications
Testing machine, Engine test, Hydraulic system, Brake system,Water supply system, and other industrial automation equipment.

Specification

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S),
Pressure range	0~1MPa…200MPa
Power supply	3~15VDC(5VDC suggested)
Output signal	1.5 mV/V ,2.0 mV/V,3.3mV/V(0~7.5mV,0~10VmV,0~15mV at 5VDC power supply)
Nonlinearity	0.05%, 0.06%, 0.08%
Repeatability	0.1%
Creep	0.03%FS
Accuracy	±0.25%FS,±0.5%FS
Long-term stability	0.2%FS/year
Operation temp	-25~85ºC
Zero temp. drift	±0.02%FS/ºC
FS temp. drift	±0.03%FS/ºC
Response time	1 ms
Output impedance	350Ω,1600Ω,2000Ω
Insulation resistance	≥1000 MΩ/100V
Overpressure	150%FS (1.5 times FS)
Damage pressure	500%FS (5 times FS)
Vibration resistance	<0.1%FS,at 5~1000Hz,2mm amplitude,X Y Z each direction in 30 minutes
Impact resistance	<0.1%FS,at50g;X,Y,Z each direction 20ms;
Process connection	M20×1.5,M16×1.5,M14×1.5,M10×1,G1/4 or other on request
Materials	Diaphragm:17-4PH stainless steel, Thread parts:1Cr18Ni9Ti stainless steel
Humidity	0~95% RH
Ingress protection	IP67
Electrical connections	Cable connection

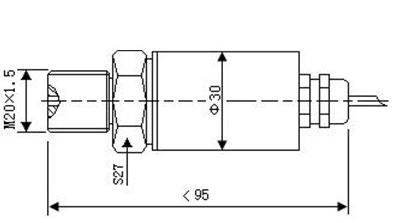

Dimensions

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
