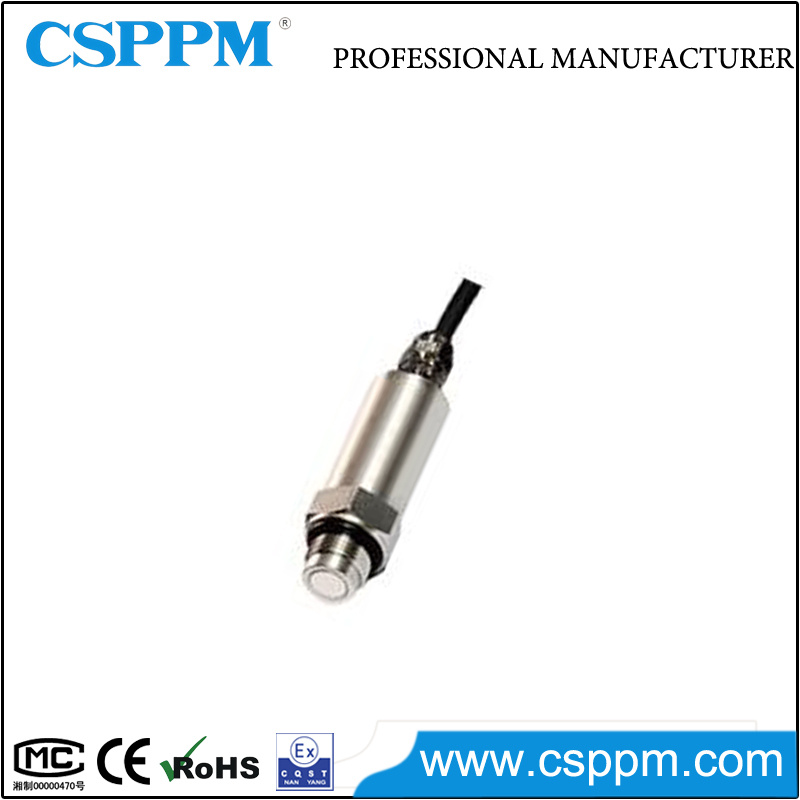

Ppm-T127A Dynamic Pressure Transmitter with High Frequency

Name: Ppm-T127A Dynamic Pressure Transmitter with High Frequency
Brand: all-electronics-online.com
SKU: 831104815
Availability: InStock
Rating: 4.4 (142 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T127A
Pressure Range:	-100kpa~0~10...100MPa
Certification:	CMC

Product Description

Description
The PPM-T127A Dynamic Pressure Transmitter is especially designed for high frequency dynamic pressure. It can also precisely measure static pressure at the same time. The PPM-T127A adopts flat film structure,it features qucik response and high frequency up to 400kHz. Wide measuring range is available, from -100 ~0 kPa to 0~100 kPa. The accuracy of the model PPM-T127A is up to 0.2%FS.

Features
1. Wide measuring range : from -100 ~0 kPa to 0~100 kPa.
2. Various kinds of output signal : 4-20mA, 1-5VDC, 0-5VDC.
3. High frequency up to 400kHz.
4. Good long-term stability : 0.1%FS/year

Applications
Detonation experiment, Engine test, fluid mechanics, Hydraulic machinery test, Trauma medicine, Petroleum exploration and well test.

Specifications

Measured medium	Gas, Liquid
Pressure type	Gauge pressure(G), Sealed pressure(S), Absolute pressure(A)
Pressure range	-100kPa~0~10kPa~1MPa~10MPa...100MPa
Power supply	24VDC
Output signal	4-20mA, 1-5VDC, 0-5VDC
Response frequency	0~400kHz
Response time	≤0.1ms
Nonlinearity	0.2%, 0.5%
Repeatability	0.05%FS
Accuracy	0.2%, 0.5%
Long-term stability	0.1%FS/year
Operation temperature	-40~85ºC
Insulation resistance	≥500 MΩ/50V
Over-pressure	150%FS (1.5 times FS)
Damage pressure	300%FS (3 times FS)
Process connections	M20*1.5 or other on request
Relative humidity	0~95%
Ingress protection	IP65
Electrical connections	cable outlet

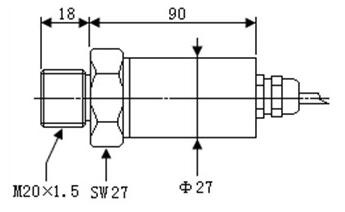

Dimensions in mm

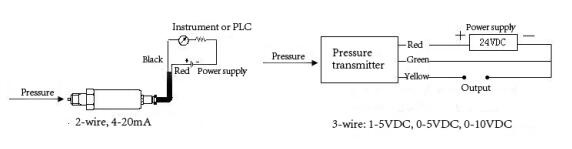

Wiring Diagram

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
