Ppm-T133A Pressure Sensor with 4-20mA Output Signal

Name: Ppm-T133A Pressure Sensor with 4-20mA Output Signal
Brand: all-electronics-online.com
SKU: 833580575
Availability: InStock
Rating: 4.8 (32 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T133A
Certification:	CMC

Product Description

Description
The model PPM-T133A Pressure Transmitter was designed for demanding industrial application.High performance pressure sensing elements was integrated in stainless steel housing. It was designed without rubber O-ring. It features good corrosion resistance, vibration resistance and long service life.The model PPM-T133A offers wide measuring range from 0~7kPa to 0~600 bar.

Features

Compact size;
Wide measuring range between 0~7kPa to 0~600bar;
Accuracy up to 0.5%FS even 0.25%FS(measuring range> 10 bar)
High ingress protection: IP 67

Specifications

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S),Absolute pressure
Pressure range	0~7kPa,10kPa,20kPa,30kPa,40kPa,100kPa,160kPa,250kPa,400kPa,600kPa, 10bar,16bar,25bar,40bar,60bar,100bar,160bar,250bar,400bar,600bar
Power supply	12-36VDC
Output signal	4~20mA
Accuracy	0.5%FS, 0.25%FS
Long-term stability	0.25%FS/year
Medium temp.	-40~+85ºC
Ambient temp.	-35~+85ºC
Storage temp.	-40~+105ºC
Compensation temp.	0~+80ºC
Temp. drift	≤0.02%FS/ºC
Overpressure	150%FS (1.5 times FS)
Damage pressure	500%FS (5 times FS)
Vibration resistance	5~1000Hz
Shock resistance	50g, 20ms
Process connections	G1/4
Materials	Wetted parts: stainless steel 316, non-wetted parts: stainless steel 304
Ingress protection	IP67
Electrical connections	Cable outlet

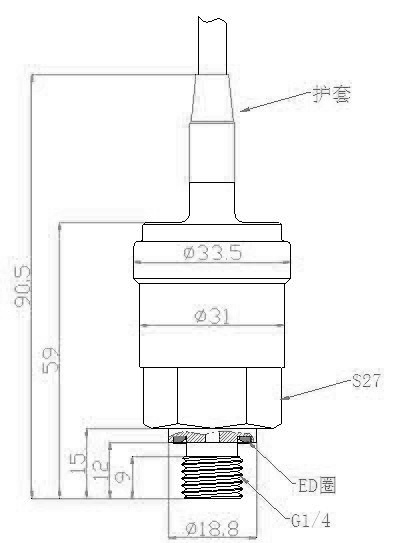

Dimensions in mm

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
