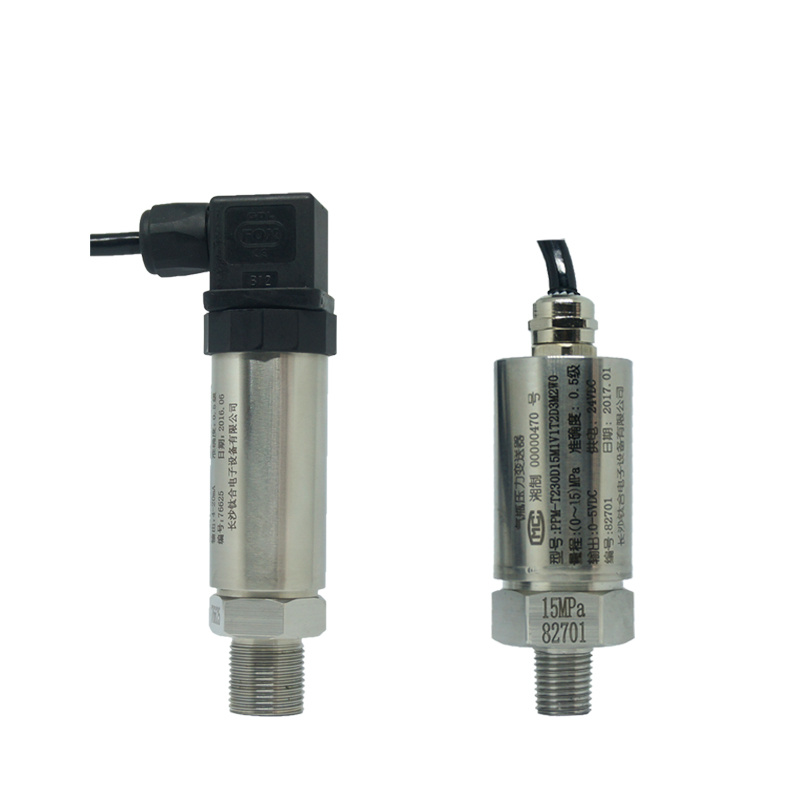

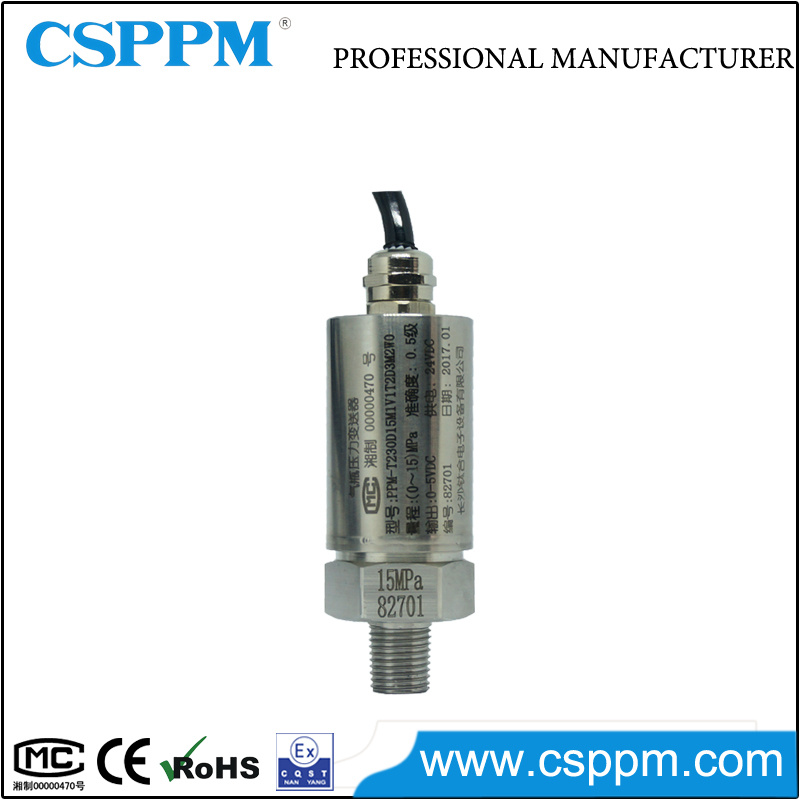

Ppm-T230d Pressure Sensor for High Pressure up to 250MPa

Name: Ppm-T230d Pressure Sensor for High Pressure up to 250MPa
Brand: all-electronics-online.com
SKU: 834085775
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	US $ 68-152/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ppm-T230d
Pressure Range:	0~250MPa
Certification:	CMC

Product Description

Description
The model PPM-T230D Pressure Transmitter for General Industrial Application offers excellent quality at an extremely competitive price. The various pressure ranges, process connection and output signal required for particular operating conditions are available.

Features

Measuring ranges from 0~10MPa to 0~250MPa.
Accuracy up to 0.15%FS.
Output signal: 4-20mA, 0-5VDC, 0-10VDC.
Process connection: M20*1.5, M14*1.5, G1/4, 1/4NPT.

Applications
Machine building, Ship building, Measurement and control technology, Hydraulics and pneumatics, Pumps and compressors, urban water supply.

Specifications

Measuring medium	Gas, liquid
Pressure type	Absolute pressure(A),Sealed pressure(S),Gauge pressure(G)
Measuring range	0~10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa, 120MPa, 150MPa, 200MPa
Power supply	12~36VDC
Output signal	4~20mA, 0~5VDC, 0~10VDC
Repeatability	0.05%FS
Nonlinearity	0.05%FS
Accuracy	0.15%FS, 0.5%FS
Long-term stability	≤±0.2%FS/year
Ambient temperature	-20ºC~+85ºC
Medium temperature	-20ºC~+85ºC
Ingress protection	IP65, IP68
Process connection	M20×1.5, M14×1.5, G1/4, G1/2, 1/4NPT or other on request
Over pressure	150%FS
Damage pressure	300%FS
Vibration resistance	5~1000Hz
Shock resistance	50g
Humidity	0~95%RH
Material	Stainless Steel 1Cr18Ni9Ti Diaphragm: Stainless Steel 17-4PH

Dimensions in mm

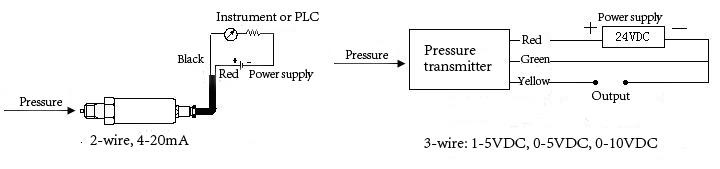

Wiring diagram

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
