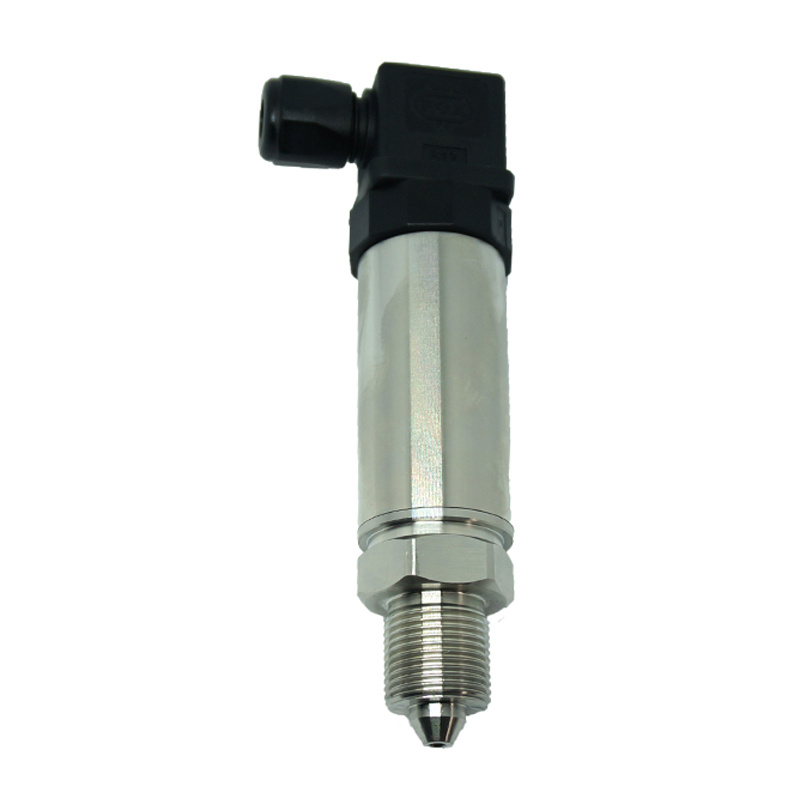

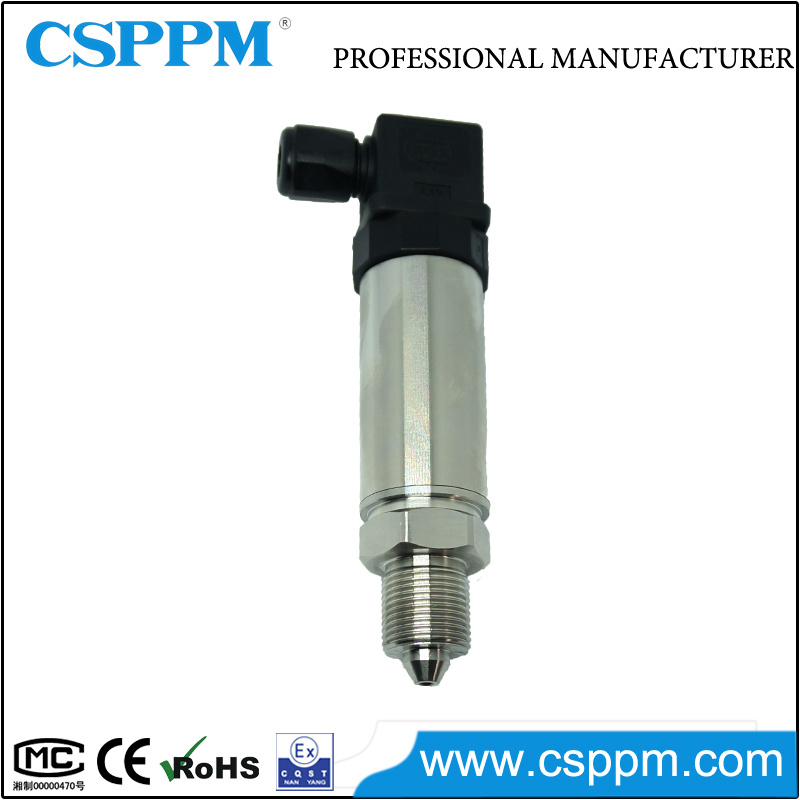

Ppm-T232b Pressure Transmitter for Viscidity Liquid Pressure Measurement

Name: Ppm-T232b Pressure Transmitter for Viscidity Liquid Pressure Measurement
Brand: all-electronics-online.com
SKU: 833739315
Availability: InStock
Rating: 4.3 (129 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T232B
Certification:	CMC

Product Description

Description
Pressure Transmitter PPM-T232B is designed for solid liquid mixture and Viscidity Liquid pressure measurement. The diaphragm adopts high strength stainless steel, it has a good resistance to impact from solid particle. The PPM-T232B has wide pressure ranges up to 150 MPa, and offers an accuracy of 0.5%FS or 0.2 %FS. Various output signals are available, such as 4-20 mA, 1-5 VDC, 0-10 VDC and so on.

Features
1. High strength stainless steel diaphragm.
2. Wide pressure ranges from 0~1 MPa to 0~150 Mpa.
3. Wide operation temperature from -40~+80 ºC to -40~-150ºC.
4. Various output signals: 4-20 mA, 1-5 VDC, 0-5 VDC, 0-10 VDC.
5. conical surface sealing structure.

Applications
1. Oil and chemical industry
2. Paint inspection system
3. Solid liquid mixture and Viscidity Liquid pressure measurement.

Specifications

Measuring medium	Gas, liquid, Viscidity Liquid, Solid Liquid mixture
Pressure type	Gauge pressure(G), Sealed pressure(S)
Measuring range	0~1MPa…10MPa…150MPa
Power supply	24VDC(12-32VDC)
Output signal	4-20mA, 1-5VDC,0-5VDC,0-10VDC
Response frequency	1.5kHz
Non-linearity	0.05%FS
Repeatability	0.05%FS
Accuracy	0.1%FS,0.2%FS,0.5% FS optional
Long-term stability	0.2%FS/year
Operation Temp.	-40~85ºC/125ºC/150ºC
Insulation resistance	≥500 MΩ/200VDC
Over-pressure	150%FS (1.5 times FS)
Damage pressure	300%FS (3 times FS)
Process connection	M20×1.5, 1/2NPT or others on request
Wetted parts materials	Diaphragm:17-4PH stainless steel,316L stainless steel;Process connection:1Cr18Ni9Ti
Humidity	0~95% RH
Ingress protection	IP65
Electric connection	L-connector

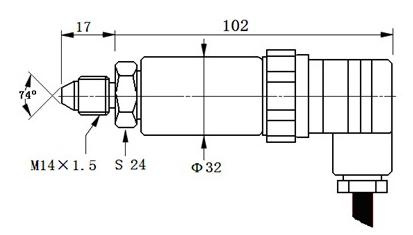

Dimensions

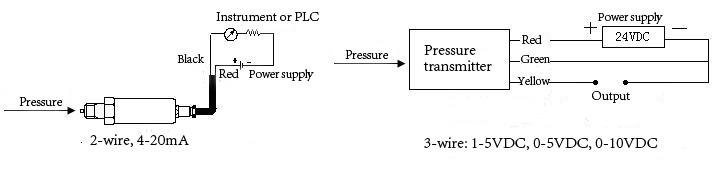

Wiring diagram

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
