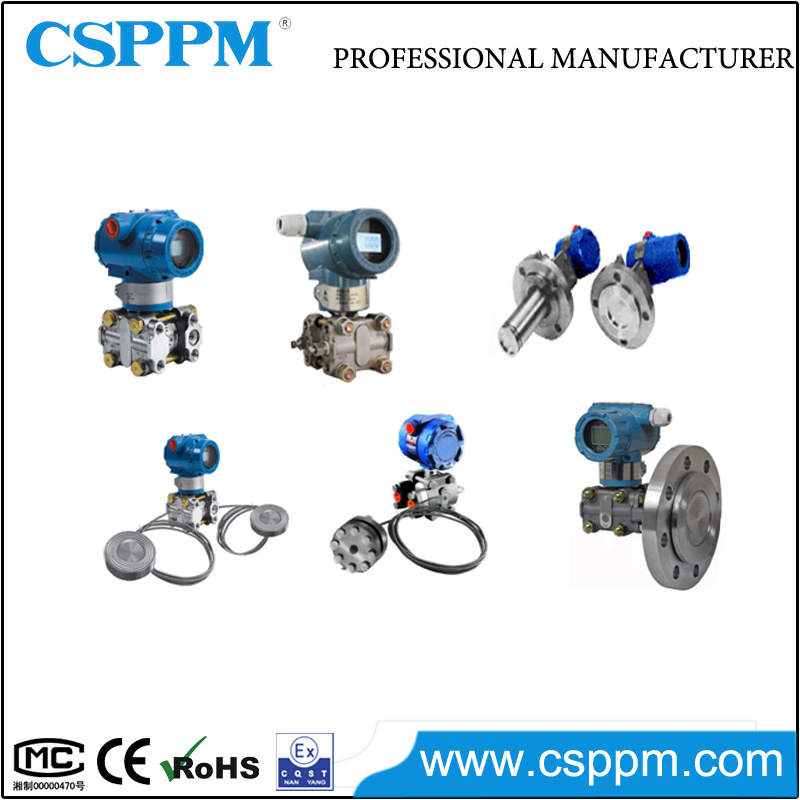

Ppm-T3051 Intelligent Differential Pressure Transmitter

Name: Ppm-T3051 Intelligent Differential Pressure Transmitter
Brand: all-electronics-online.com
SKU: 824253965
Availability: InStock
Rating: 5 (55 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T3051
Certification:	CMC

Product Description

Description
The PPM-T3051 Pressure Transmitter is designed to measure gauge pressure, differential pressure, absolute pressure, liquid level. It has improved standard accuracy and temperature compensation to enhance the quality. The PPM-T3051 adopts advanced digital technique and frequency phase shift keying craft and makes the connection of site and control room more convenient. It has more functions than analog pressure transmitters, such as communication, test, configuration, etc.

Specifications

Measuring Medium	Gas, liquid, Steam
Measuring Range	0~40 MPa
Output Signal	4-20mA, 4-20mA with HART
Power Supply	24VDC (12-45VDC)
Display	LCD
Operation Temperature	-25ºC~+70ºC
Medium Temperature	-40ºC~+100ºC
Humidity	0~100%RH
Accuracy	0.2%FS, 0.5%FS
Temperature Drift	0.2% /55ºC
Stability	0.2%FS/year
Power Impact	<0.005%/V
Vibration Impact	0.05%/g
Material	SS316L

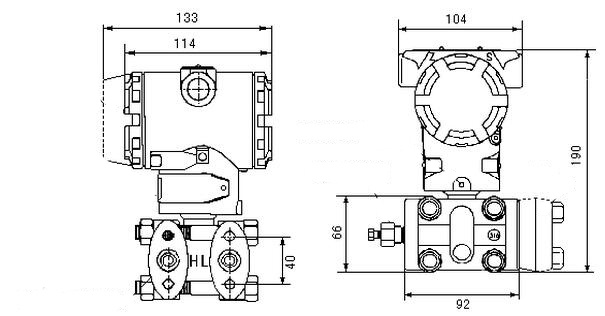

Dimensions in mm

Order Information

Code	Type of Pressure Transmitter
PPM-T3051GP	Gauge Pressure Transmitter
PPM-T3051AP	Absolute Pressure Transmitter
PPM-T3051DP	Differential Pressure Transmitter
PPM-T3051LT	Level Transmitter
Code	Measuring Range
2	0-0.1~1.5kPa(0-10~150mmH2O)
3	0-0.7~7.0kPa(0-70~700mmH2O)
4	0-4.0~40kPa(0-400~4000mmH2O)
5	0-20~200kPa(0-2000~20000mmH2O)
6	0-70~700kPa(0-0.7~7kgf/cm2)
7	0-210~2100kPa(0-2.1~21kgf/cm2)
8	0-700~7000kPa(0-7.0~70kgf/cm2)
9	0-2.1~21MPa(0-21~210kgf/cm2)
0	0-4.1~41MPa(0-41~4100kgf/cm2)
Code	Output Signal
E	4-20mA
J	4-20mA + HART
Code	Material
	Flange	Exhaust valve	Diaphragm	Filling Fluid
22	SS316L	SS316L	SS316L	Silicone oil
23	SS316L	SS316L	Hastelloy C
24	SS316L	SS316L	Monel Alloy
25	SS316L	SS316L	Ta
33	Hastelloy C	Hastelloy C	Hastelloy C
35	Hastelloy C	Hastelloy C	Ta
44	Monel Alloy	Monel Alloy	Monel Alloy
Code	Electrical Connection
E1	M20*1.5 with blind plug
E2	G1/2 with blind plug
E3	1/2 NPT(F) with blind plug
Code	Process Connection
M	M20*1.5
G	G1/2
N	1/2NPT(F)

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
