Ppm-T428 Pressure Transmitter with 4~20mA, 0-10VDC Output Signal

Name: Ppm-T428 Pressure Transmitter with 4~20mA, 0-10VDC Output Signal
Brand: all-electronics-online.com
SKU: 830694445
Availability: InStock
Rating: 4.8 (109 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T428
Pressure Range:	60bar
Certification:	CMC

Product Description

Description

The model PPM-T428 Pressure Transmitter adapts sensitive components imported from Germany. The imported sensitive components was precisely packaged in stainless steel housing. It features high accuracy, high sensitivity, long working life. The PPM-T428 is especially designed for gas and water pressure measurement, it is widely applied in water supply,environmental protection equipment,air conditioning.

Features

Measuring range from 0~1bar to 0~60bar.
Output signal : 4~20mA ,0~10VDC,0~5VDC,1~5VDC,0.5~4.5 VDC.
Process connection: M20×1.5, G1/4, G1/2, M14×1.5
Good Shock and Vibration resistance.

Applications
Water supply
Environmental protection equipment
Hydraulic system
Pumps and compressors

Specifications

Measuring medium	Gas, liquid
Pressure type	Sealed pressure(S),Gauge pressure(G)
Measuring range	0~1bar, 0~6bar, 0~10bar, 0~60bar
Power supply	9~32VDC
Output signal	4~20mA,0~5VDC,1~5VDC,0~10VDC,0.5~4.5VDC
Non-linearity	≤0.2%FS
Repeatability	0.2%FS
Accuracy	0.5%FS
Zero temperature drift	≤±0.03%FS/ºC
FS temperature drift	≤±0.03%FS/ºC
Long-term stability	≤±0.25%FS/year
Response time	≤1ms Typical value (10%~90%)
Ambient temperature	-40ºC~+75ºC
Medium temperature	-40ºC~+85ºC
Insulation resistance	≥1000MΩ/100V
Ingress protection	IP65
Process connection	M20×1.5, M14×1.5, G1/4, G1/2, 1/4NPT or other on request
Electric connection	Hirschmann Connector DIN43650
Over pressure	150%FS
Damage pressure	500%FS
Vibration resistance	5~1000Hz
Shock resistance	50g
Material	Diaphragm: Stainless Steel 17-4PH Housing: Stainless Steel 304

Dimensions in mm

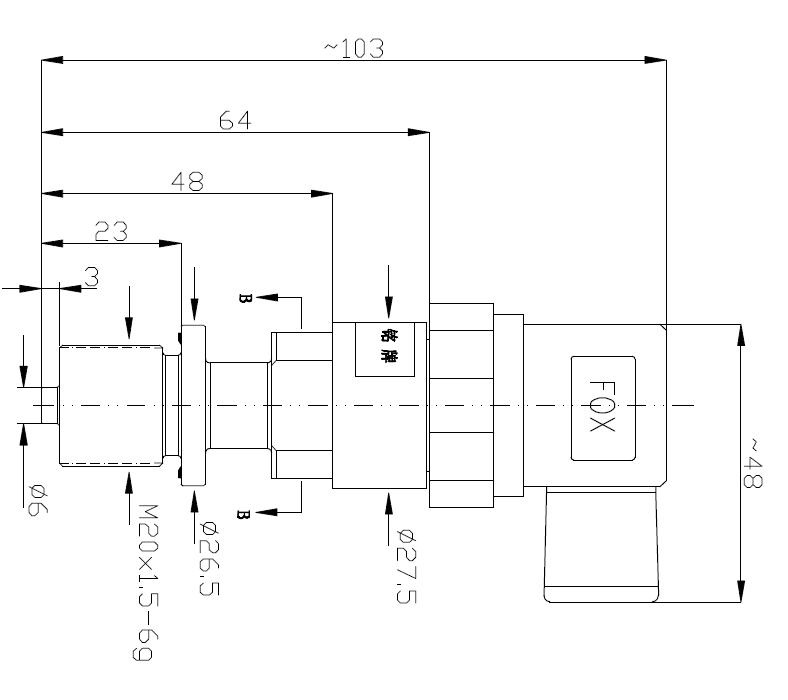

M20×1.5

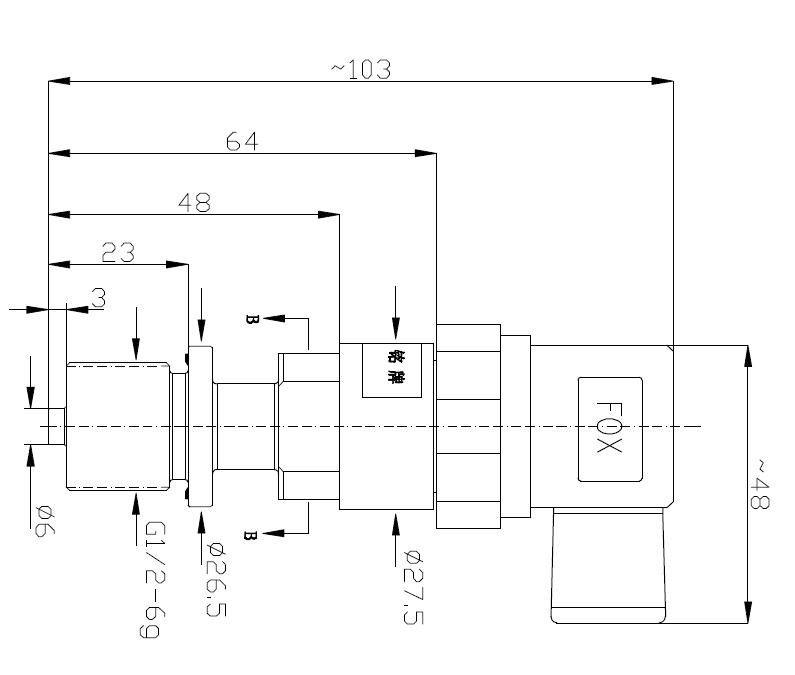

G1/2

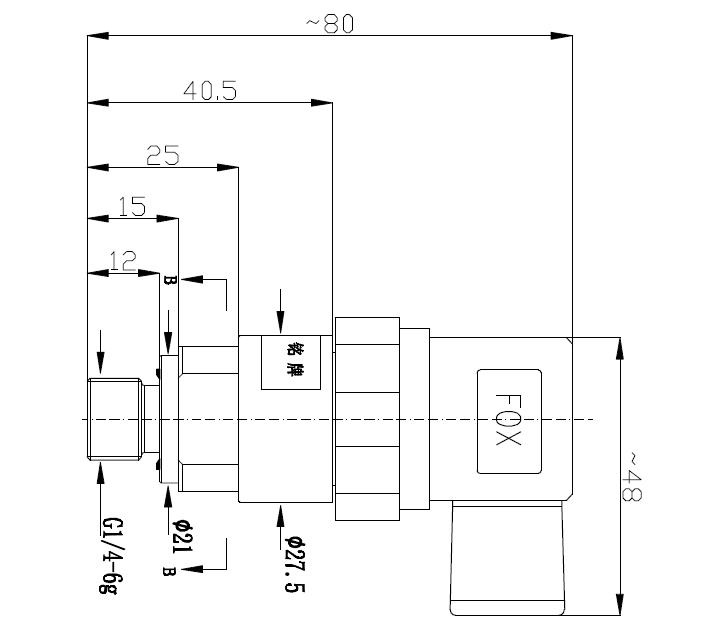

G1/4

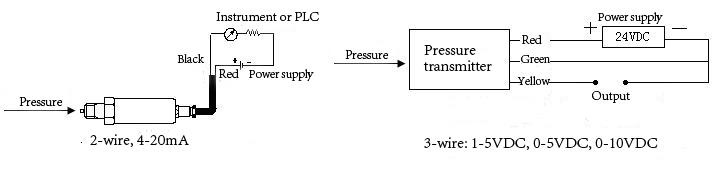

Wiring diagram
