Ppm231-Ty02 Column Load Cell for Truck Scale

Name: Ppm231-Ty02 Column Load Cell for Truck Scale
Brand: all-electronics-online.com
SKU: 835710965
Availability: InStock
Rating: 4.7 (109 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM231-TY02
Certification:	CMC

Product Description

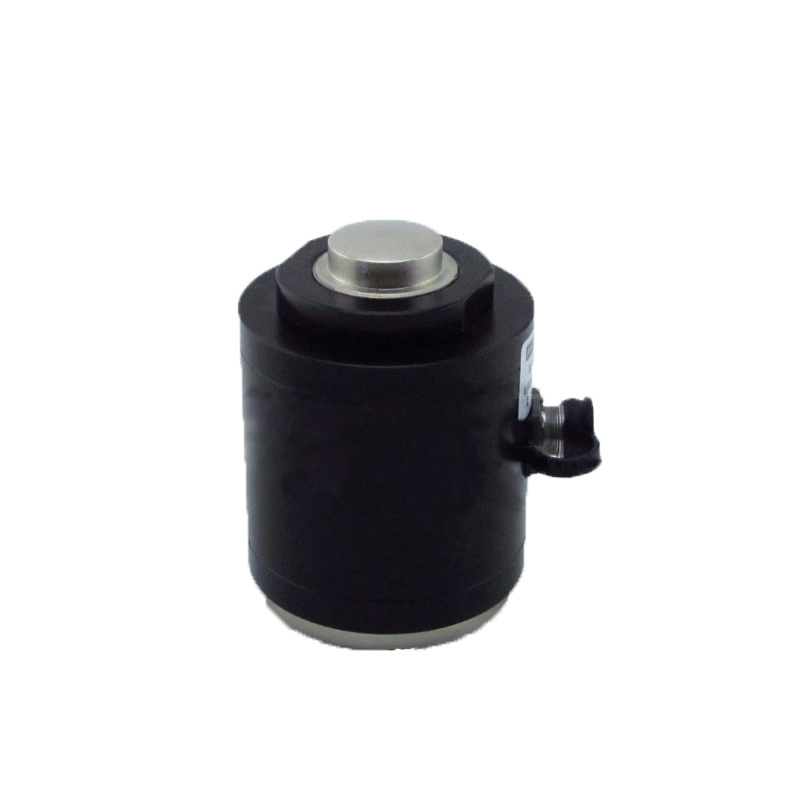

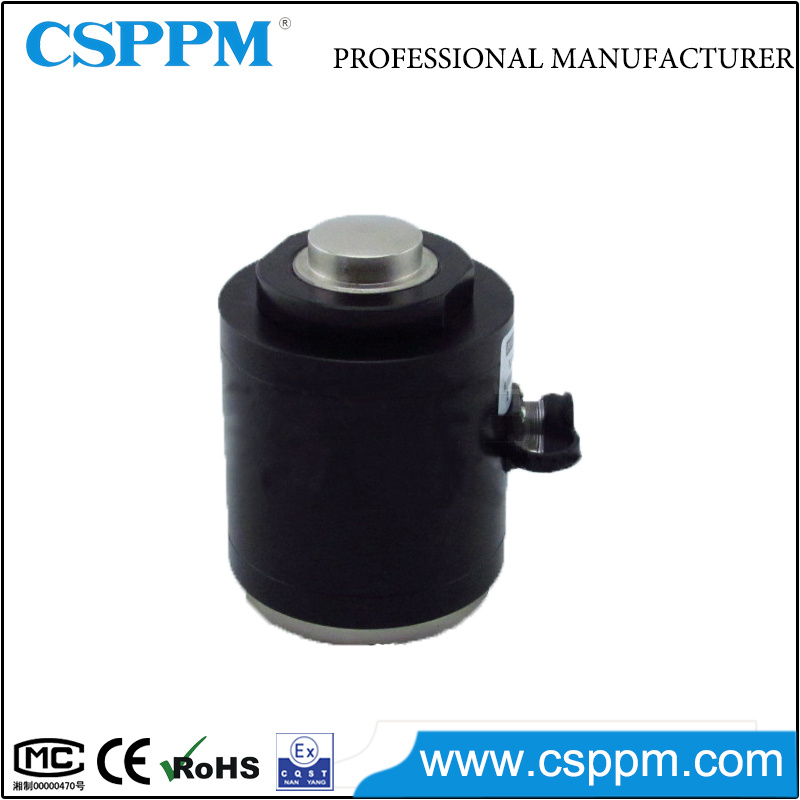

PPM231-TY02 Column Load Cell

Description
PPM231-TY02 load cells are available in the capacities from 0.2t to 200t. Rugged all Alloy construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board in the cable. It features high accuracy and strong character of anti deviated load. It could be applied in hazard area.
PPM230-TY02 load cells are suitable for truck scale, Storage scale, Tank scale, Hopper scale and other large tonnage measurement.

Specification

Rated Load	0.2t, 0.3t, 0.5t, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 200t
Comprehensive precision	0.05FS
Sensitivity	2mV/V
Creep	±0.05%FS/30min
Zero Output	±1%FS
Temperature effect on zero	±0.05%FS/10ºC
Temperature effect on output	±0.05%FS/10ºC
Operating temperature range	-20ºC~+65ºC
Input resistance	380±10Ω
Output resistance	350±3Ω
Insulation resistance	>5000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy steel
Ingress protection	IP65
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

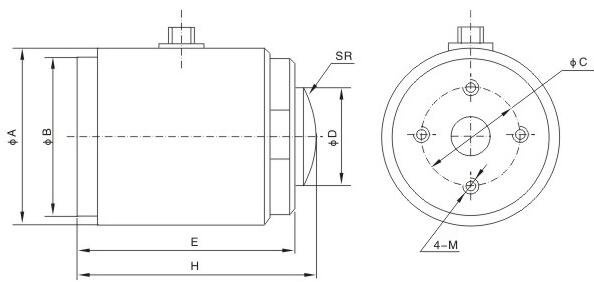

Dimensions: mm

Measuring range(t)	Dimension (mm)
Measuring range(t)	ΦA	ΦB	ΦC	H	E	M	SR	D
0.2~0.7	59	52	30	88	79	5	35	20
1~5	74	68	38	100	91	6	65	28
7~10	86	78	56	130	120	8	85	32
15~30	86	78	56	140	129	10	200	40
40~60	100	92	68	150	133	12	350	80
100	107	98	68	170	156	16	500	80
150~200	158	148	100	220	201	16	1000	120
