Ppm231-Ty03 Column Weighing Sensor for Hopper Scale

Name: Ppm231-Ty03 Column Weighing Sensor for Hopper Scale
Brand: all-electronics-online.com
SKU: 827113915
Availability: InStock
Rating: 4.7 (87 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM231-TY03
Certification:	CMC

Product Description

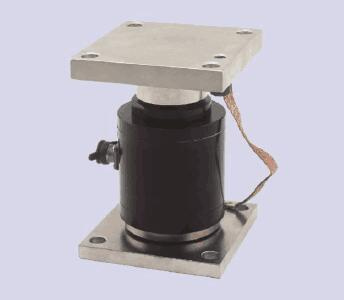

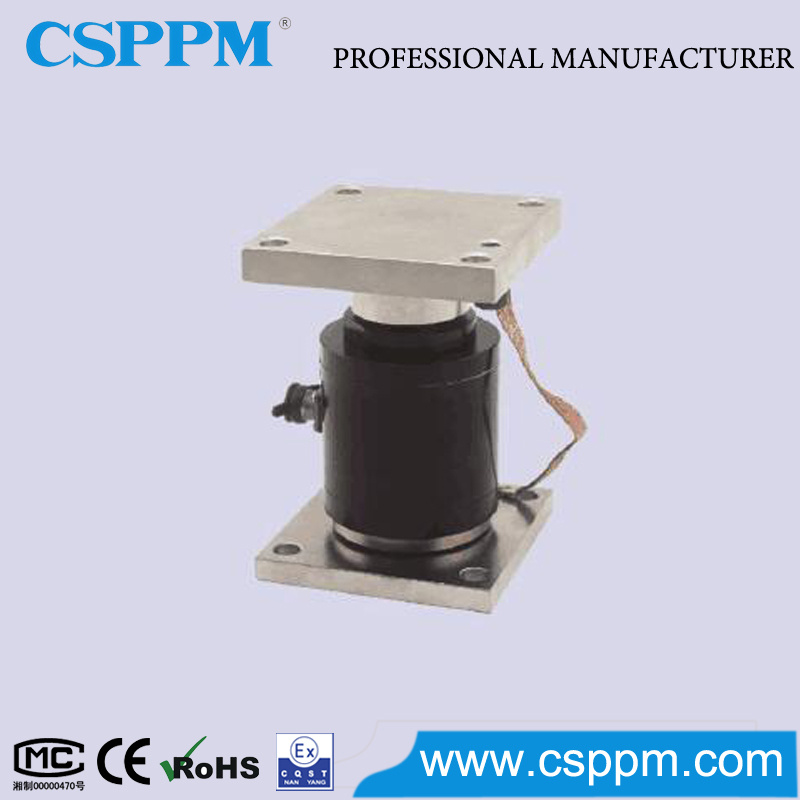

PPM231-TY03 Load Cell

Technical Parameter

Rated Load	1~5t,10t,15~30t,50t,100t
Comprehensive precision	0.05~0.1%FS
Sensitivity	2mV/V
Creep	±0.05%FS/30min
Zero Output	±1%FS
Temperature effect on zero	±0.03%FS/10ºC
Temperature effect on output	±0.03%FS/10ºC
Operating temperature range	-20ºC~+65ºC
Input resistance	380±10Ω
Output resistance	350±3Ω
Insulation resistance	>5000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy steel
Ingress protection	IP65
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

Dimension in mm

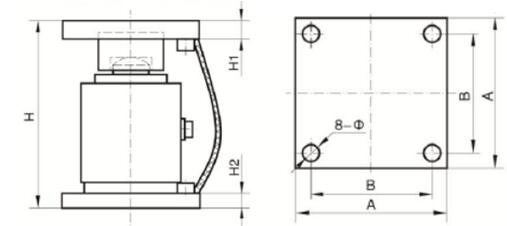

PPM231-TY03 with Mounting kit

Measuring Range(t)	Dimension (mm)
Measuring Range(t)	A	B	H	H1	H2	Φ
1~5	100	80	140	14	11	11
7~10	125	100	188	18	15	11
15~30	125	100	209	20	20	13
40~60	145	115	242	30	30	13
100	150	115	270	30	30	17

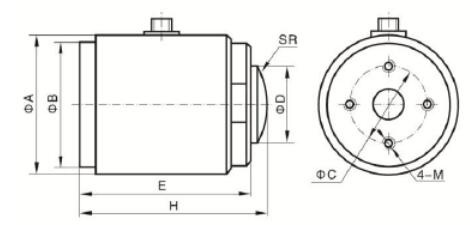

PPM231-TY03 without Mounting kit

Measuring Range(t)	Dimension (mm)
Measuring Range(t)	ΦA	ΦB	ΦC	ΦD	H	E	M	SR
1~5	74	68	38	28	100	91	6	65
7~10	86	78	56	32	130	120	8	85
15~30	86	78	56	40	140	129	10	200
40~60	100	92	68	80	150	133	12	350
100	107	98	68	80	170	156	16	500
