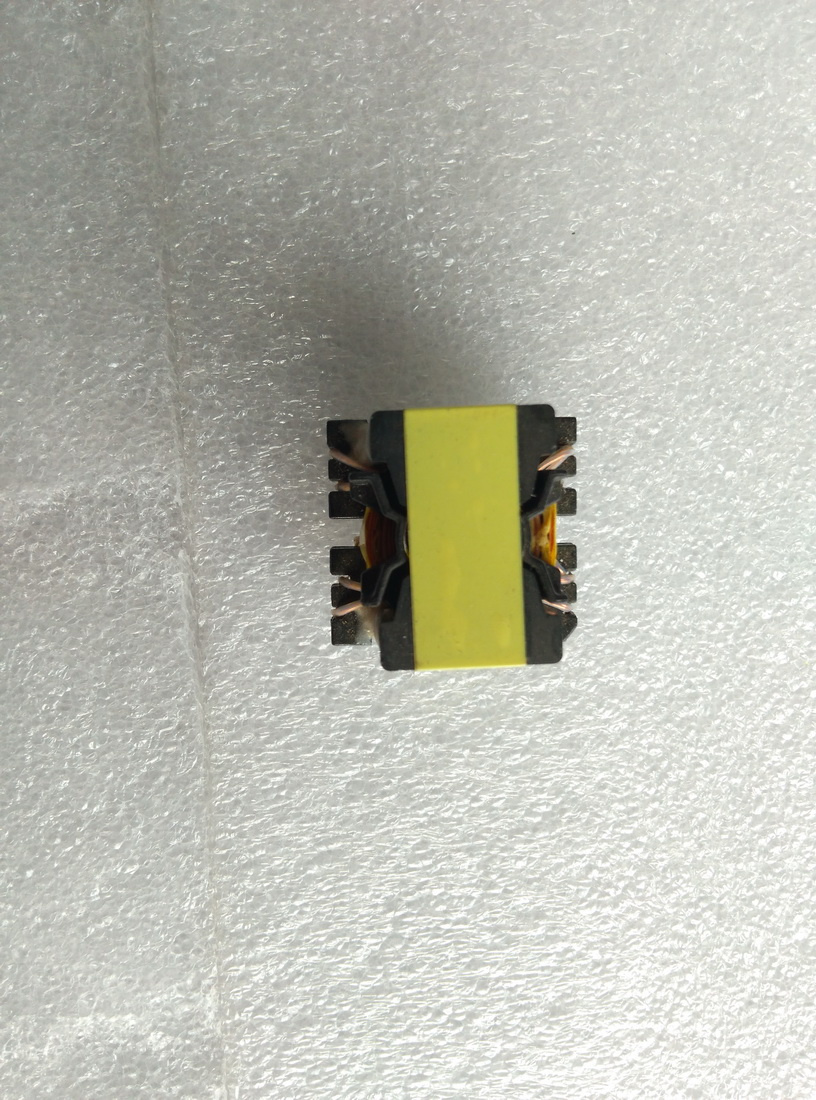

Pq High Frequency Transformer, High Frequency Transformer, Transformer

Name: Pq High Frequency Transformer, High Frequency Transformer, Transformer
Brand: all-electronics-online.com
SKU: 815639635
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	US $ 0.7-1.2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PQ transformer
Application:	Lighting
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Shape Of Coil:	Efd
Brand:	Liwang

Product Description

We're a factory specially produce the transformer, inductor,resistor etc. products.

And our products quality is good,and exported to many countries and regions.

Spec.	Pins	Spec.	Pins	Spec.	Pins
PQ2016	14	PQ2020	14	PQ2620	12
PQ2625	12	PQ3220	12	PQ3230	12
PQ3535	12	PQ5050	12

Applications:

(1) LED lights
(2) Adaptors
(3) Electrical ballasts
(4) Dimmers
(5) Switching power supplies
(6) Electric appliances

PQ Series High Frequency Transformer

1. High Flux Density, Permeability and low Loss Ferrite
2. High Efficiency and Low Heat Generation
3. Designed to Meet Safety Standards: UL, CE, VDE, CQC and RoHS Compliant
4. Operating Temperature Range: -10%ºC--+120ºC
5. Storage Temperature: -30ºC--+130ºC
6. Switching Frequency: 15KHz--200KHz
7. Withstanding voltage: 1500V/3750VAC for One Minute between Primary and Secondary
8. Insulation Ressitance: 500VDC 100MΩ min. between Primary and Secondary
9. Heat Resistance Class: B(130ºC)

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
