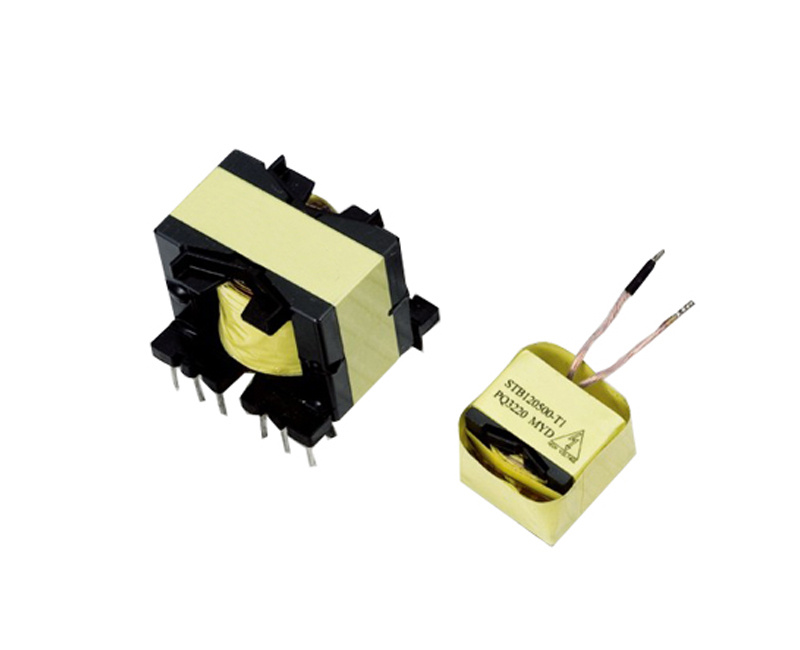

Pq3220 Ee Series High Frequency Power Transformer

Name: Pq3220 Ee Series High Frequency Power Transformer
Brand: all-electronics-online.com
SKU: 729421272
Availability: InStock
Rating: 4.3 (118 reviews)

Price:	US $ 0.3-0.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PQ3220
Warranty:	30000h
Protection:	Short Circuit/Over Load/Over Voltage
Sample:	Free Sample
Lead Time:	10 Days
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer

Product Description

1. Product Description
LIST 1

ITEM	TYPE	MATERIAL	SPEC.		MANUFACTURE	UL NO.
ITEM	TYPE	MATERIAL	ºC	UL94	MANUFACTURE	UL NO.
Maginet WIRE	Φ0.22mm	2UEW-UL	130ºC	N/A	JIANGMEN CITY JIANG CI ELECTRICAL APPLIANCES ENTERPRISE CO LTD	E192838
					DONGGUANYIDASHIYE	E344055
					CHENGWEISHIYE	E227475
TAPE	0.0610mm 0.0617mm	CT-XXX	130ºC	94V-0	JINGJIANG YAHUA PRESSURE SENSITIVE GLUE FTY	E165111(N)
MARGIN TAPE		TEX-E/TIW-M	130ºC	N/A	SHENZHENXILIAN TECHNOLOGY CO.,LTD	E308908
VARNISH	8562/C	MW28	155ºC	94V-0	ADVANCED INK& COATINGS LTD	E200154

LIST 2

ITEM	TYPE	PRODUCT MANUFACTURE	MATERIAL	SPEC.		MATERIAL MANUFACTURE	UL NO.
				ºC	UL94
BOBBIN	PQ26/20	HO JINN INDUSTRIAL CO.,LTD	T375J	150	94V-0	CHANG CHUN PLASTICS CO.,LTD	E59481(S)
						YULONGXIN
TUBE	21L	Great Holding Industrial	TFT	200	VW-1	SENIORELECTRONIC Co,LTD	N/A

LIST3

ITEM	TYPE	MATERIAL	SPEC.		MANUFACTURE	UL NO.
			ºC	UL94
COPER FOIL		CU	N/A		SHNZHEN ZHANGZEXING METALLTIC FOLL
CORE	PQ27/20	PC40	N/A		XUYIOUGE	N/A

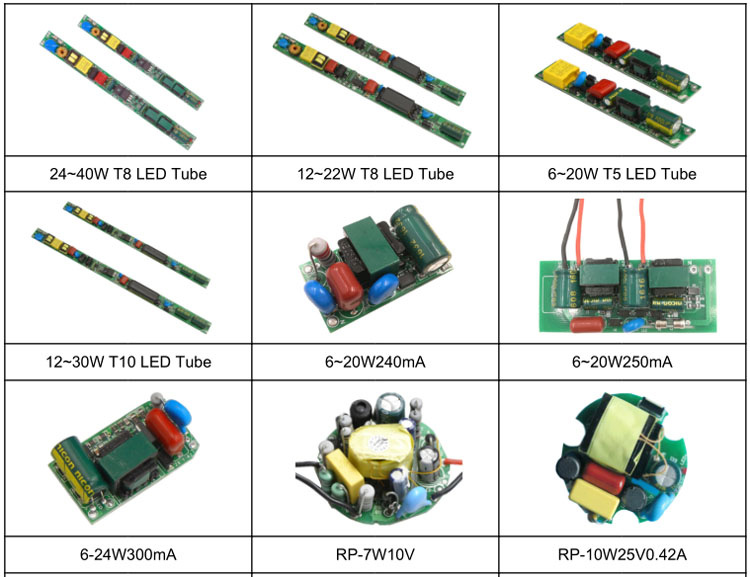

2. Application:

4. Certificate

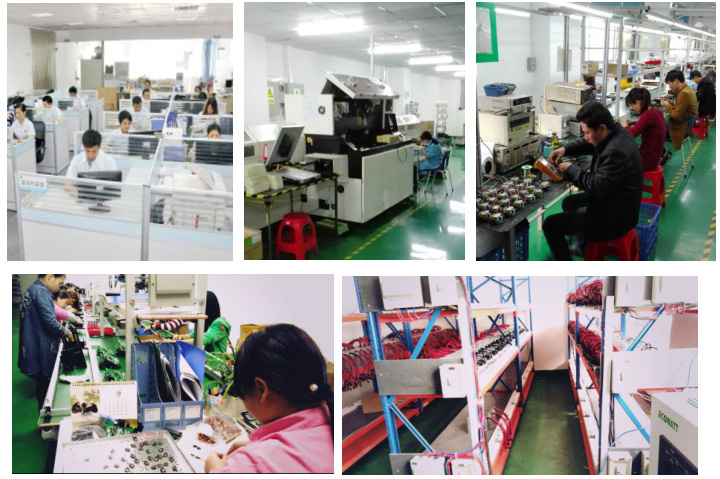

5. About Us:

6. FAQ

Shenzhen Rainbow Power Technology Co., Ltd is a professional manufacturer of Switching Power Supply for LED lighting projects, mechanical equipment, industrial automation, electronic technology, telecommunication, medical appliances and instrument meters etc.

Our main products: LED Driver, LED Power Supply, Switching Power Supply, LED Transformer, AC/DC Adapter etc.

We export to more than 30 countries, such as USA, Canada, Brazil, Columbia, Ecuador, Germany, France, Australia, Malaysia, HongKong, India, Egypt, Pakistan, Greece, UK and so on.

In order to ensure the stability and reliability of our products, Rainbow Power is equipped with many testing equipment for safety. Temperature, magnetic and EMI testing, automatic SMT machine and automatic solder machine etc., We have a team with well-experienced R & D Engineers then we are ready to design and produce your power supply.

Our mission is to provide Excellent quality, competitive price and more value-added service to our clients, all of these makes our core competitiveness get a far-reaching develop and prominent advance.

If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
