Pre-Made Coaxial Cable LMR400 Terminated with TNC Connectors

Name: Pre-Made Coaxial Cable LMR400 Terminated with TNC Connectors
Brand: all-electronics-online.com
SKU: 777100835
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 0.01-2.0/Piece
Trade Terms:	FOB,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc / CCA
Insulation:	Fpe
Jacket:	PVC/PE/Lszh
Feature:	Perferct for Cellphone Signal Booster
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	SGS
Type:	Coaxial
Model:	Coaxial
Brand:	Otto

Product Description

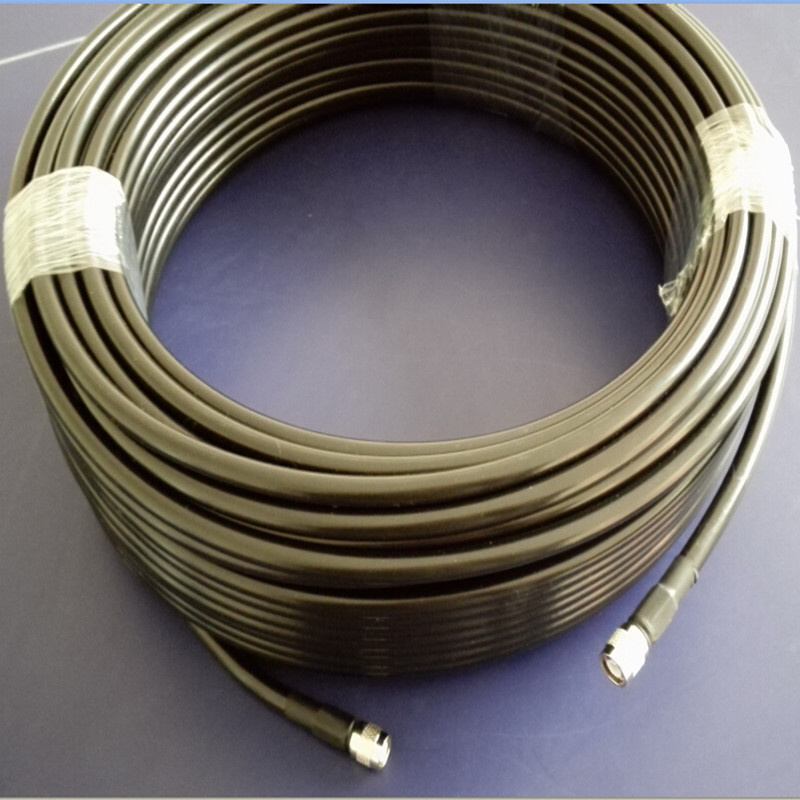

Pre-Made Coaxial Cable LMR400 Terminated with TNC Connectors

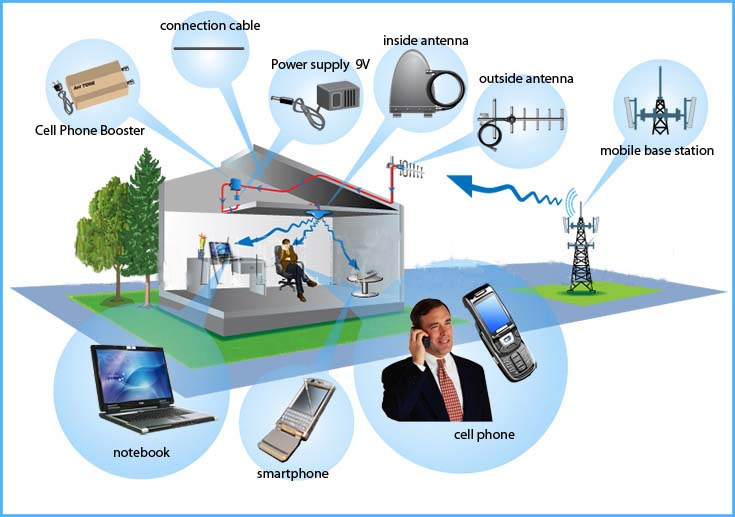

Coaxial Cable LMR400 with N type connector, designed for cellphone signal booster / repeater, antennas.

This LMR400 coaxial cable has good attenuation, return loss, shielding effectiveness, usually fixed with
connectors such as N type, BNC, TNC, SMA and etc. This LMR400 cable and its assemblies works very well with cellphone signal boosters, repeaters and have already been widely used to DAS,radio transmission,base station and other communication systems.

Spec:

Connector Type: TNC male straight, nickle plated brass

Cable Length: 100M/PCS, can also be made as per customers requirements.

Coaxial Cable LMR400
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper / Copper Clad Aluminum		2.74
Dielectric	Foam PE		7.24
First Shield	Bonded Aluminum Foil		7.39
Second Shield	Tinned Copper / AL-Mg Wire Braid		8.13
Jacket	PVC		10.29

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@450MHz	9.7
Velocity of Propagation(%)	85	@900MHz	13.8
Return Loss(dB)	≥18	@1500MHz	18.0
Capacitance	78.4	@1800MHz	20.1
Shielding Effectiveness(dB)	≥90	@2000MHz	21.6
Operating Temperature(ºC)	-30 to +70	@2500MHz	24.5

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
