| Prod Model: |
JFF-M20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Home Appliance, Audio and Visual Equipments |
| Torque: |
<10g.Cm |
| Speed(Rpm): |
as Your Requirement |
| Continuous Current(a): |
<0.1A |
| Output Power: |
0.05W~0.5W |
| Voltage(V): |
1.2V-6V |
| Power: |
Low Power |
| Brush: |
Metal Brush |
| Material: |
RoHS Material |
| Application: |
Audio and Visual Equipments ;Electric Shaver |
| Operating Speed: |
High Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Casing Protection: |
Totally Enclosed |
| Number Of Poles: |
Ie 1 |
| Type: |
Micro Motor |
| Certification: |
Ce, RoHS, ISO9001:2000 |
| Brand: |
Kinglymotor |
Product Description
Packaging & DeliveryPackaging Details:Each into special foam box, and then into the standard carton
Delivery Time:15Days
Specifications1.1.5 to 3v dc motor, micro dc motor, for CD/DVD player
2.DC Motor, CE, ROHS certified
3.Long life, low speed, low noise
4.Precious metal-brush motor
5.Motor Voltage:3v

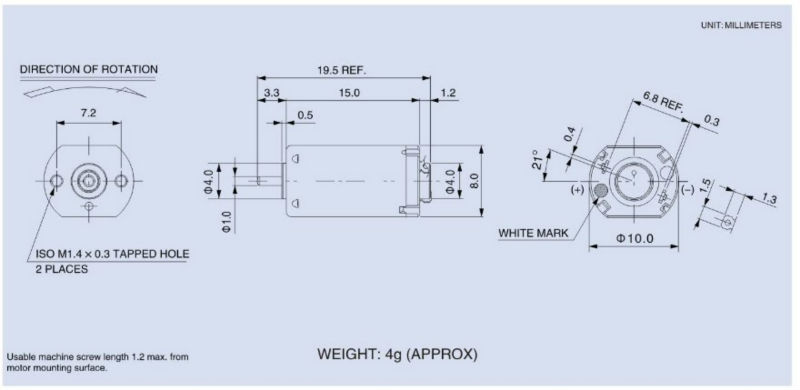

6 .Motor Diameter:10.0mm length:15mm The shaft:dia 1mm
7 .Motor weight: 4g
8 .Typical Aplications:
Typical Applications:Audio and Visual Equipments: MD Player/Car CD Player/Camcorder
Precision Instruments: Camera
Househole Appliances: Electric Shaver
Motors specification and sha ft length can be tailor-made according to cuesomer's requirements

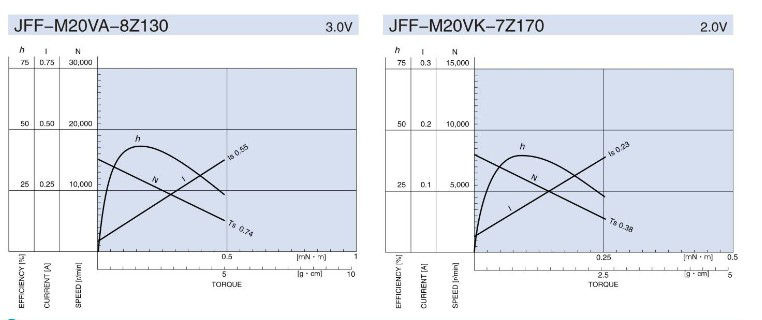

MODEL |
VOLTAGE | NO- LOAD | AT MAXIMUM EFFICIENCY | STALL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| OPERATING RANGE | NOMINAL | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A |
| JFF-M20VA-8Z130 | DC 2.0-3.0V | DC 3.0V | 15200 | 0.045 | 11820 | 0.16 | 0.16 | 1.7 | 0.20 | 0.74 | 7.6 | 0.55 |
| JFF-M20VA-10100 | DC 1.2-3.5V | DC 2.4V | 15800 | 0.056 | 12410 | 0.20 | 0.18 | 1.8 | 0.23 | 0.84 | 8.6 | 0.75 |
| JFF-M20VA-7Z170 | DC 2.0-4.0V | DC 2.0V | 8000 | 0.025 | 6020 | 0.076 | 0.094 | 0.96 | 0.059 | 0.38 | 3.9 | 0.23 |
