| Prod Model: |
SLT42S01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angel Accuracy: |
+/-5% |
| Resistance Accuracy: |
+/-10% |
| Inductance Accuracy: |
+/-20% |
| Temperature Rise: |
80° C Max |
| Ambient Temperature: |
-10oc-+50oc |
| Insulation Resistance: |
100mmin.500 VDC; |
| Dielectric Strength: |
500V AC for One Minute |
| Shaft Radial Play: |
0.06max |
| Shaft Axial Play: |
0.08max |
| Number Of Stator: |
Three-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
The Three Single Phase |
| Type: |
Magnetic-Electric |
| Brand: |
Slt |
Product Description
product description:
1,step angel accuracy:+/-5%( full step,no load);
2,Resistance accuracy:+/-10%;
3,Inductance Accuracy:+/-20%;
4,:Temperature Rise:80° C Max.(rated current, 2phase on);
5,Ambient Temperature:-10ºC-+50ºC;
6,Insulation Resistance:100MMin.500 VDC;
7,Dielectric Strength:500V AC for one minute;
8,Shaft Radial play:0.06Max. (450g-load);
9,Shaft Axial play:0.08Max. (450g-load);
10,Insulation Cldss:Class B 130°

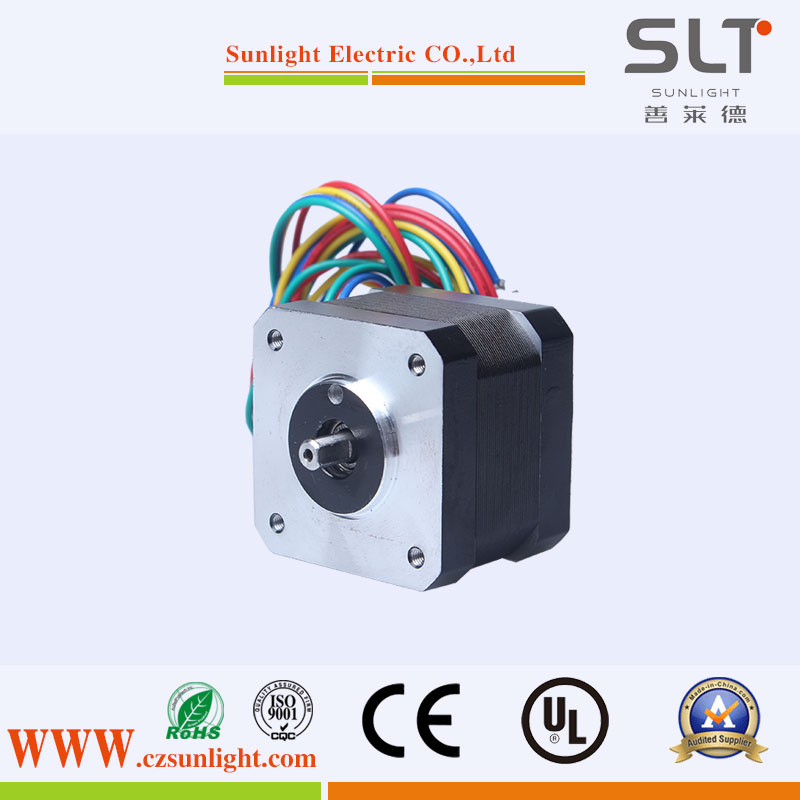

The specification of Precise Mini Electric Stepper Motor for Medical Instrument | Technique Specification |
|
|
|
|
|
| model |
| single shaft | single shaft | single shaft | single shaft |
| 42H33M-0606A | 42H33M-0406A | 42H33M-0316A | 42H33M-1334A |
| double shaft | double shaft | double shaft | double shaft |
| 42H33M-0606B | 42H33M-0406B | 42H33M-0316B | 42H33M-1334B |
| voltage | V | 4 | 4 | 12 | 2.8 |
| current | A | 0.6 | 0.4 | 0.31 | 1.33 |
| Phrase Resistance |
| 4.2 | 10 | 38.5 | 2.1 |
| Phrase Inductance | mH | 4 | 9.5 | 33 | 4.2 |
| Holding Torque | Oz-in | 22 | 22 | 22 | 30 |
| g-cm | 1580 | 1580 | 1580 | 2200 |
| Lead Wire | No. | 6 | 6 | 6 | 4 |
| Rotor Inertia | g-cm2 | 35 | 35 | 35 | 35 |
| Motor Weight | Kg | 0.22 | 0.22 | 0.22 | 0.22 |
| Motor Length | mm | 33 | 33 | 33 | 33 |

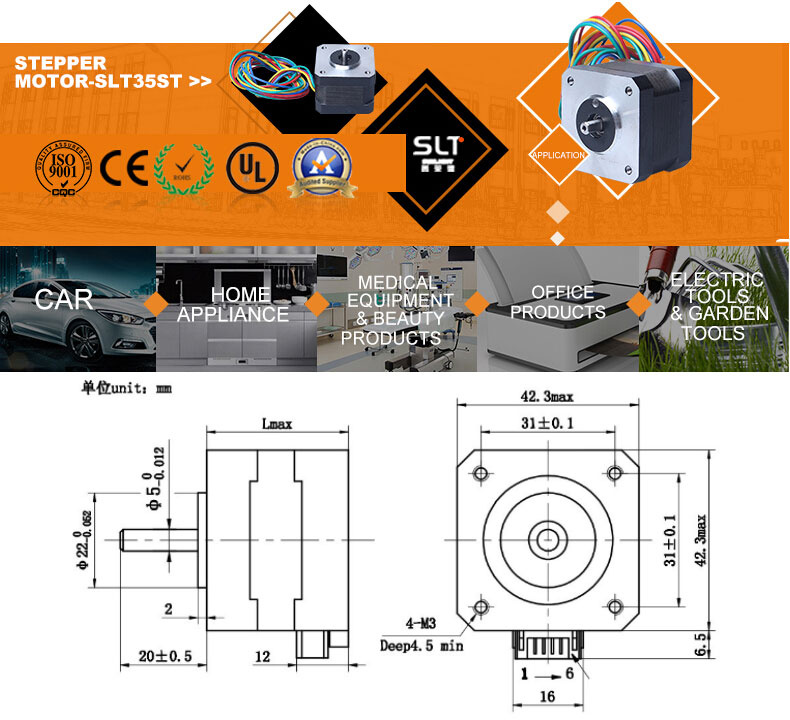

Application of Precise Mini Electric Stepper Motor for Medical Instrument
a.Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
b.Home Appliance ( Electric cooker, Electric mop and other products.)Medical equipment and beauty products.
c.Office products (such as printer, scanner......)
d.Electric tools and garden tools.
