Precision ANSI 5A CT 15kv Indoor Current Transformer

Name: Precision ANSI 5A CT 15kv Indoor Current Transformer
Brand: all-electronics-online.com
SKU: 722317952
Availability: InStock
Rating: 4.5 (96 reviews)

Price:	US $ 35/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GFLZZ0224-10
Keyword:	15kv Indoor Current Transformer
Model:	15kv Indoor CT
Gflzz0224-10:	Precision ANSI 5A CT
Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated Primary Current:	10-600A
Rated Load:	10va
Rated Frequency:	50Hz or 60Hz
Rated Secondary Current:	5A or 1A
Material:	Epoxy Resin
Color:	Red
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

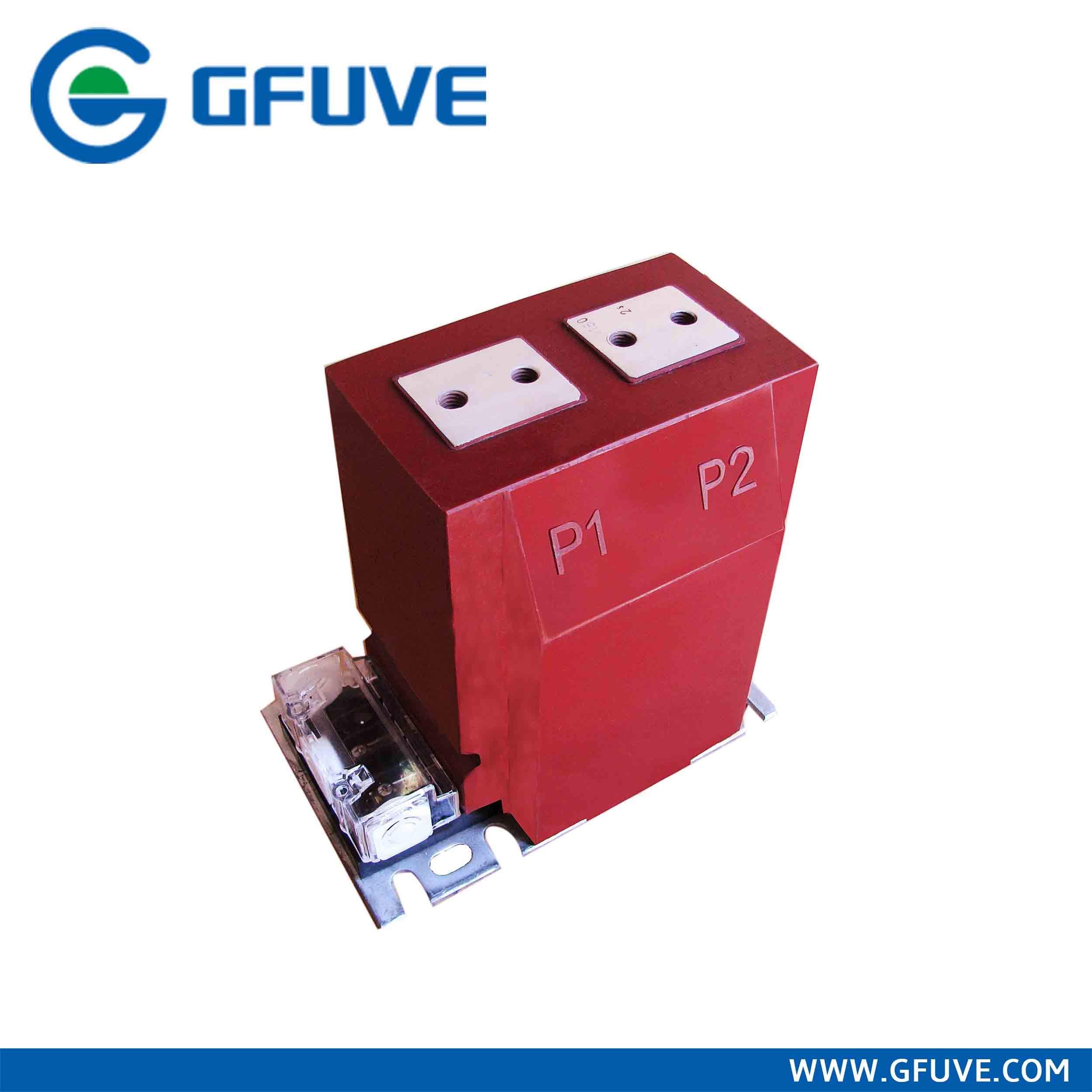

Presicion ANSI 5A ct 15KV indoor current transformer
The dry type 15kv indoor current transformers GFLZZ0224-10 are cast in epoxy resin insulated with big surface creepage distance and are excellent in anti-pollution and humidity protection. With high grade accuracy, it is suitable for protection against large short-circuit current, secondary current output 1A or 5A. The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13.
Parameters

Technical parameters
Standards	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated primary current	5-1250A
Rated load	≤15VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	140kA, 1S
Rated dynamic current	350KA
Rated insulation level	12/42/75KV
FS	≤10
Mechanical parameters
Material	Epoxy resin
Weight (kg)	32
Operating conditions
Operating temperature	-25°C to +55°C
Daily average temp	<+40°C
Storage temperature	-40°C to +70°C
Altitude	<1000 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

Technical parameters

Ratied Primary Current(A)	Class Combination	Accuracy class and Rated output(VA)	Short-time thermal current(kA/S)	Rated dynamic current(kA)
0.5	10P10
5-150	0.2(S)/10P10 0.5/10P10	10	15	150 I1n	375 I1n
200				36	90
300				45	100
400-600				63	150
800-1000				100	250
1250				140	350
