| Prod Model: |
Honhai Boro tube 04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Precision Glass Micro Bore Tubing |
| Preciseness: |
Tolerance up to 0.001mm |
| Glass Kind: |
Soda Lime, Borosilicate, Quartz, Lead Glass |
| Property: |
High Precision in Size |
| Process: |
Second Drawing |
| Packing: |
Shrink Wrap Bag +Carton |
| Capacity: |
20000PCS Per Day |
| Delivery Time: |
15 Days |
| MOQ: |
5000PCS |
| Transmission Medium: |
Multimode |
| Structure: |
MT |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
APC |
Product Description

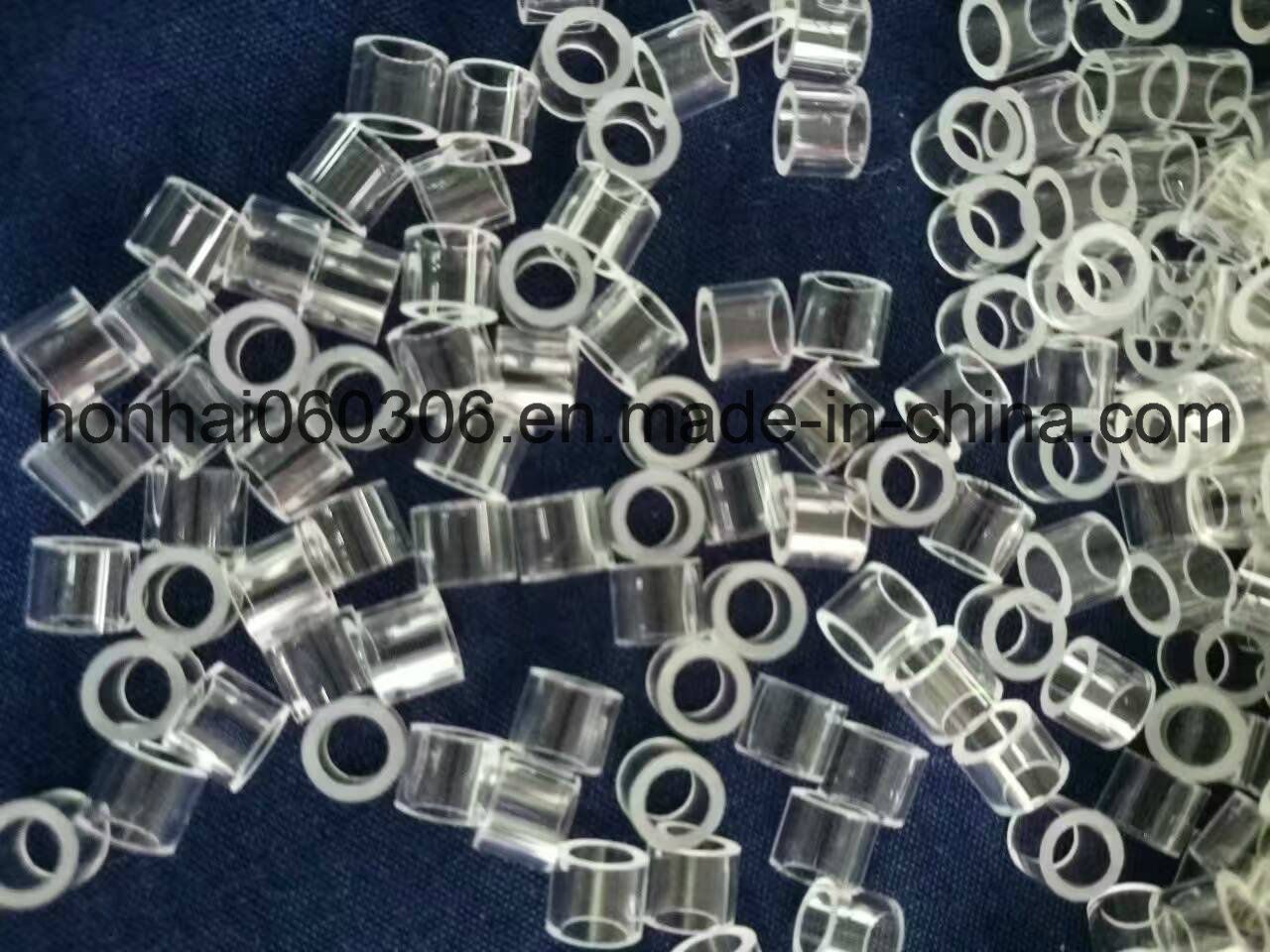

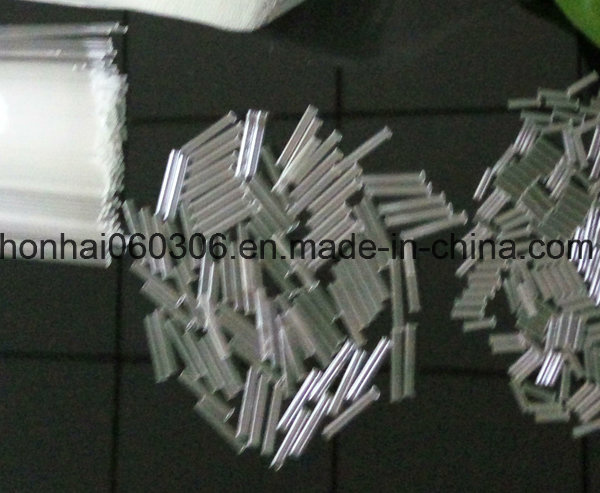

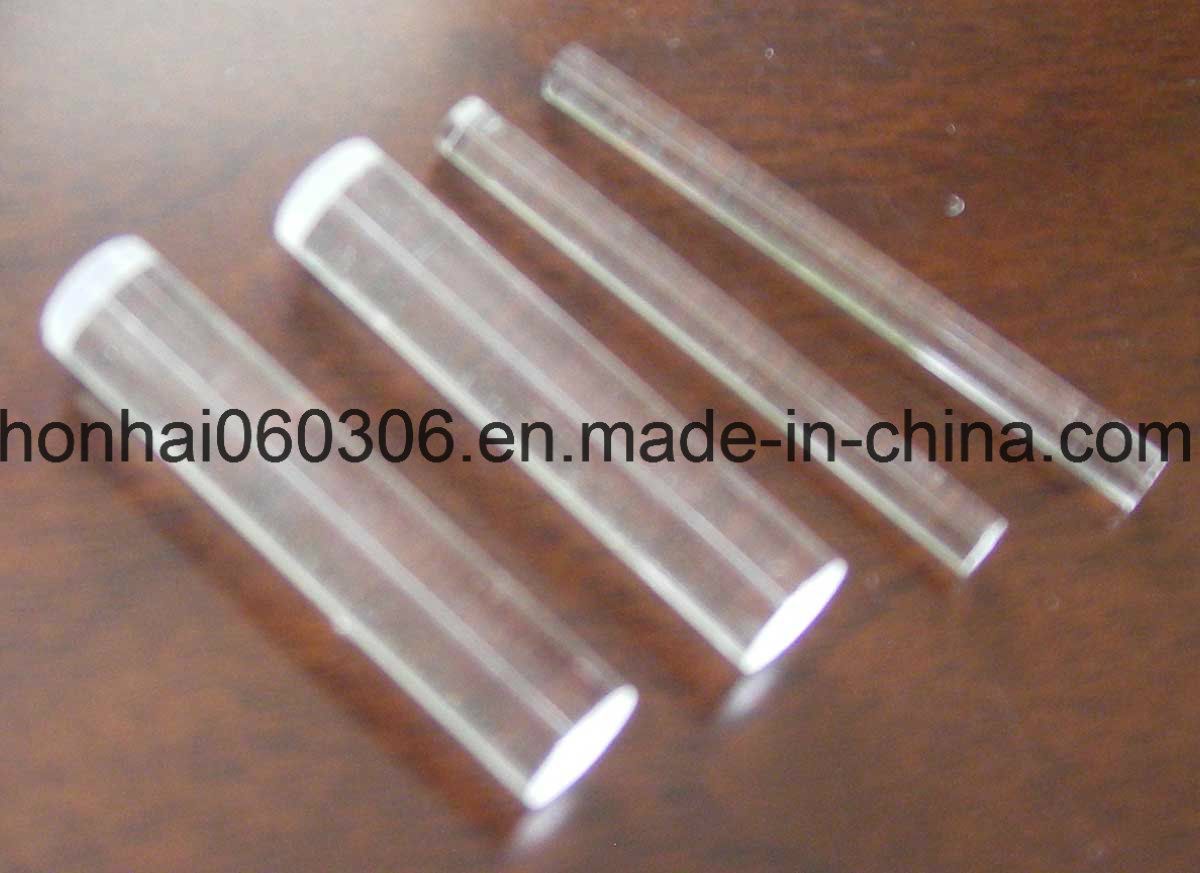

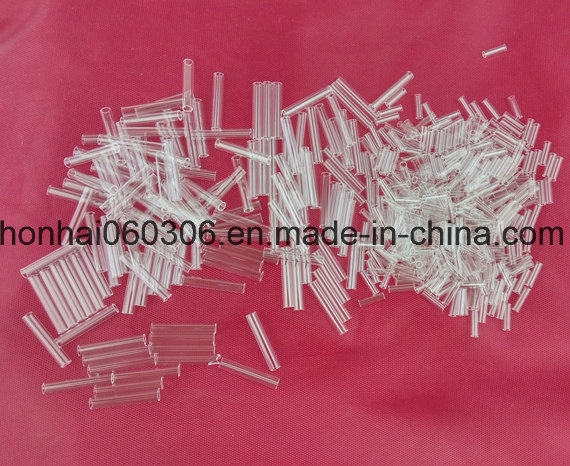

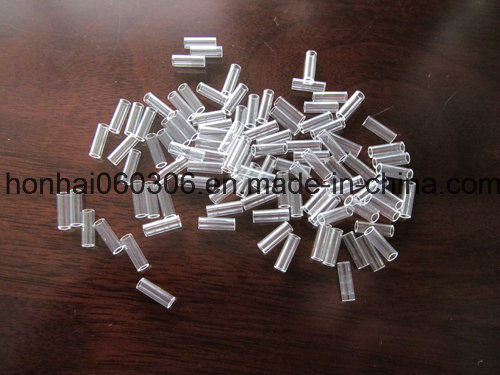

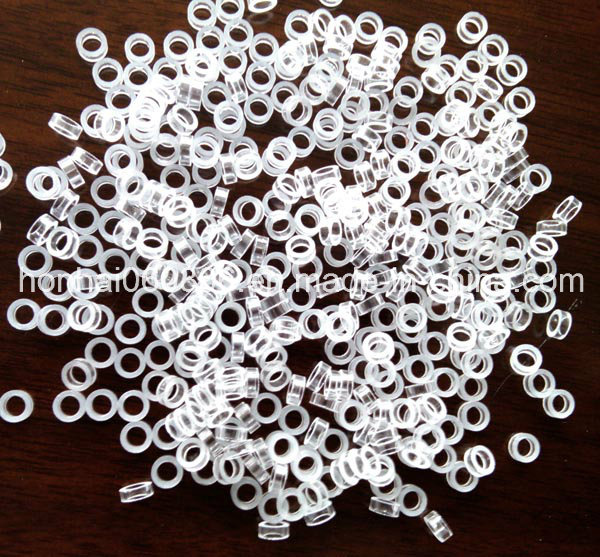

Precision Glass Micro Bore Tubing
Glass Micro Bore Tubing provides precise and constant flow rate delivery, which make ideal flow restrictors. Custom Micro Bore glass tubing flow restrictors are made to your exacting size, inside diameter (ID) or outside diameter (OD) tolerance, concentricity or roundness specifications. Precision multi-hole or multi-bore capillaries, specialty shapes, or added colors are available.
After cutting, the glass flow restrictors can be tumbled with ceramic media to remove the sharp edges. This is preferred when the Micro Bore glass flow restrictor is inserted into a plastic housing as a sharp glass edge can skive the plastic. Accu-Glass can also 100% flow test the restrictors in automatic test equipment.
Finally, the parts are thoroughly cleaned and dried. They can be packaged in bulk with plastic-lined shippers or shrink packaged to prevent the part from movement during shipment.
Using Accu-Glass' automated processing, the finished product can be 100% flow-checked and sorted to ensure compliance with your specifications.
Glass Micro Bore Tube Features
Producible with an inside diameter as small as 25 microns ± 1 micron
Dimensionally stable and uniform over a specific length
Inert and Non-reactive to drugs
Custom-sized to IV tube sets
Suitable for ETO / E-Beam / Gamma Radiation sterilization methods
Economically produced to custom applications (sizes, geometries, lengths, lumens, bores. )
Compatible with UV adhesive curing
| | Available size range (ID: mm) | Tolerance (mm) |
| Type 1 | 0.1~0.3 | ±0.002 |
| Type 2 | 0.3~2.0 | ±0.002 |
| Type 3 | 2.0~3.0 | ±0.005 |
| Type 4 | 3.0~5.0 | ±0.01 |
ShanDong HonHai Industrial Group Company Limited who produces and supplies borosilicate glass tube, rod and its related glassblowing articles, glass ceramic, borosilicate glass sheets, borosilicate moulded glassware, pharmaceutical glass packaging, lamp lighting glass shell and daily consumer glassware. Jinan HonHai Glass Company Limited, as a member of ShanDong HonHai Industrial Group Company Limited, is handling international business of the whole group.
Ø Division for borosilicate glass tube, rod and its related glassblowing articles
We started to manufacture borosilicate 3.3 colored and clear glass tubing, rod (Vello & Danner) and its related glassblowing articles since 1994 through importing Japanese NEG's and Germany equipment & technology. Now we have annual capability to draw glass tube over 150, 000 metric tons, which makes us the leading Chinese manufacture in this field. Thanks to our continous process improvements, we have been drawing glass tube with highly precise dimensions in China.
We also redraw (secondary processing on tubing) high precision bore glass & quartz tube for optoelectronic, fibre optics telecommunication, medical and other special applications.
Besides, we make scientific laboratory glassware, heat resistant glass tea & coffee sets, glass bong water pipes, glass baby feeding bottles, lamp glass shell and others glassblowing products.
Ø Division for borosilicate moulded glassware
Due to our expertise in electrically melted glass furnaces control technology, we set up a new factory in the year 2001 to make heat resistant baking dishes, Casseroles, food storage glass jars and others that are oven, microwave, freezer (refrigerator), dishwasher free.
Now we have annual capability around 5, 000 metric tons.
Ø Division for pharmaceutical glass packaging
From the year 1996 we enter into pharmaceutical glass packaging industry, produce neutral borosilicate pharmaceutical glass tube USP TYPE I, tubular glass vial & ampoule, glass cartridge, glass prefillable syringes.
Now we have annual turnover around US dollar thirty million.
Ø Division for lamp lighting glass
In the year 1999 we set up factory for making lamp lighting glass including soda lime glass tube, lead glass tube, lead free glass tube, lamp & lantern glass cover/shade/shell/globe/chimney
Ø Division for daily consumer glassware
In the year 2005 we expanded our production to make glass cosmetic containers, glass kitchenware and Tableware.
Particularly, we've successfully developed flat borosilicate 3.3 floated glass sheet and glass ceramic which enjoys a good reputation in the United States and Europe.
Our factories are equipped with advanced machinery with production know-how, strict and complete quality management and supervision system as well as friendly customer service. Holding a business principle of "Honesty, Cooperation, Win-Win", we concentrate on continuous quality improvement and upgrade. We take it as our responsibility to satisfy customers' requirements, and innovate market demand.
We well know about glass and respect customers' requests. We will improve, upgrade and innovate products all the time.
Let us rethink, rediscover and reinvent glass!
