| Prod Model: |
WNK80mA |
| Model No.: |
W21 |
| Output Signal: |
4-20mA, I2c, 0.5V-4.5V |
| Usage: |
Pressure Measurement |
| Pressure Range: |
0-300kpa^10MPa |
| Compensation Temperature: |
-20~70c |
| Pressure Reference: |
Gauge, Sealed Pressure |
| Place Of Origin: |
Heifei, Anhui, China |
| Type: |
Ceramic Capacitive Pressure Sensor |
| For: |
Gauge & Sealing Pressure Measurement |
| Output Signal Type: |
Analog & Digital Type |
| Material: |
Al2O3 |
| Wiring Type: |
Two Wire, Three Wire |
| Measuring Medium: |
Liquid, Gas, Vapour |
Product Description

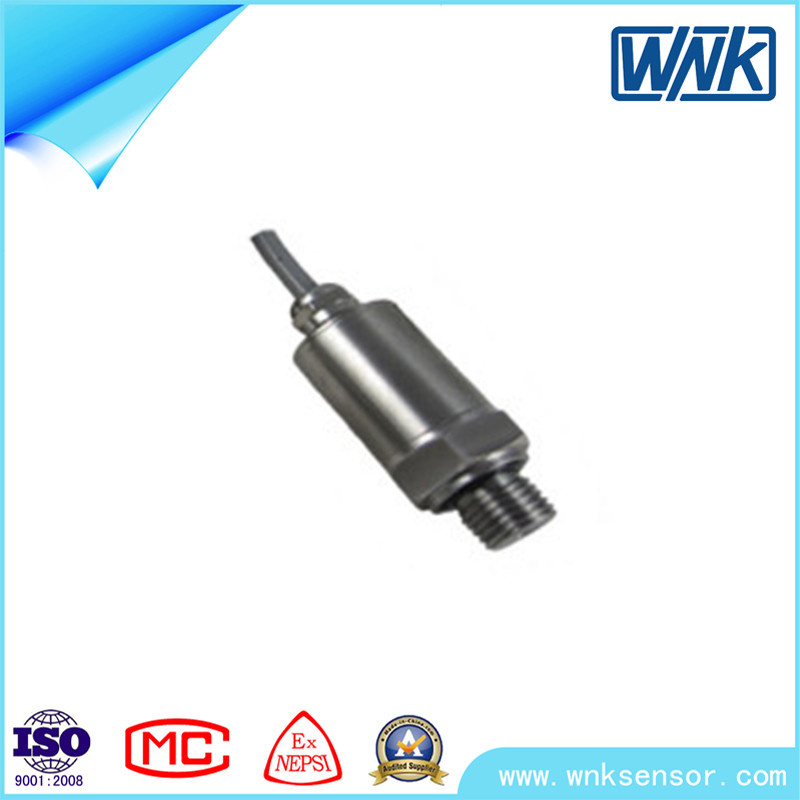

Precision Micro-Machined Pressure Transducers and TransmittersWNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Application•Pressure measurement of gas, vapor or liquid in various areas;
•Liquid level, volume or mass measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;Features •Specific high performance ASIC conditioning circuit;
•Dry ceramic capacitive pressure sensor;
•Robust ceramic capacitive sensitive membrane;
•Excellent anti-corrosive and anti-wear performance;
•Suitable for pollution and corrosive environment;
•Various electrical connectors optional;
•Rapid response, no hysteresis;
•Wide operating temperature range -40~135ºC;•Anti-icing;•0.5…4.5V and 4…20mA analog output or I2C and SPI digital output;Technical data| Applicable media | Liquid, Gas |
| Pressure range | 0-20kPa~350bar |
| Pressure measurment | Gauge Pressure, Absolute pressure, Sealing pressure |
| Output | 4-20mA/0.5-4.5V/1 -5V/0-5V |
| Accuracy(linearity,Hysteresis and Repeatability) | 0.5%F.S.(Typical) |
| Power supply | 24VDC/12VDC/5VDC |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |
| power(electrical) connect | Parker,M12, Cable, Small Hirschmann |
| Mechanical connection | G1/4, 1/8NPT,M12*1.5, customize |
| Housing material | 304 stainless steel(inner core is 316 stainless steel) |
| Protection | IP65 |
| Weight | 95g |
Ordering Sheet | Model | Product description |
| WNK80MA | Pressure Transmitter |
| Code | Pressure type |
| A | Absolute pressure |
| G | Gauge pressure |
| S | Sealing pressure |
| Code | Accuracy |
| F | 0.5% |
| O | 1% |
| Code | Sensor range |
| A | 5bar |
| B | 10 bar |
| C | 20 bar |
| D | 50 bar |
| E | 100 bar |
| Other ranges are in developing |
| Code | Output |
| 1 | 0.5…4.5V |
| 2 | 4…20mA |
| 3 | I2C |
| 4 | SPI |
| 5 | Customization |
| Pls contact WNK for other outputs |
| Code | Electrical connector |
| C1 | Packard |
| C2 | M12×1P |
| C3 | Cable outlet(pls put down cable length, such as 01 for 1 meters) |
| C4 | Mini DIN43650 |
| Code | Process connector |
| P1 | G1/4 |
| P2 | 1/4-18NPT |
| P3 | 1/8-27NPT |
| P4 | M14×1.5 |
| P5 | M12×1.5 |
| P6 | 1/4-19PT |
| P7 | 7/16-20UF(female) |
| P8 | Customization |
| Pls contact WNK for other process connectors |
Typical model:WNK80MA GB2 C1 P1
WNK80MA GB2 C301 P1________C3 direct cable outlet length is 1 meter. |
Why Choose us?1. We are professional manufacturer with own R&D and sales team, experienced producing experience in transmitters & sensors since 2004.
2. We have strict quality control system, each set product we do temperature compensation and aging test before shipment, so the quality is guaranteed.
Delivery7~15 days after order confirmed
FAQQ1: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q2: What's your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q3: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q4: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q5: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q6: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.Contact
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
