Preformed Guy Grips /Dead End Clamp

Name: Preformed Guy Grips /Dead End Clamp
Brand: all-electronics-online.com
SKU: 748485795
Availability: InStock
Rating: 4.5 (35 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4x100mm2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Metal:	Steel
Application:	High-voltage
Material:	Steel
Structure:	Steel
Type:	Steel
Brand:	Haivol

Product Description

Application

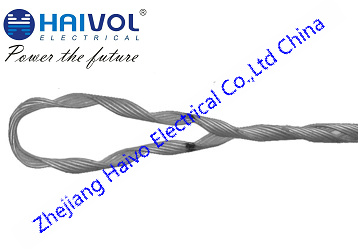

Pole Make Off is a complimentary fitting to the Guy Cable Grip, it is in effect a custom built Pole Top Stay
Description
It is consists of a single set of 3 galvanized steel wires of 1400 Mpa strength, helically formed with a single unformed 700 Mpa core wire. The central part of the Make Off is double wrapped onto the pole top, after which the two legs are wrapped over the unformed wire to form a seven strand stay of similar strength and diameter to that of a normal stay wire, the minimum effective "stay" length is 1800 mm. The central "king" wire is of sufficient length that the parts above the crossover may be utilized as an earth bond.

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
