Presicion ANSI 5A Cts Indoor Current Transformer

Name: Presicion ANSI 5A Cts Indoor Current Transformer
Brand: all-electronics-online.com
SKU: 721070952
Availability: InStock
Rating: 4.9 (121 reviews)

Price:	US $ 1000/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GFLZZ0944-10C1
Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated Primary Current:	5-1000A
Rated Frequency:	50Hz or 60Hz
Rated Secondary Current:	5A or 1A
Rated Dynamic Current:	130ka
Rated Insulation Level:	12/42/75kv
Accuracy Class:	0.2s, 0.5, 10p10
Color:	Red
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

GFLZZ0944-10C1 Current Transformer
The current transformer of the type GFLZZ0944-10C1 is casting resins and fully enclosed. It is used for metering electric energy and current, relay protection in the electrical system up to rated frequency 50Hz of 60Hz and rated voltage 11kV. The current instrument transformers can be executed according to the standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13.

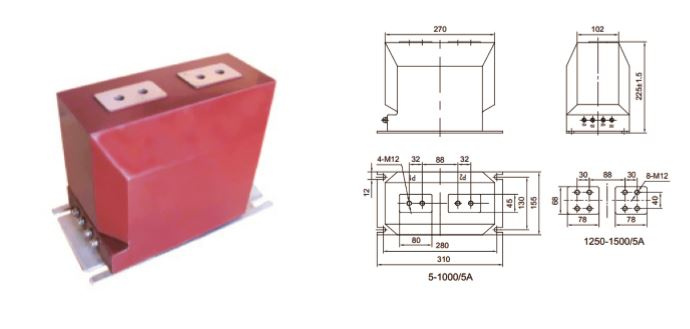

Outline Drawing

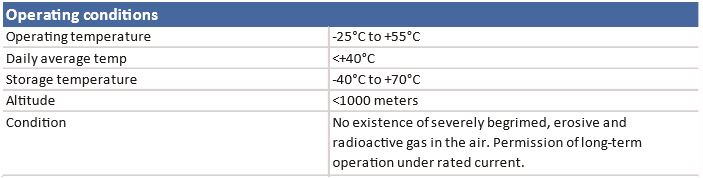

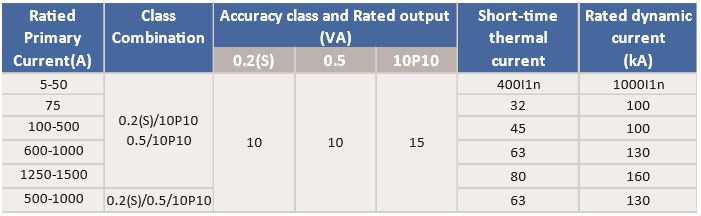

Parameters

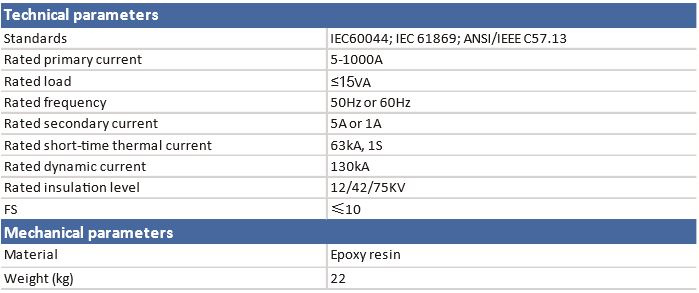

Technical parameters
