Press (Hydraulic or Pneumatic) Verification Testing Load Cell (QH-72A)

Name: Press (Hydraulic or Pneumatic) Verification Testing Load Cell (QH-72A)
Brand: all-electronics-online.com
SKU: 682837211
Availability: InStock
Rating: 5 (136 reviews)

Price:	US $ 265/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-71A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Truck Scale, Railway Scale
Defend Grade:	IP66 & IP68
Type:	Column Load Cell

Product Description

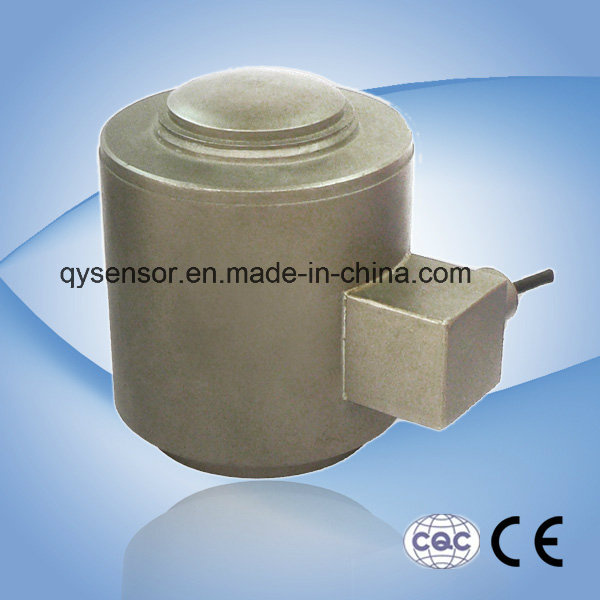

Press (Hydraulic or Pneumatic) verification testing Load Cell (QH-72A)

QH-71A load cells are available in the capacities from10t to 100t.
Alloy steel or stainless steel construction with Column type. Self-restoring rocker pin.
Silicon adhesive sealed, surface nickel-plate ,waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for platform scale, vehicle scales, hanging scale and industrial weighing system.

Features:
Capacity :10 t to 100t.
IP grade: IP67 & IP68
High accuracy.
Column type, alloy steel or stainless steel
Integral installation
Easy installation, reliable performance.

Electrical Connections and Dimensions:

.

Specifications:
capacity	t	10,25,50,100
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.002
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.02
zero unbalance	%FS	± 1.0
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.016
input resistance	Ω	450± 5
output resistance	Ω	480 ± 5
insulation resistance	M Ω	≥ 5000 @100 Vdc
operating temperature range	ºC	-20 ~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.011
temperature coefficient of ZERO	%FS/10ºC	± 0.019

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:12 m
Cable diameter :5 ±0.2 mm
The cable length could be chose by customer's application.

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
