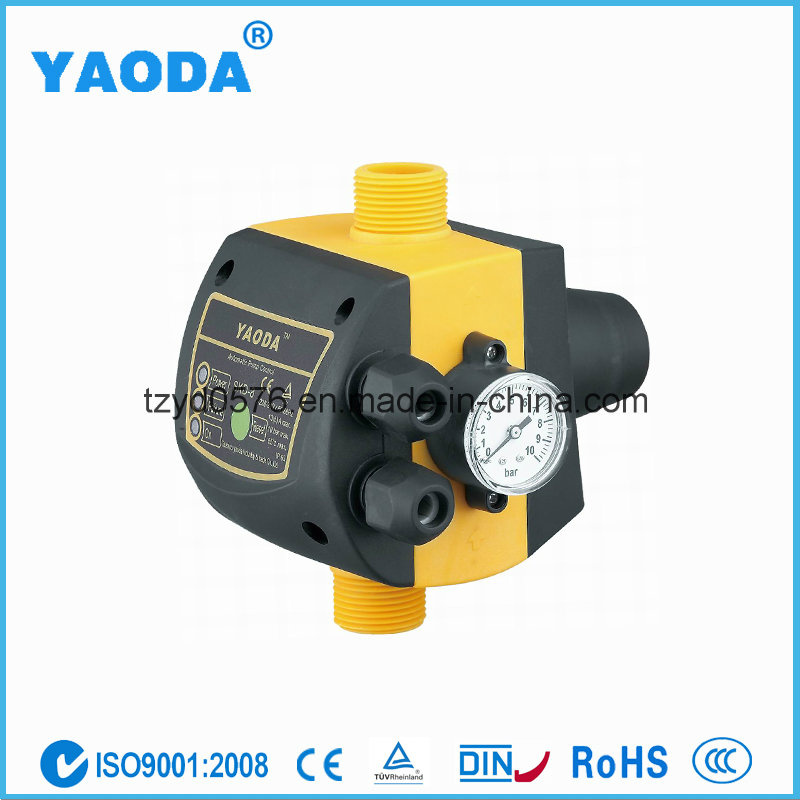

Pressure Controller (SKD-8)

Name: Pressure Controller (SKD-8)
Brand: all-electronics-online.com
SKU: 780016625
Availability: InStock
Rating: 4.4 (123 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SKD-8
Markets:	North America,South America,Southeast Asia,Eastern Asia,Western Europe
Rated Voltage:	110V/230V
Max. Current:	12(6)a
Frequency:	60Hz/50Hz
Starting Pressure:	1.5bar/2.2bar
Type:	Electronic
Application:	Commercial
Explosion-proof Type:	Flameproof
Contact:	Normally Open
Brand:	Yaoda

Product Description

Pressure control
Descriptions:
1.Rated Voltage:110V/230V
2.Max. Current: 16(8)A
3.Frequency: 60HZ/50HZ
4.Max. Power: 1.1KW
5.Joint Screw:G1"
6.Starting Pressure to choose:1.5bar/2.2bar
7.Max Working Pressure: 10bar
8.Protection Grade: IP65
9.Max Operating Temperature: 60
10.Application:Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump

Function:
1. Used for drinking water or non-potable water piping systems.
2. It starts the pump automatically when pressure decrease(taps opening)and stops it when there is no flow(taps closing).
3. Replaced by traditional system with five ways connector, pressure switch, pressure tank and Valves etc.
Stop the pump automatically when water shortage.

OPTIONALS:
1. Color of product appearance
2. Power cable or motor cable can be equipped according to customers' requirement.
3. R1''Plastic Quick Connector

Production and test:

Descriptions:
Rated Voltage	110V/230V
Max. Current	10(6)A
Frequency	60HZ/50HZ
Max. Power	1.1KW/2.2KW
Joint Screw	G1"
Starting Pressure	1.5bar/2.2bar
Max Working Pressure	10bar
Protection Grade	IP65
Max Operating Temperature	60 degree
Application	Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump

Function:
1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running
