Pressure Sensor Series
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
Pressure sensor series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
24VDC |
| Signal Output: |
1~5V |
| Accuracy: |
0.25%Fs |
| Medium: |
Air, Gas, Steam |
Product Description

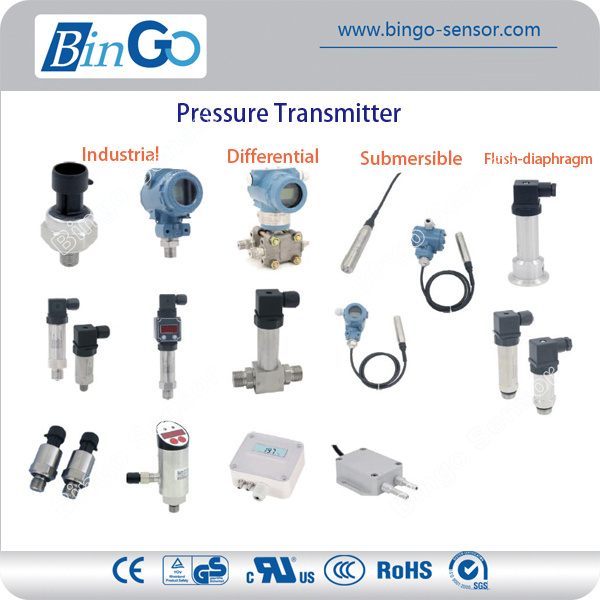

Pressure Sensor Series
Pressure sensor divided into Industrial Pressure Transmitter
Differential Pressure Transmitter
Submersiable Pressure Transmitter
Flush-diaphragm Pressure Transmitterwhich are widely used in the field of aviation, aerospace, national defense, military
project, engineering machinery, railway, urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and
other industrial automation controls.

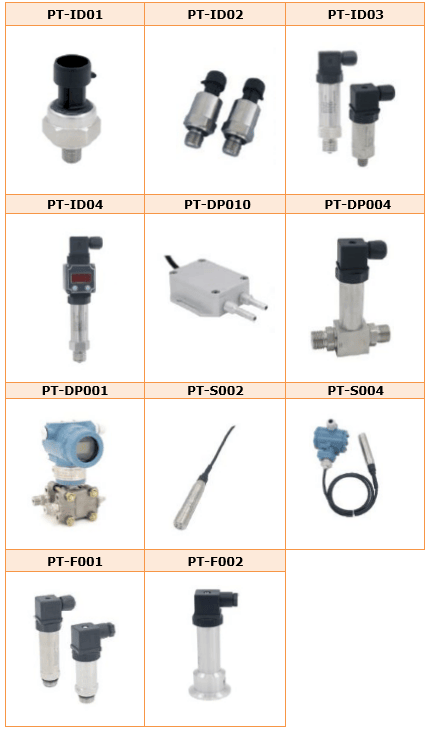

Product Information
Industrial Pressure Transmitter The industrial pressure transmitter use highly reliable ceramic/diffused-silicon piezoresistive pressure sensor than is temperture compensated and laser trimmed for accurate span and offset calibration.It is widely used for mechanical enginnering industry,hydraulic and level measurement,gas tank pressure monitoring,industrial test and control,General industrial applications. |
PT-ID01 Pressure range:0-10 Mpa Power supply:5.0VDC Output:0.5-4.5VDC Medium temperature:-10~80ºC Measuring accuracy:±1.5%FS (1%FS available) Material:cover (Carbon steel,
SS304/316,brass) sensor(ceramic) Pressure coneection:G1/4'',NPT1/8'' customized Protection grade:IP65 | PT-ID02 Pressure range:0-40 Mpa Power supply:5.0VDC Output:0.5-4.5VDC,4-20mA Medium temperature:-10~80ºC Long stability:≤±0.2%FS/year Compensated temperature:-10~70ºC Electrical connection:parker or cable Accuracy:±0.5%FS,±1%FS,±2.5%FS, Material:cover(SS304), sensor(ceramic/SS316) Pressure coneection:G1/4'',NPT1/8'' customized Protection grade:IP65 |
PT-ID03 Pressure range:-0.1~100 Mpa Power supply:24VDC(12~28VDC) Output:4-20mA,0/1~5/10V Medium temperature:-10~80ºC Long stability:≤±0.2%FS/year Compensated temperature:-10~70ºC Electrical connection:Hischman,cable Accuracy:±0.5%FS;±2.5%FS, Material:cover(SS304), sensor(SS316) Pressure coneection:M20x1.5,G1/2'' customized Protection grade:IP65 | PT-ID04 Pressure range:-0.1~100 Mpa Power supply:24VDC(12~28VDC) Output:4-20mA,0/1~5/10V Medium temperature:-10~80ºC Long stability:≤±0.2%FS/year Compensated temperature:-10~70ºC Electrical connection:Hischman,cable Accuracy:±0.5%FS;±2.5%FS, Material:cover(SS304), sensor(SS316) Pressure coneection:M20x1.5,G1/2'' customized Protection grade:IP65 |
Differential Pressure transmitter The differential pressure transmitter used mature and reliable capacitance sensor,combined with advanced micro-processing technology and digital capacitance measurement technology. |
PT-DP010 Pressure range:-100Pa~0kpa~
100Pa...600KPa Medium:non-corrosive gas,air Output signal:4~20mA,0~5V,0~10V,
1-5V,RS485 Power supply:24VDC Accuracy:0.5%F.S.,1%F.S. Compensated temperature:-10~70ºC Working temperature:-40~85ºC Pressure connection:pagodas with M10 thred Electrical connection:cable Protection grade:IP65 | PT-DP004 Pressure range:0~0.01~5Mpa Medium:316L compatible corrosive Output signal:4~20mA,0~5V,0~10mA Power supply:12-28V Accuracy:≤±0.25%FS(typical); ≤±0.5%FS(max) Compensated temperature:-10~70ºC Working temperature:-40~85ºC Connection:M2x1.5,M12x1,
G1/4'',G1/2'' Electrical connection:Hirschman or cable Protection grade:IP65 |
PT-DP001 Media:liquid,gas and steam Pressure range: 0.15~0.5kpa Output:Analog output:4~20mA 0.125~1.5kpa
Digital output:4~20mA/HART 31~180kpa Power supply:12~36VDC 120~680kpa
Accuracy:0.1%FS.,0.2%F.S. 350~2060kpa
Connection:M20x1.5,NPT1/2'',customized 1170~6890kpa
Display:LCD display Protection grade:IP65
Explosion-proof:Ex ia IIC T4,Ex d IIB T5
Wetted material:Flange:316LSS Exhaust valve:316LSS
Hastelloy C-276 Diaphragm:316LSS
Monel Tantalum |
Submersible Pressure Transmitter The submersible pressure transmitter is based on pressure sensor to measure the static pressure through the depth of the liquid. |
PT-S002 Pressure range:0~1...2...3...4...5... 10...500mHO Medium:liquid compatible with SS 316L Output signal:4~20mA,0~5V,0~10V Power supply:24VDC Accuracy:±0.3%FS ≤±0.5%FS,customized Temperature drift coefficient:<=0.02%F.S./ºC Compensated temperature:0~60ºC Working temperature:-10~80ºC Probe material:SS 304 Diaphragm material:SS 316L Cable:waterproof vent cable(PE,PU,Teflon) Protection grade:IP68(Probe) IP65(Junction box) | PT-S004 Pressure range:0~1...2...3...4...5... 10...500mHO Medium:liquid compatible with SS 316L Output signal:4~20mA,0~5V,0~10V Power supply:24VDC Accuracy:±0.3%FS ≤±0.5%FS,
customized Temperature drift coefficient: <=0.02%F.S./ºC Compensated temperature:0~60ºC Working temperature:-10~80ºC Probe material:SS 304 Diaphragm material:SS 316L Cable:waterproof vent
cable(PE,PU,Teflon) Junction box:AI.alloy Protection grade:IP68(Probe) IP65(Junction box) |
Flush-diaphragm Pressure Transmitter Feature:
1.advanced circuit processing technolgy,performance stability,high sensitivity 2.Rang,zero external continous adjustable 3.Configuration flexibility,depend on the need to choose a different configuration 4.No mechanical moving parts,less maintenance 5.Diaphragm isolation process 6.Effectively avoid viscous medium blockage. |
PT-F001 Pressure range:-0.1~0.1......200Mpa Medium:viscous fluid (medical,food field) mud,crude oil etc Output signal:4~20mA,1~5V,0~10V...etc Power supply:24VDC(12~28VDC) Accuracy:±0.3%FS ≤±0.5%FS,customized Temperature drift coefficient:<=0.02%F.S./ºC Compensated temperature:-10~70ºC Working temperature:-30~80ºC Flush-diaphragm material:SS 316L Connection size:M20x1.5,G1/2'',customized Protection grade:IP65 | PT-F002 Pressure range:-0.1~0.1......200Mpa Medium:viscous fluid (medical,wine,milk,food field) Output signal:4~20mA,1~5V,
0~10V...etc Power supply:24VDC(12~28VDC) Accuracy:±0.3%FS ≤±0.5%FS,
customized Temperature drift coefficient: <=0.02%F.S./ºC Compensated temperature:-10~70ºC Working temperature:-30~80ºC Flush-diaphragm material:SS 316L Connection size:1.5''clamp,2.5''clamp, customized Protection grade:IP65 |
Other Type & Our Company
About USOur Advantages and why choose us: Fast delivery & Cheap freight cost and best service team1) Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order2) Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST3) We have ourself forward and we have big discount from forward(long contract)4) We have professional sales team for you, Well-trained and experienced staffs to
answer all your inquires5) After-sale tracking service for all of our clientsthe diversity of paymentL/C, D/A,T/T, Paypal , Western Union, MoneyGram,bank transferOem AcceptedOEM is available; small quantities, mixed bulk orders are also welcome;Good quality and we passed CE&UL&RoSH&REACH certification 1) We have strong production capacity and strict quality control system.
good reputation in the market all over the world.our long time customers always
said our quality is very good.2) Within the warranty period, we will bear all the quality problem of our products3) Beyond the warranty period, we will despatch the replacement parts to help fix
the products, but the parts will be charged;Feedback to our about quality,Service,Market Feedback & Suggestion.And we can do better.
Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.
We owns followed two subsidiary corporations:
Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.
Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.
After several years development, Bingo now becomes a professional supplier for
* Pressure, level and flow control product applied to:
Water supply system
HVAC
Household appliances (refrigerator, Furnace, heater, dish-washing machine,
Water dispenser, food waste disposer and so on)
Steam control system
Vehicle
Oil transporting system
Medical equipment
* Security product
Warning light
Roadway safety
Mining safety
Alarm sire
* Electronic&Electrical product
Tact switch
Micro switch
Toggle switch
Foot switch
Earphone jacket
Industrial plug&socket
With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.
At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.
We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.
Looking forward to a win-win relationship with you!
