Pressure Sensor

Name: Pressure Sensor
Brand: all-electronics-online.com
SKU: 831419635
Availability: InStock
Rating: 4.8 (95 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IP10

Product Description

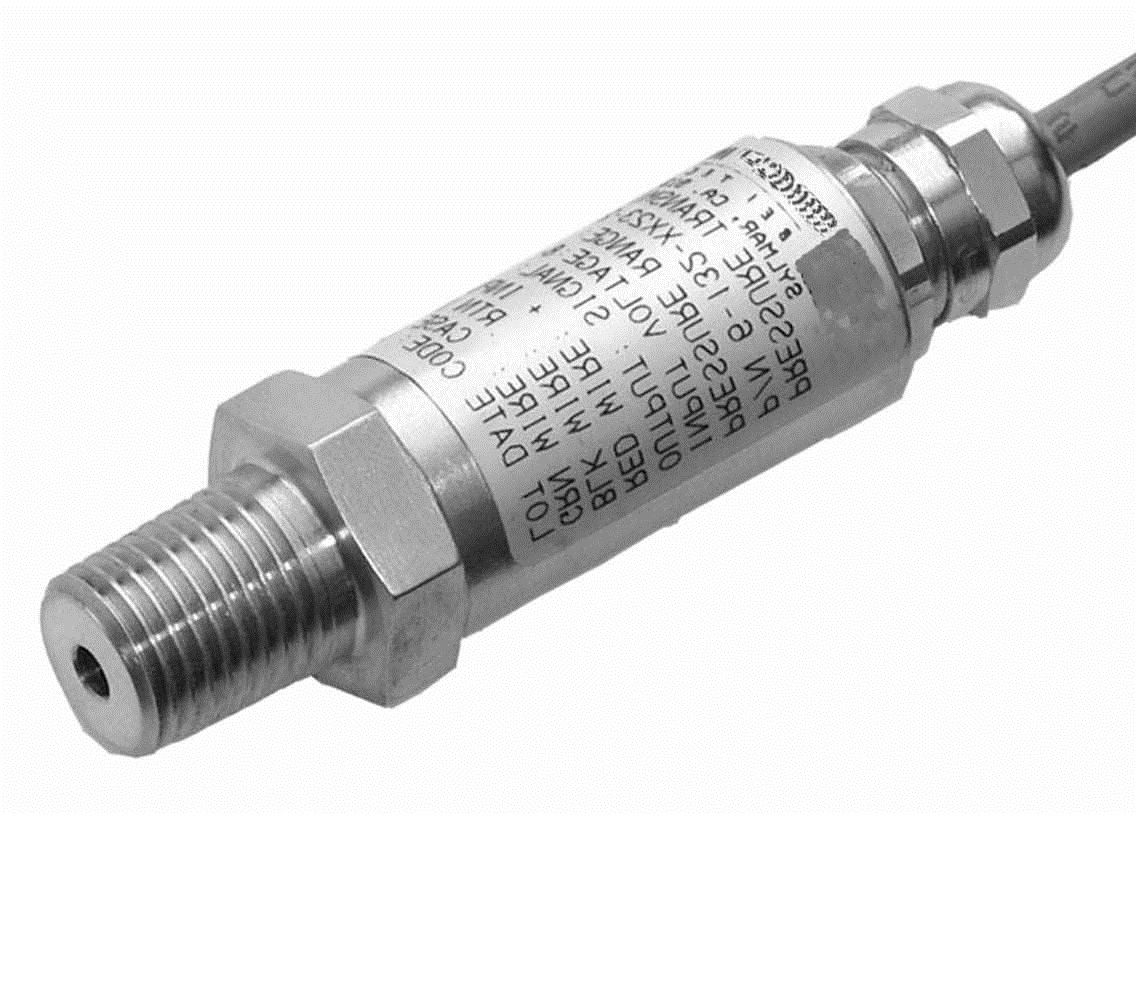

IP10 Piezoresistive Pressure Transmitter

Outline:

Based on piezoresistive silicon technology, IP10 silicon pressure transmitter uses isolated stainless steel diaphragm as sensing element. This product is fully tested by computer automatically, and trimmed by laser for zero and sensitivity in a wider temperature range. Its amplifier circuit is built in stainless steel housing, to transform sensor signal into standard output signal. This transmitter features integrated construction, rigid and robust, high measuring accuracy, good long term stability, and is suitable for pressure measurement in general industry applications.
This product is widely used for pressure measurement and control of petroleum, chemical-industry, metallurgy, power station and hydrology, etc.

Feature:

Power reverse polarity protection
frequency interference resistance
0.5% Overall accuracy
piezoresistive silicon technology
]high accuracy, high resolution
digital chip compensation

Typical applications:

air compressor
refrigeration compressor
injection molding machine equipment
spraying equipment
hydraulic / pneumatic systems\
farm equipment\
energy and water treatment systems

Parameters

*parameter:*	*Min.*	*Typ.*	*Max.*	*Unit*
*Accuracy(include linearity, hysteresis and repeatability*** )	-0.25		+0.25	%Span
*Long stability(1year)*	-0.25		+0.25	%Span
*Total tolerance*	-1.0		+1.0	%Span
*Compensation Temp.*	-20		+85	ºC
*Working Temp.*	-40		+125	ºC
*Storage Temp.*	-40		+150	ºC
*Burst Pressure*	5X			Rated
*Virbration*	-20		+20	g
*Shock*	50			g
*Recycles*	10			million
*Overload Pressure*	2X			Rated
*Weight*	82			grams
*Compatible Media*		304/316
Contact the factory for special model

Input and Output Options:

		Power(V)
Item:	Output	Min	Typ.	Max.
3	0.5~4.5V(ratiometric)	4.75	5	5.25
4	1~5V	8		30
5	4~20mA	9		30
6	0~5	8		30
7	0~10	15		30

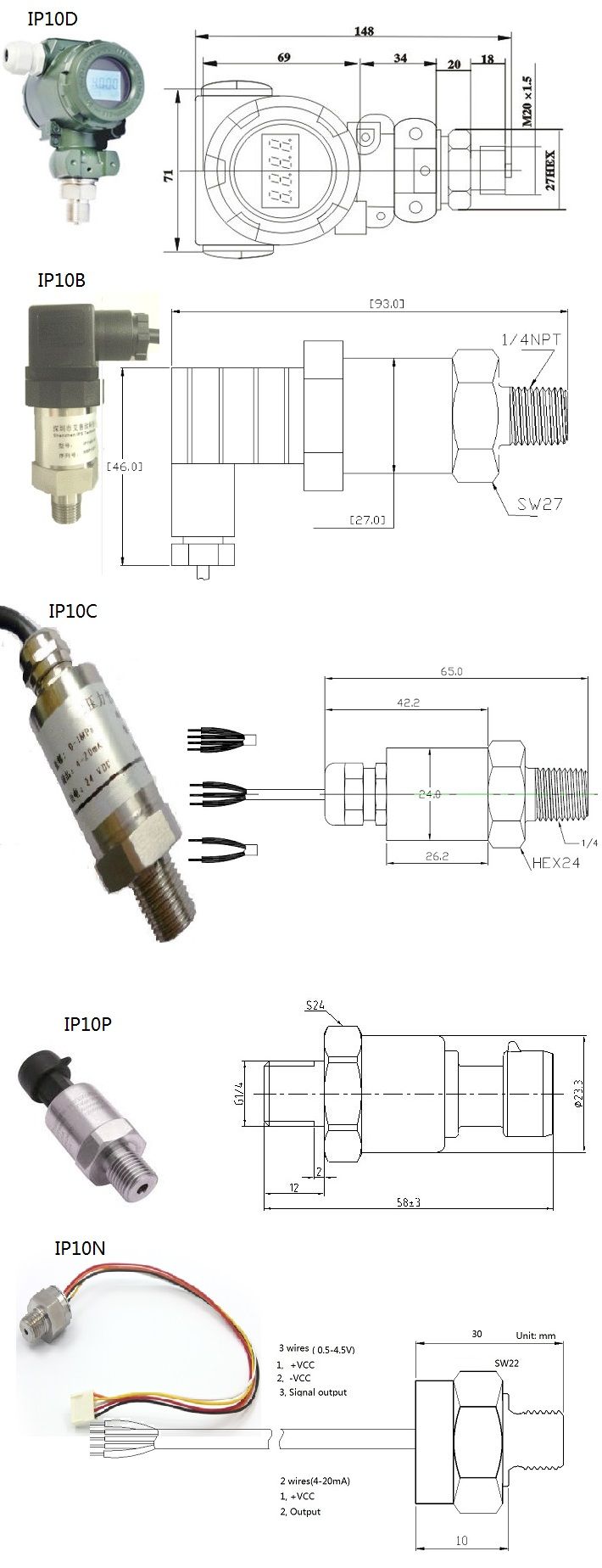

Selection Guide:

*IP10B*	*IPS Pressure Transmitter With Larger* *Hirschmann Connector*
*IP10N*	IPS Pressure Transmitter With Small Size
*IP10D*	IPS Pressure Transmitter With Digital LCD Display,RS485 Output
*IP10C*	IPS Pressure Transmitter With Cable
*IP10P*	IPS Pressure Transmitter With Packard Connector
*IP10W*	IPS Pressure Transmitter With 433M Wireless Transmission
	3	0.5~4.5V(Three-Wire)
	4	1~5V( Three-Wire )
	5	4~20mA( Two-Wire )
	6	0~5V( Three-Wire )
	7	0~10V( Three-Wire )
	9	Output type according the customer request
		M	M20X1.5
		N	1/4-18NPT
		O	M12X1.5
		P	M10X1.0
		Q	1/8NPT
		R	G1/4
		Z	According the customer request
				xxxK	0~xxx KPa
				xxxM	0~xxx MPa
				xxxB	0~xxx Bar
				xxxP	0~xxx Psi
					G	Gauge
					S	Seal
					A	Absolute
IP10B	5	R	-	016B	G
