Pressure Switch for Air Compressor Pressure Controller

Name: Pressure Switch for Air Compressor Pressure Controller
Brand: all-electronics-online.com
SKU: 784072065
Availability: InStock
Rating: 4.9 (107 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-A10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Electronic
Application:	Industrial
Explosion-proof Type:	Non Explosion-proof

Product Description

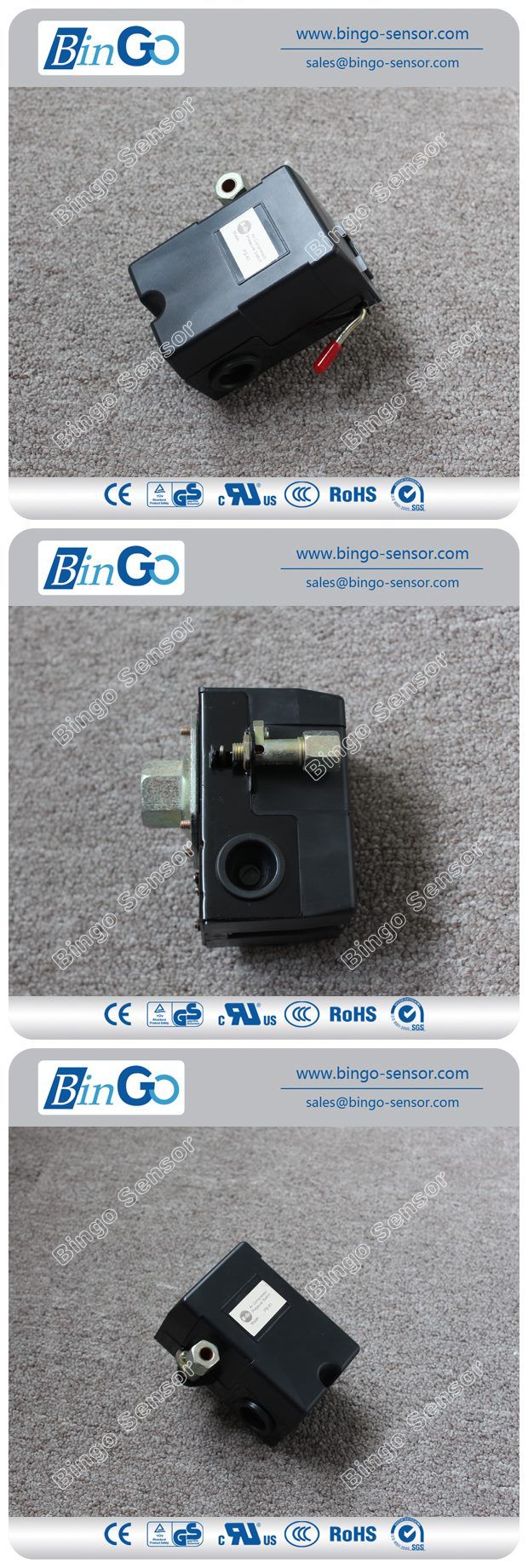

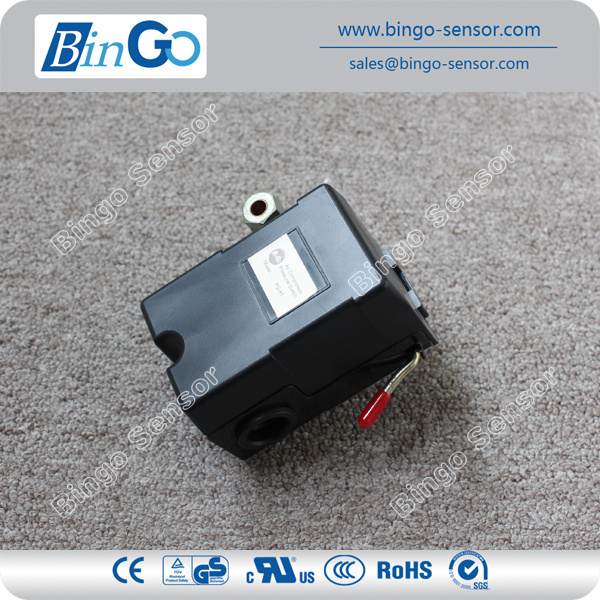

Air Compressor Pressure Switch(PS-A1)

This switch is a pressure-operated electric switch for regulating the tank pressure between two preset values on electrically driven air compressors. It is availabe with an unloader valve, which prevents compressors from starting under load. In addition, an on-off button is applied to cut off the compressore by handwork.

Product Show

Specification
Model:PS-A10
Medium:Air
Contact arrangement:NC
Part:One port/four ports
Connection:NPT1/4'',NPT3/8''Male or Female

MODEL	Medium	Min ON (Cut-In) (PSI)	Max Off (Cut-Out) (PSI)	Differential (PSI)	Factory Setting (PSI)	Electrical Rating		Connection	Contact Arrangement
MODEL	Medium	Min ON (Cut-In) (PSI)	Max Off (Cut-Out) (PSI)	Differential (PSI)	Factory Setting (PSI)	120VAC	240VAC	Connection	Contact Arrangement
PS-A10-1H1	Air	25	100	20-30	50-80	20A	12A	1/4" Male/ Female NPT (1 port)	NC
PS-A10-1H2		35	150	30-40	85-115	20A	12A
PS-A10-1H3		50	175	35-55	110-150	20A	12A
PS-A10-4H1	Air	25	100	20-30	50-80	20A	12A	1/4" Female NPT (4 Port)	NC
PS-A10-4H2		35	150	30-40	85-115	20A	12A
PS-A10-4H3		50	175	35-55	110-150	20A	12A

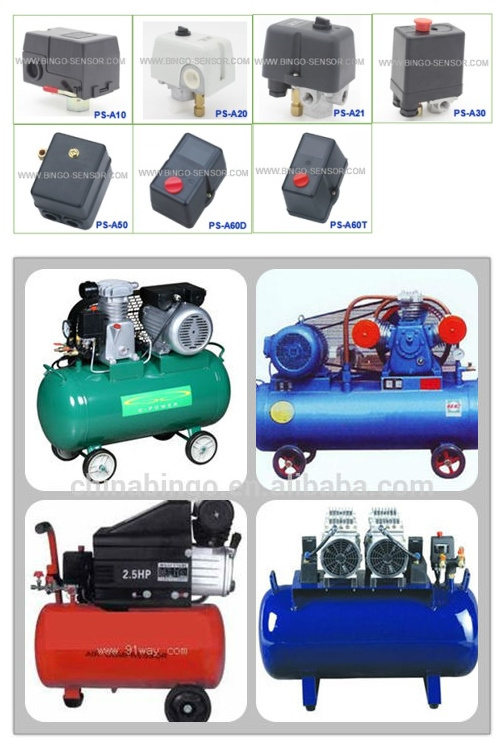

Other Type we can supply & Application

About US

Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.

We owns followed two subsidiary corporations:

Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.

Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.

After several years development, Bingo now becomes a professional supplier for

* Pressure, level and flow control product applied to:

Water supply system

HVAC

Household appliances (refrigerator, Furnace, heater, dish-washing machine,

Water dispenser, food waste disposer and so on)

Steam control system

Vehicle

Oil transporting system

Medical equipment

* Security product

Warning light

Roadway safety

Mining safety

Alarm sire

* Electronic&Electrical product

Tact switch

Micro switch

Toggle switch

Foot switch

Earphone jacket

Industrial plug&socket

With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.

At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.

We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.

Looking forward to a win-win relationship with you!
