| Prod Model: |
PS-M5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contacts: |
Normally Open |
| Application: |
Industrial |
| Type: |
Electronic |
Product Description

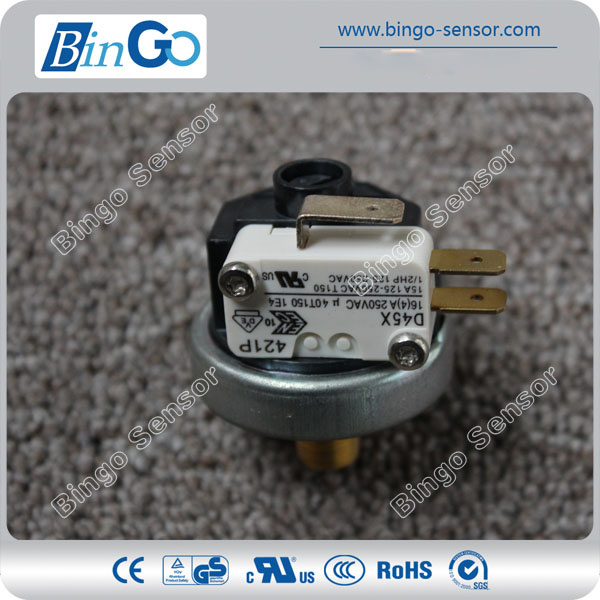

Pressure Switch for Steam Cleaner, Steam Iron
1. Introduction:
PS-M5 pressure switch is designed for control pressure with higher current capacity. It is widely used in steam cleaner, steam sadiron and other pressure control system. It provides SPST or SPDT contact form and switch deadband (also referred to as mechanical differential or hysteresis).
PS-M5 switch utilize high-quality miniature snap-action switches. The switch is diaphragm operated. Diaphragm material can be selected for the operating medium, temperature range and other parameters. During the development of a specification, actuation point can be adjusted by the designer. In production, factory setting is required.
Regarding this type, we have different models for your choosing:

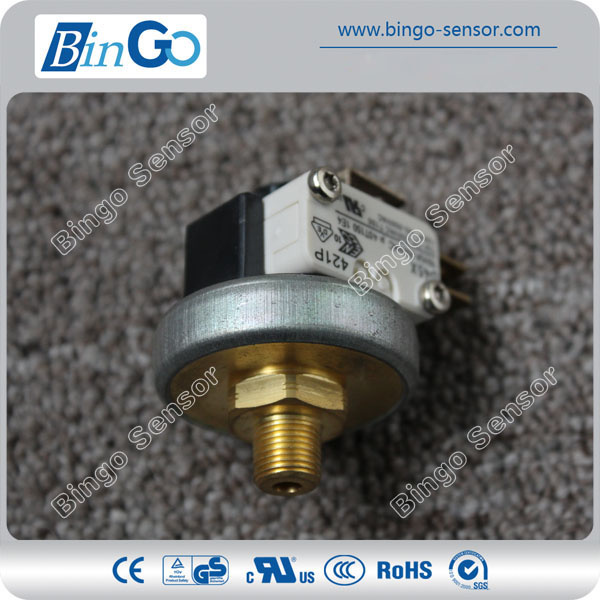

1) Copper Connection:

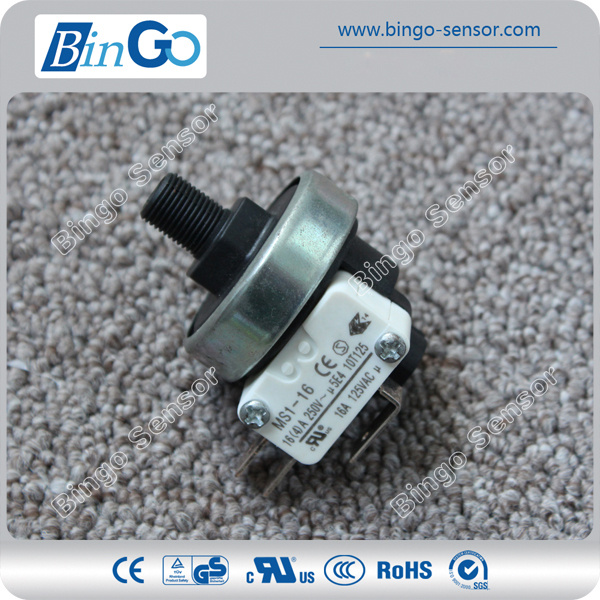

2) Plastic Connection:

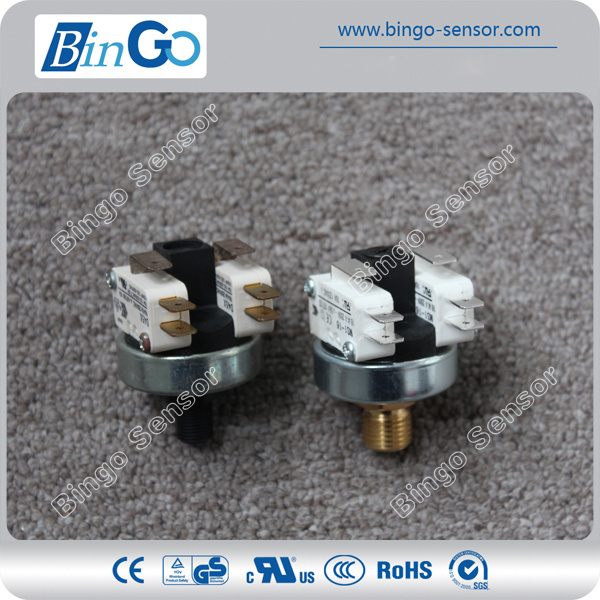

3) Double Microswitch:
Left one is the plastic connection;
Right one is the copper conneciton.
If you want more information about the double microswitch, please search PS-M6 on our company home page.2.Technical Data
Conversion: 1Kgf/cm2=14.2PSI 1Bar=14.5PSI| Model No. | PS-M5 |
| Media | Non hazardous gas, liquid or steam |
| Operating Pressure | 0.2-0.6 bar | 0.5-1.5Bar | 1.2-2.5bar | 1.5-4bar | 3-7bar | 5-9bar |
| Proof Pressure | 3bar | 4bar | 5bar | 6bar | 8bar | 10bar |
| Differential | 0.2±0.1bar | 0.2±0.1bar | 0.2±0.1bar | 0.25±0.15bar | 0.35±0.20bar | 0.6±0.20bar |
| Operating Temperature Range | +85ºC / +125ºC Maximum |
| Contact Arrangement | SPST or SPDT |
| Electric Rating | SPST or SPDT/ Normal Close: 16(4) A-250VAC; Other ratings are available on request |
| Terminals | 6.35 or 4.88mm male Q.C. ; Insulation cover available as necessary |
| Connection | NPT 1/8-27 or NPT1/4-18 male, G1/8 male |
3. Our service: 1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
4. Guarantee:
1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.If you need more information about the product, click here: www.bingo-sensor.com
