| Prod Model: |
WP501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Type: |
Gauge Pressure(G), Absolute Pressure(a), Sealed Pr |
| Process Connection: |
M20*1.5, G1/2 |
| Electrical Connector: |
Cable, Terminal Block |
| Output Signal: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
| Operation Temperature: |
-20~85 Celsius |
| Relay Lifetime: |
220VAC/1A, 24VDC/2A |
| Name: |
Pressure Switch & Pressure Transmitter with Local |
| Switch: |
2 Relay Alarms(Hh, Hl, Ll Adjustable) |
| Measuring Medium: |
Gas, Oil, Liquids, Steam, Pulp |
| Pressure Range: |
0_(-0.2)_(-100kpa), 0---0.2kpa---400MPa |
Product Description

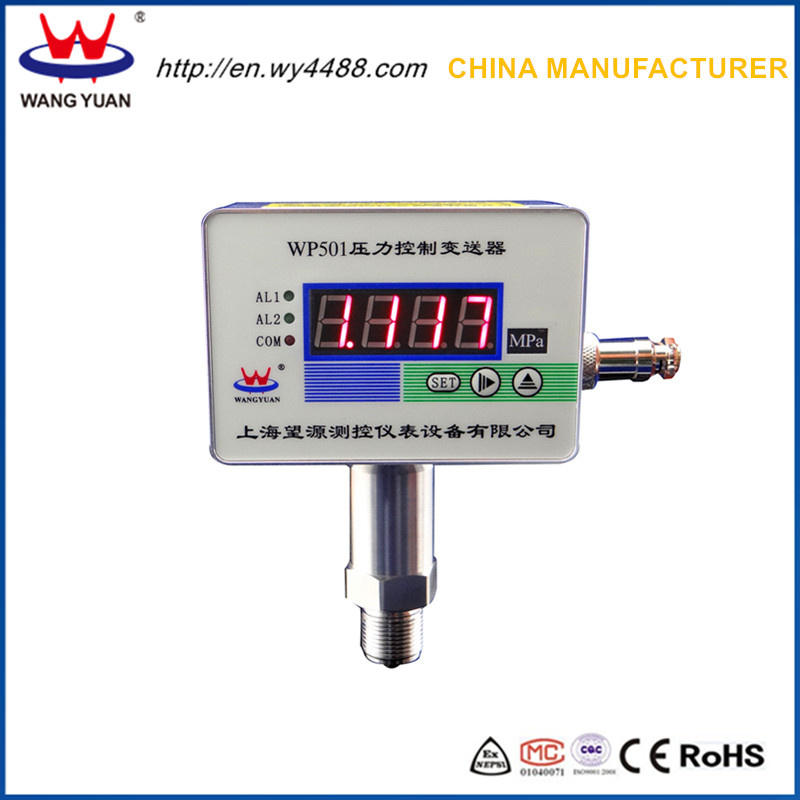

WP501 Pressure Switch & pressure transmitter with local display
Application
This series pressure transmitter can be used to measure & control liquid pressure in:
Chemical industry, Oil & Gas
Power station & Tap water
Paper & Pulp industry
Printing & dyeing industry
Food & Beverage plants
Industrial test and control
Mechanical engineering
Building automation
Description
WP501 product is the intelligent display pressure controller combining with pressure measure, display and control together. With the integral electric relay, the WP501 can do much more than a typical process transmitter! In addition to monitoring the process, the application may call for providing an alarm or shutting down a pump or compressor, even actuating a valve.
WP501 pressure switch is reliable, sensitive switches. Its compact design and combination of set-point sensitivity and narrow or optional adjustable deadband, offers cost-saving solutions for a variety of applications. The product is used flexibly and easily calibrated, can be used for pressure measure, display and control for power station, tap water, petroleum, chemical-industry, engineer and liquid pressure, etc.
Features
Various signal outputs
With local display
Small size, light weight
High stability & reliability
High precision 0.1%FS, 0.2%FS, 0.5%FS
Best choice for Petroleum, power station and etc. Applications
Explosion-proof type: Ex iaIICT6, Ex dIIBT4
Specifications
Pressure range: 0_(-0.2)_(-100kPa), 0---0.2kPa---400MPa.
Pressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N)
Operation temperature: -20~85Degree C
Storage temperature: -40~100Degree C
Switch: 2 relay alarms(HH, HL, LL adjustable)
Reading: 4bits LED (-1999~9999)
Accuracy: 0.1%FS, 0.2%FS, 0.5%FS,
Relay lifetime: 220VAC/1A, 24VDC/2A
Electrical connector: Terminal block or Cable
Ordering guide: WP501-1.0MPa(g)-0.5%FS-4-M20*1.5-Terminal block-4-20mA-24VDC-HL
