Pressure Switch Teb930 Use in Industrial Cooling System

Name: Pressure Switch Teb930 Use in Industrial Cooling System
Brand: all-electronics-online.com
SKU: 727523852
Availability: InStock
Rating: 4.5 (140 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TEB930
Type:	Mechanical
Application:	Vehicles
Explosion-proof Type:	Flameproof
Contact:	Normally Open

Product Description

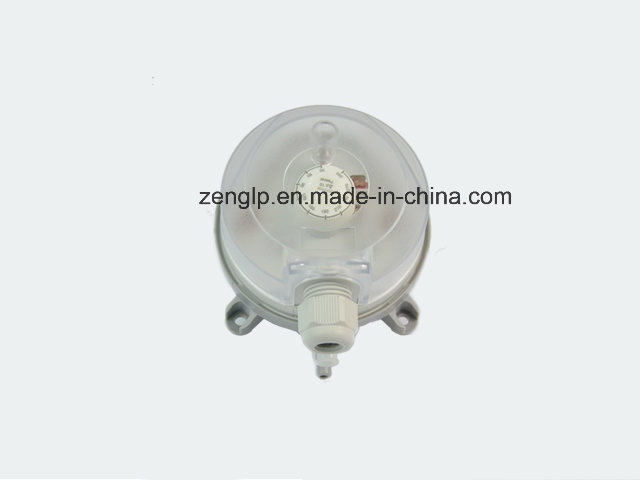

Series TEB930 Pressure Switch

INTRODUCTION
TEB930 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.
SPECIFICATION

Model	TEB930
Media	Air, non-combustible and non-aggressive gases.
Max Operating	10Kpa
Mounting	Diaphragm in any vertical plane
Degree of Protection	IP54(With Cover), IP00(without Cover)
Operating Temperature	ºC to + 85ºC
Range	930.80 20-200Pa 930.81 30-300Pa 930.82 50-500Pa 930.83 200-1000Pa 930.85 500-2500Pa 930.86 1000-4000Pa
Contact Arrangement	SPDT
Electrical Rating	Resistance: initaial:<50 milliohms Current: 1.5A(0.4A)/250V
Terminal	6.3mm×0.8blade or screw terminal
Connection	Φ6.0 mm for tube connection

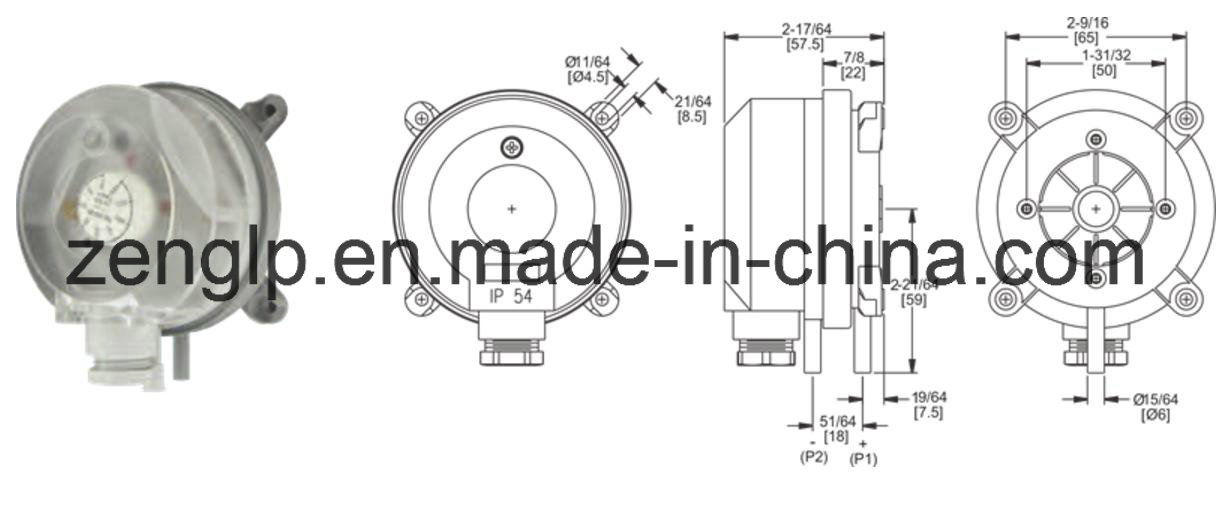

Conversion: 1in/ HO=249Pa 1mbar=100PaDIMENSIONAL DRAWING
