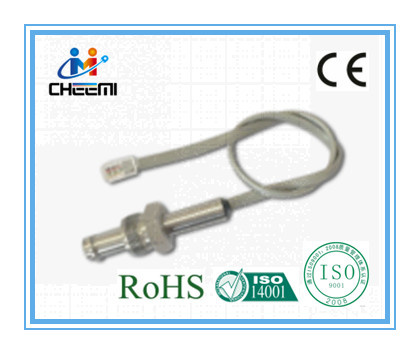

Pressure Transducer Adopt Micro Fused Technology
| Price: |
US $ 0.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
CMPT124G-211 |
| Operating Temperature: |
-20~100ºC |
| Overload Pressure: |
200%Fs |
| Measuring Medium: |
Liquid;Gas |
| Accuracy Grade: |
0.5%Fs |
| Pressure Range: |
0-7000psi |
| Certification: |
Ce RoHS ISO |
Product Description

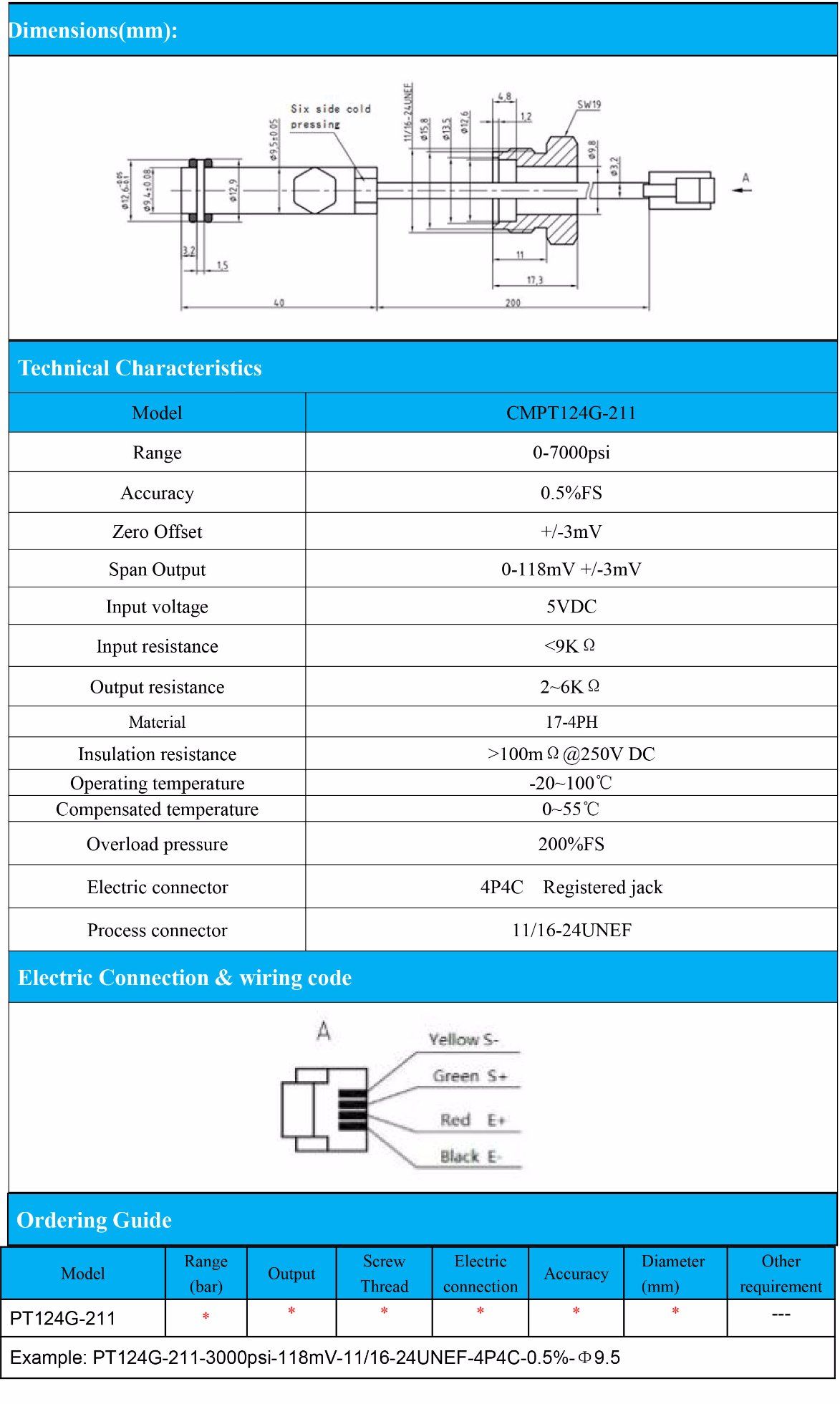

Introduction The PT124G-211 pressure transducer adopt micro fused Technology. Firing the strain gauge with high temperature micro fused technology under 500ºC high temperature on stainless steel 17-4PH transducer elastomer, which will make out electrical signal after shape changing. Amplified by the microprocessor digital compensation amplifying circuit, full intelligent temperature compensated with digital software. Standard purification production process and parameter strictly controlled, to avoid the affect of the temperature, humidity and mechanical fatigue. With the features of high frequency response and widely operating temperature makes sure the long term stability of the pressure transducers in harsh environments. Features: One Piece Stainless Steel Construction medium to high volumes from 6bar to 6000bar Better than 0.5% combined error mV or Amplified or Voltage Outputs Wide Operating Temperature Range ApplicationPumps and Compressors Hydraulic/Pneumatic Systems Automotive Test Systems Energy and Water Management Agriculture - Sprayers and Dusters Refrigeration - Freon and Ammonia Based General Pressure Measurements Specification
