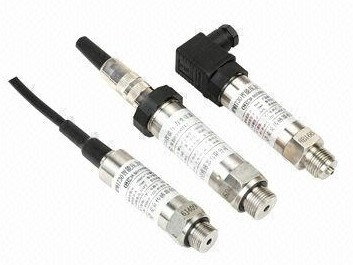

Pressure Transducer, Pressure Sensor

Name: Pressure Transducer, Pressure Sensor
Brand: all-electronics-online.com
SKU: 764524135
Availability: InStock
Rating: 4.9 (20 reviews)

Price:	US $ 100/Piece
Trade Terms:	EXW
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Industrial pressure transducers have highly precision & stability, creep compensation, temperature compensation.
Industrial pressure transducers Features:
1. advanced electronics design.
2. economical and repeatable pressure measurement.
3. good stability and repeatability.
4. easy to calibrate with local indicator.
5. designed specifically for the toughest pressure measurement applications in the worst environments.

Specifications:
1. Pressure Range (MPa): 0.5-200
2. Rated Output: 2.0, 3.33mV/V, 4-20mA, 0-5V, 1-5V, 0-10V
3. Bridge Resistance(Ω): 350
4. Excitation Voltage (VDC): 10 for transducer, 24 for transmitter
5. Combined Error (%F.S): 0.1-1.0
6. Operating Temperature (deg C): -20 To +80
7. Insulation Resistance (MΩ): 1000 (50VDC)
8. Safe Overload (%F.S): 200

9. Connection: process connection: 1/2-20UNF-2A, M14×1.5, M18×1.5 etc.
electrical connection: 5-pin and 6-pin male connector
(Outline size and other screw thread available)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
