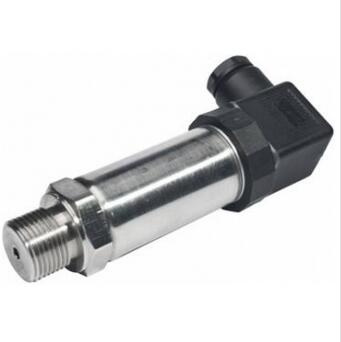

Pressure Transducers Transmitters Pressure Pickup

Prod Model:	SNLP9T
Capacity:	4/5/8/10/15/20
Max.Number Of Verification Intervals:	2500n Max.
Min.Load Cell Verification Interval:	Emax/5000 V Min.
Zero Balance:	2%Fs
Safe Overload:	150%Fs
Ultimate Overload:	300%Fs
Corner Correction:	0.02%Load Value/100mm
Temperature,Operating:	-35to65
Temperature,Compensated:	-10to40
Accuracy:	C3d
Pattern:	Torque
IP Rating:	IP66

Product Description

What is Load cell
A load cell is a sensor or a transducer that converts a load or force acting on it into an electronic signal. This electronic signal can be a voltage change, current change or frequency change depending on the type of load cell and circuitry used. There are many different kinds of load cells. We offer resistive load cells and capacitive load cells.
Resistive load cells work on the principle of piezo-resistivity. When a load/force/stress is applied to the sensor, it changes its resistance. This change in resistance leads to a change in output voltage when a input voltage is applied.
Capacitive load cells work on the principle of change of capacitance which is the ability of a system to hold a certain amount of charge when a voltage is applied to it. For common parallel plate capacitors, the capacitance is directly proportional to the amount of overlap of the plates and the dielectric between the plates and inversely proportional to the gap between the plates.
Calibrating a resistive load cell after amplification
Once the output signal is amplified to a known 0.5 to 4.5 VDC signal, then the user can feed it into a PLC or a Data Acquisition System (DAQ) and infer the applied loads. Once the output signal has been amplified, one can calibrate the load cell by applying known loads and calculating a linear equation that best fits the curve.
 Load cell applied in wighing scales
1.Industries that manufacture and move bulk items utilize weighbridges to measure the flow of goods to and from locations. These weigh stations determine the mass of vehicles, whether empty or loaded, as they pass between state borders.
2.The information acquired is vital to those whose purpose it is to execute commerce values by weight (Trade Approved); or to those checking gross vehicle weights; or even at weigh stations monitored by the government across various roads and highways.
3.Weighbridges utilize multiple wheel shape Load Cells (LFC Family), capped with Flat Load Plates, for accurate measurement readings along the weighing platform.
4.Multiple load cell connected by a junction box, recombination signal display by a indicador and output a analog. RS232 or RS485 transmitter to PC for easy control and analyse.

pressure transmitter (Model SNLP-9D)

Technical Specifications:

Measuring Range	0~10KPa~250MPa	Bridge Resistance	1000 ohms±10%
Accuracy	±0.25%FS; ±0.5%FS	Temperature	-40 ~ 105ºC
Excitation Voltage	24Vdc (9~36Vdc)	Overload Pressure	1.5×FS
Output	4~20mA	Electrical connection	DIN43650
Repeatability	±0.09%FS	Load Resistance	500Ω@10~36 Vdc
Explosion-Proof Grade	Exia2CT4	Process Connection	G1/4; M14×1.5; M18×1.5; M20×1.5; G3/4

Features:
1. Digital Display Pressure Transmitters are made of stainless steel and offer stable structure.
2. The pressure transmitters have high repeatability of 0.09%.
3. The accuracy of 0.25% or 0.5% is available.
4. The pressure transmitters can measure the force and dispaly the data at the same time.

Application:
Digital Display Pressure Transmitters are mainly applied in water treatment, medical apparatus and instruments, and constant-voltage water supply system, etc.

Pressure transmitter(Model SNLP-9H)
High Temperature Melt Pressure Transmitters
Features:
1. High Temperature Melt Pressure Transmitters offer high performance, simple installation, good repeatability and stability.
2. The highest temperature can reach 500ºC.
3. High Temperature Melt Pressure Transmitters equipped with a 6-pin or a 8-pin connector.

Features:

Range	0~10bar~2000bar  0~5MPa~300MPa	Overload	0~10bar~2000bar  0~5MPa~300MPa
Accuracy	±0.5%F.S.	Max .Temperature	LP-9H(320ºC), LP-9H2(400ºC), LP-9H3(500ºC)
Power Supply	24VDC	Electronic connection	6pin or 8pin
Output	4-20mA; 0-5V; 0-10V	Thermocouple	LP-9H3 (pt100; E; J; K)
Repeatability	±0.2%F.S.	Process connection	1/2″-20UNF; M14×1.5  M18×1.5; M22; G3/4 or as required

Pressure transmitter(Model SNLP-9T)

Features:
1. Pressure Transducers/Transmitters are made of 316 stainless steel and offer robust construction.
2. The accuracy of 0.1%, 0.25% or 0.5% is available.
3. Due to the amplifier inside, the output signal of 1.5mV/V, 2mV/V, 4-20mA, 0-20mA, 0-10V or 0-5V is available.
4. The proccess connection and electrical connection can be customized according to request.

Application:
The model LP9T pressure transducer/transmitter is applied in process control system, liquid level measurement, gas compressors, lubrication systems, natural gas production, chemical processing, waste water treatment, pulp & paper processing, oil production, recovery and others.


Technical Specifications:

Capacity	-0.1~200MPa	Operating Environment	-20ºC~75ºC, ≤85%RH
Accuracy	0.1%FS, 0.25%FS, 0.5%FS	Storage Environment	-40ºC~85ºC, ≤95%RH
Power Supply	Transducer:±5~10VDC  Transmitter:±9~36VDC	Safe Overload	150%
Output Signal	1.5mV/V, 2mV/V,  4~20mA, 0~20mA, 0~10V, 0~5V	Ultimate overload	250%
Zero Error	±0.5%FS	Temperature Shift	0.03%FS/C
Full Scale Error	±1.0%FS	Long Stability	≤0.2%FS/year
Compensate Temperature	-10ºC~70ºC	Housing Material	316 Stainless steel
Process Connection	M20×1.5, M12×1, M10×1,1/4NPTG1/2 G1/4 or as request
Electrical Connection	1. Direct cable 1m; 2. M12×1 or others; 3. Hirschman connector

Pressure transmiter(Model SNLP-9Y)
Features:
1. Level Transducers/Transmitters offer high accuracy and stability.
2. Level Transducers/Transmitters have block-proof structure and are suitable for the measurement of viscous substance.
3. Level Transducers/Transmitters are made of high resistant material and are suitable for deep-etching medium.
4. Incorporate & detachable transmitters available.
5. Level Transducers/Transmitters provide high response frequency and various of output signals.
6. Multiple installation methods are available.

Applications:
Level Transducers/Transmitters are ideal for the application of level measurement for water plant, sewage treatment works, towers, water tank, coal mine, and exploration fields, etc.

Technical Specification:

Measuring Range	0 ~1mH2O ~ 200mH2O	Load Resistance	4000 ~  25000 ohms
Accuracy	0.5% F.S.	Overload Pressure	150%
Power Supply	9-36VDC	Temperature Range	-40~125ºC
Output Signal	4-20mA, 0-10V, 0-5V	Electrical Connection	Ventilation cable
Process connection	Throw in type, Flange, thread screw or as required


Electrical Connection:
Output Type: 1~5V, 0~5V and 0~10V

Function	Color
Signal +	Red
Signal -	Black
Excitation +	Green


Output Type: 4~20mA

Function	Color
Excitation +	Red
Excitation -	Black


Ordering Guide:
 SNLP-9Y level transmitter, 1mH2O pressure range, 100cm wire length, throw in type process connection, 4-20mA output, conductive air cable.

Type:	Capacity	Cable Length	Process connection	Output	Electrical Connection
Y= Throw-in  YX= digital indicate + throw-in  YXF= digital indicate + flange	1M=1mH2O=10Kpa  1.5M=1.5mH2O=15Kpa  2M=2mH2O=20Kpa  2.5M=2.5mH2O=25Kpa  3M=3mH2O=30Kpa  5M=5mH2O=50Kpa  10M=10mH2O=100Kpa  25M=25mH2O=250Kpa  35M=35mH2O=350Kpa  50M=50mH2O=500Kpa  100M=100mH2O=1000Kpa	1C=100cm  2C=200cm  5C=500cm  10C=1000cm  25C=2500cm  35C=3500cm  50C=5000cm  100C=1000cm	T= Throw-in Type  F= Flange  M= Thread Screw	4=4-20mA  5=0-5V  6=0/10V	D= Conductive air cable  E= Common cable




With the development of sensor technology, custom design is getting increasingly common. Customizable variables include:
Capacity
Rated output(mV,0-5V,0-10V,0-20mA,4-20mA)
Material(Al,alloy steel and stainless steel)
Dimensions
Electrical connection
Ingress protection class
Working temp.
Other parameters are crucial to your application.

At SINODER,you can find universal products like:
     Compression load cell
     Tension compression load cell
     Strain gauge load cell
     Button load cell
     Torque transducer
SINODER is also an expert in customized force transducers like:
     Load pins for overload protection
     Bolt sensor for fastening force monitoring
And other tailor-made force sensors for auto industry,robotics,medical equipment,etc.

With experienced engineers in force sensor and load cell application area, SINODER knows exactly what you need after you talk to us.Being expert in strain gauge based load cell manufacturing technology and custom-made service, we are confident in providing the most suitable products to meet your applications perfectly.

Quality,we not only know its importance,but also act in the same way. Lifelong technical support starts the moment you contact us.

  Send us an inquiry,we'll get back with solutions!
