Price of High Voltage Power Cable
| Price: |
US $ 9.9-15.4/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
power cable |
| Product Name: |
Price of High Voltage Power Cable |
| Type Of Company: |
Manufacturer |
| Number Of Cores: |
1, 2, 3, 4, 5, 2+1, 3+2 |
| Related Voltage: |
0.6/1kv; 8.7/15kv; 12/20kv; 21/35kv; 26/35kv |
| Cable Type: |
with Armoring or Without Armoring |
| Product Model: |
VV, Vlv, Yjv, Yjlv, Yjv22, Yjlv22, Yjv32, Yjlv32.. |
| Standard: |
GB-T12706-2008; IEC 60502 |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Country Of Origin: |
Professional Manufacturer of 25 Years in China |
| Advantages: |
High Quality, Competitive Price, Fast Delivery |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Wire Core Material: |
Aluminium |
| Brand: |
Rmjt |
Product Description
Price of high voltage power cable
1.Information of armoured cable
a, Number of cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
b,Construction:
Conductor: Solid or stranded copper
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
c,Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
d,feature
1). Rated power-frequency voltage Uo/U: 0.6/1KV.
2). Max. permissible continuous operating temperature of conductor: 70ºC
3). Max. shortcircuit temperature of the conductor shall not exceed: (5S maximum duration) 160ºC
4). The ambient temperature under installation should not below 0ºC
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
2.Standard of armoured cable
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
3.The Rated Voltage(kv) of armoured cable
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
4.Application of armoured cable
1)These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.
2) For laying in ground along route with large difference of level able to bear external mechanical forces.
5.Technical data of armoured power cable| N-BV | PVC-insulated fire-resisting cable(wire) |
| N-BV V | PVC-insulated and sheathed fire-resisting cable(wire) |
| N-V V | PVC-insulated and sheathed fire-resisting power cable(wire) |
| N-V V22 | PVC-insulated,steel tape armored,PVC-sheathed fire-resisting power cable |
| N-VV32 | PVC-insulated,fine steel wire armored,PVC-sheathed fire-resisting power cable |
| N-YJV | XLPE-insulated and PVC sheathed fire-resisting power cable |
| N-YJV22 | XLPE insulated, steel tape armored, PVC sheathed fire-resisting power cable |
| N-YJV32 | XLPE insulated, fine steel wire armored, PVC sheathed fire-resisting power cable |
| N-YJY | XLPE insulated and PE (polyolefin) sheathed fire-resisting power cable |
| N-YJY23 | XLPE insulated, steel tape armored, PE (polyolefin) sheathed fire-resisting power cable |
| N-YJY33 | XLPE insulated, fine steel wire armored, PE (polyolefin) sheathed fire-resisting power cable |
| N-KVV | PVC insulated and PVC sheathed fire-resisting control cable |
| N-KVV22 | PVC insulated, steel tape armored, PVC sheathed fire-resisting control cable |
| N-KVV32 | PVC insulated, fine steel wire armored, PVC sheathed fire-resisting control cable |
| N-KVVP2-22 | PVC insulated, copper tape collectively screened, steel tape armored and PVC sheathed fire-resisting control cable |
| N-KYY | PE insulated and PE sheathed fire-resisting control cable |
| N-KYJY | XLPE insulated and PE (polyolefin) sheathed fire-resisting control cable |
| N-KYJY23 | XLPE insulated, steel tape armored, PE (polyolefin) sheathed fire-resisting control cable |
| N-RV | PVC insulated fire-resisting flexible cable |
| XLPE Type | Name | Application |
| Cu | Al |
| Conductor | Conductor |
| YJV | YJLV | XLPE Insulated, PVC or PE Sheathed Power Cable | For lying indoor, channel and underground. Unable to bear external mechanical force, but bear the traction force during lay. |
| YJV | YJLV |
| YJV22 | YJLV22 | XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable | For laying indoor, tunnel, channel and underground. Able to bear external mechanical force, but unable to bear large pulling force. |
| YJV23 | YJLV23 |
|
| YJV32 | YJLV32 | XLPE Insulated, Fine Steel Wire Armored, PVC or PE Sheathed Power Cable | For lying in shave with large difference of level. Able to bear external mechanical force, and moderate pulling force. |
| YJV33 | YJLV33 |
| YJV42 | YJLV42 | XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
ISO9001:2008, OHSAS, CCC, TUV Certifications.

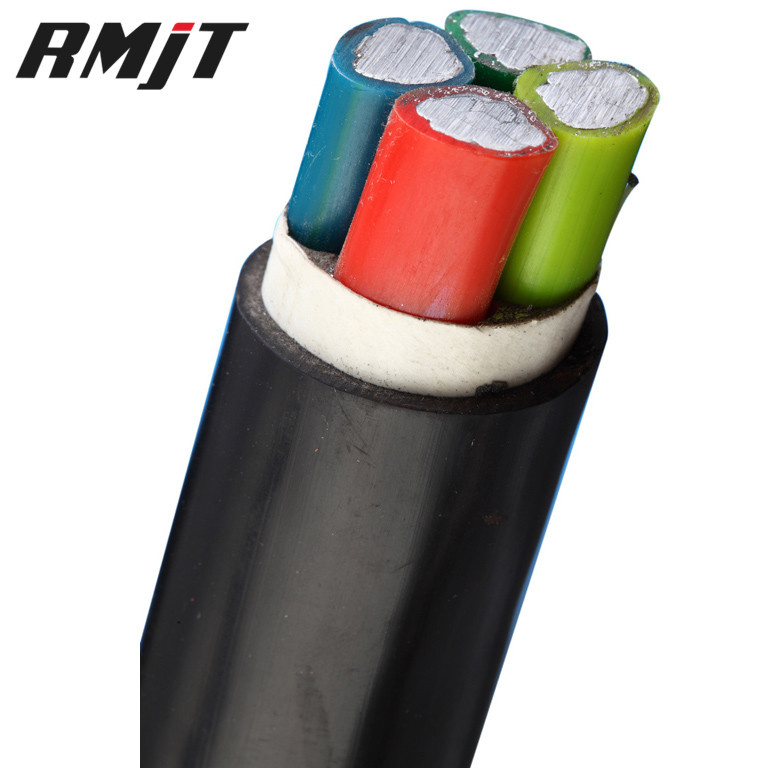

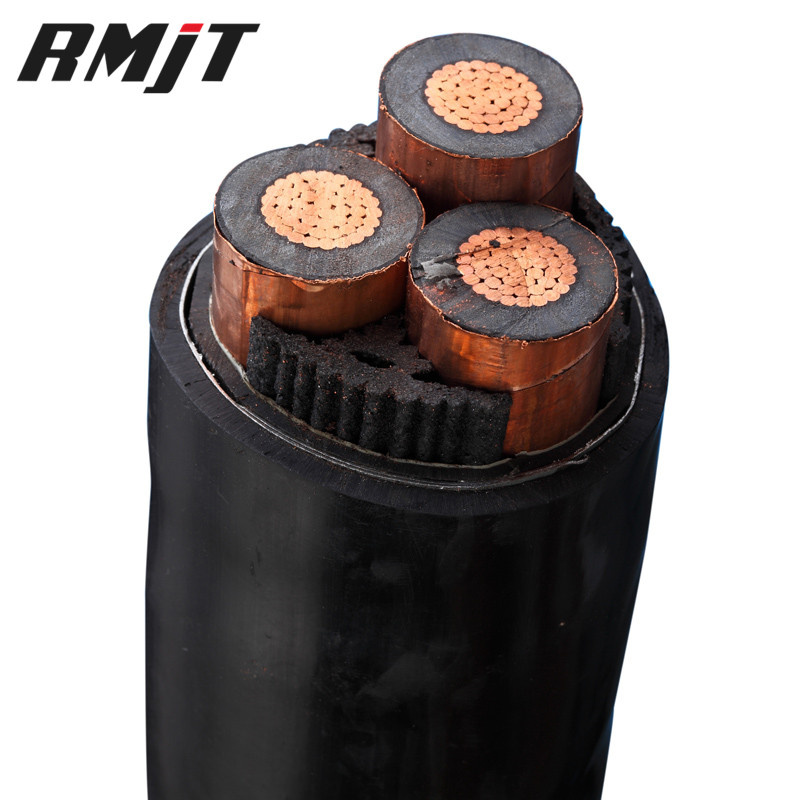

Product Pictures:
Packing and Delivery:

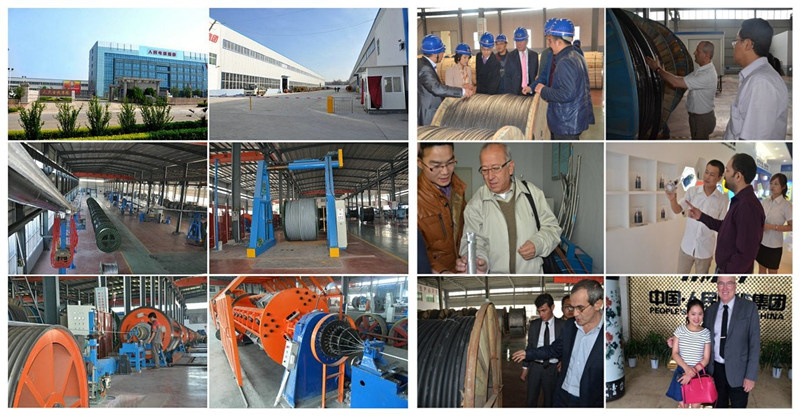

Our Company:
People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
FAQ:
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3)How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4)What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Contact Information:
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
If you have any questions, please contact me, I will reply you as soon as possible.
Welcome your inquiry.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
