Printed Circuit Board Assembly (PCB) with Electronic Components
| Price: |
US $ 1-10pcs |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
5pcs |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
XN-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB: |
PCB Board |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Complex |
| Flame Retardant Properties: |
HB |
| Brand: |
OEM/ODM |
Product Description
Factory introduction STHL Technology Co.,Ltd was founded in 2010. Business scope mainly include PCB manufacturing, PCB assembly ,ODM ,OEM ;The design and manufacture of stencils and fixture. And other services on the PCB.To provide customers with a one-stop solution from consulting, design, manufacturing, PCBA,to the assembly. The basic concept of our business is "Honesty service"and "Long-term development".Pay attention to establish long-term and close cooperation with the customers and suppliers.
We firmly believe that customer growth is the premise and basis of our growth.Our growth will also provideSupport and power for the growth of customers.PCB board Capability| Items | Normal standard | Ultimate |
| Material | FR-4;High TG FR-4;CEM-3;CEM-4 | Al-base |
| Layer NO. | 1-20 | 40 |
| Board Size | 50mm*50mm-560mm*640mm | 35mm*50mm |
| Board Thickness | 0.4mm-4.0mm | 0.3mm-6.0mm |
| Thickness Tolerance | ±10% | ±7% |
| Min Hole Size | 0.2mm | 0.15mm |
| Copper Thickness | 18um-105um | 18um-420um |
| Copper Plating hole | 18um-30um | 18um-40um |
| Min Trace Width | 0.1mm | 0.75mm |
| Min Space Width | 0.1mm | 0.75mm |
| SMD Pitch | 0.4mm | 0.4mm |
| BGA Pitch | 0.6mm | 0.6mm |
| Min Annular Ring | 0.07mm | 0.05mm |
| Register Tolerance | 0.05mm | 0.025mm |
| Solder Mask Color | green;blue;black;red | white; yellow |
| Peelable Mask | 0.3mm | 0.5mm |
| HASL Thickness | 2.5um | |
| lead Free HASL | 2.5um | |
| Immersion Gold | Nickel:47um Au:0.05um | Nickel:7um Au:0.2um |
| OSP Thickness | 0.2-2.5um | |
| Outline Tolerance | CNC:±0.1mm; V-CUT:±0.1mm; Punching:±0.15mm | |
| Impedance Control | ±10% | ±7% |
| Warpage | Less than 1% | Less than 0.7% |
| certificate | ISO9001;TS16949 | |
PCB Assembly Capability| Quantity | Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
| Type of Assembly | SMT,Thru-hole, DIP |
| Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
| Components | Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement |
| Bare Board Size | Smallest:0.25*0.25 inches
Largest:20*20 inches |
| File Formate | Bill of Materials
Gerber files
Pick-N-Place file |
| Types of Service | Turn-key,partial turn-key or consignment |
| Component packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same day service to 15 days service |
| Testing | Flying Probe Test,X-ray Inspection AOI Test |
Our advantages :1) High-end, Small volume and Various kinds of PCBA service offered;
2) Speedy, Flexible and one-stop service in PCBA;
3) Assembly and Purchasing service offered, all components are promised
purchased 100% from Original factories or their pointed agents;
4) Transparent quotation,cost and benefit are detailedly opened to customer;
5) With professional Engineers and Long-term successful experience in cooperating with customers inland and overseas,all new projects can be developed faster and better than expected;

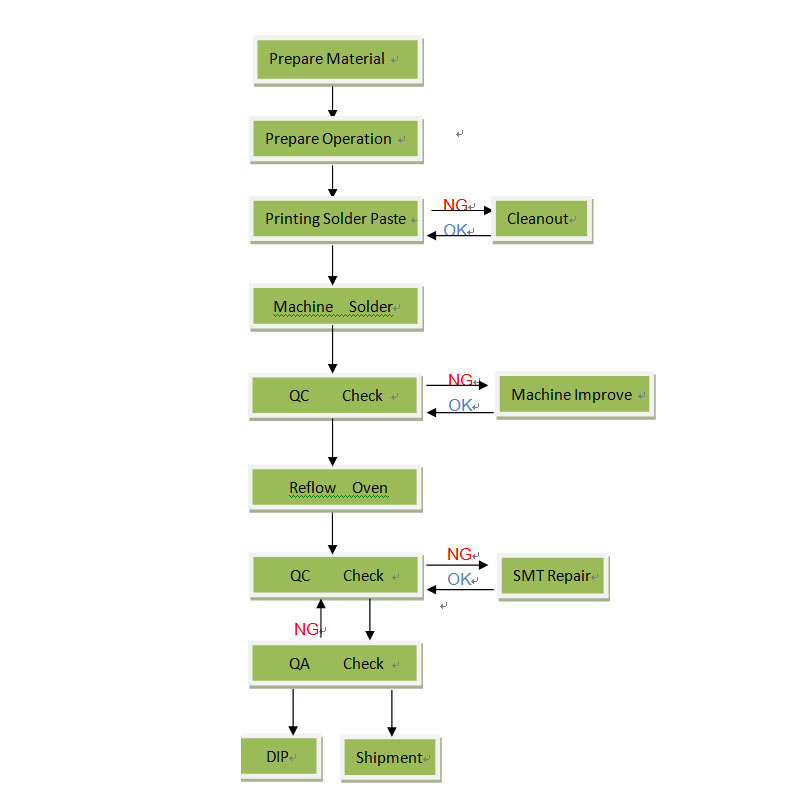

6) With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production, all PCBAs we made are more reliable. Our SMT Flow Chart
Product detail

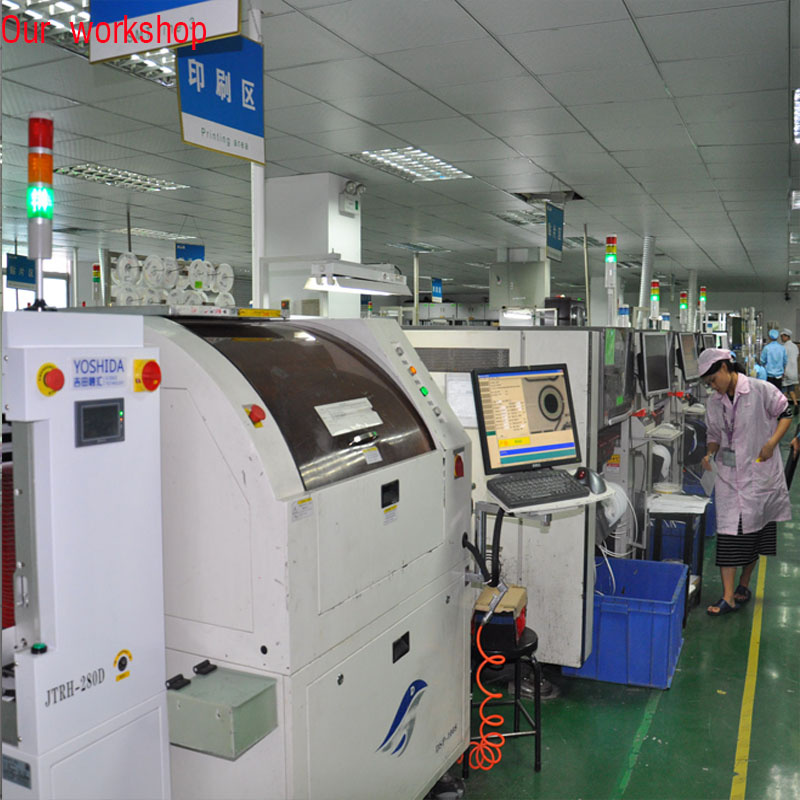

Our factory view
To become your long-term partner,we must continue to provide TOP quality products and TOP services for you !!
Shenzhen STHL Technology Co., Ltd.
A professional PCB& PCBA design, product, sale manufacturer, established in 2010. Specially dedicate to Security, Industrial Automation, Medical, Household Appliance PCBA and Electrics products finished assembly. Currently with 100 workforce and covering 2, 000 square meters area, our products exported worldwide including North American, & South American, European Countries and Asia, etc.
We have 4 strong and professional, R&D engineers, 6 SMT production lines 2 DIP production lines, 1 final assembly production lines and many advanced testing instruments. Our current annual production capacity is more than 4, 000, 000 PCS PCBA (circuit control board) and 100, 000 sets electronic end products assembly. Relying on high quality, high efficiency, and prompt way, we can provide various, multi-layer, customized PCBA, Final assembly and tailor-made service to our customers. Small and medium orders. Also be welcome.
Main Products:
1. PCBA OEM
PCBA Application:
*Telecommunication PCBA: Exchange Board, Router, GPRS
*Automation PCBA: Automatic Refueling Machine, Automatic Cutter, Inverter, Electricity Monitoring System, Frequency Conversion Controller, Electric Welding Machine, Elevator, Escalator
*RFID technology: Active RFID, Passive RFID
*Power Supply and New Energy: Industrial Power Supply, LED Driving Power, Solar Power System, Wind Power System
*Medical Equipment PCBA: Color Doppler Ultrasound Instrument, Medical Monitor
*Financial PCBA: Currency count machine, POS machine, Teller machine.
*Household Appliance PCBA: Coffee Maker, Blender, Soybean Milk Machine, Cleaner, Hair Straightener, Electric Toothbrush.
2. PCBA ODM: Embedded Industrial Control Product, Power Supply, Household Appliance Control Board
3. End Electronic Products Assembly and relative EMS
Metal, Plastic, Rubber or other material industrial design services.
Charnas has sophisticated R&D management system, Quality Assurance System, Supply Chain Management System, and Environmental Protection Management System. Based on our solid smartpower, considerate service, excellent core technology, added value service to customers, we have been approved and trusted by our home and abroad well -known customers. Company to pursue' Keep Searching for Development Innovation, Insist on keeping Improving, Charnas is on its way to be the best electronic products EMS company in the world.
As a developing enterprise, we are willing to do everything possible for customers, work together to create a new win-win situation continuously with you.
